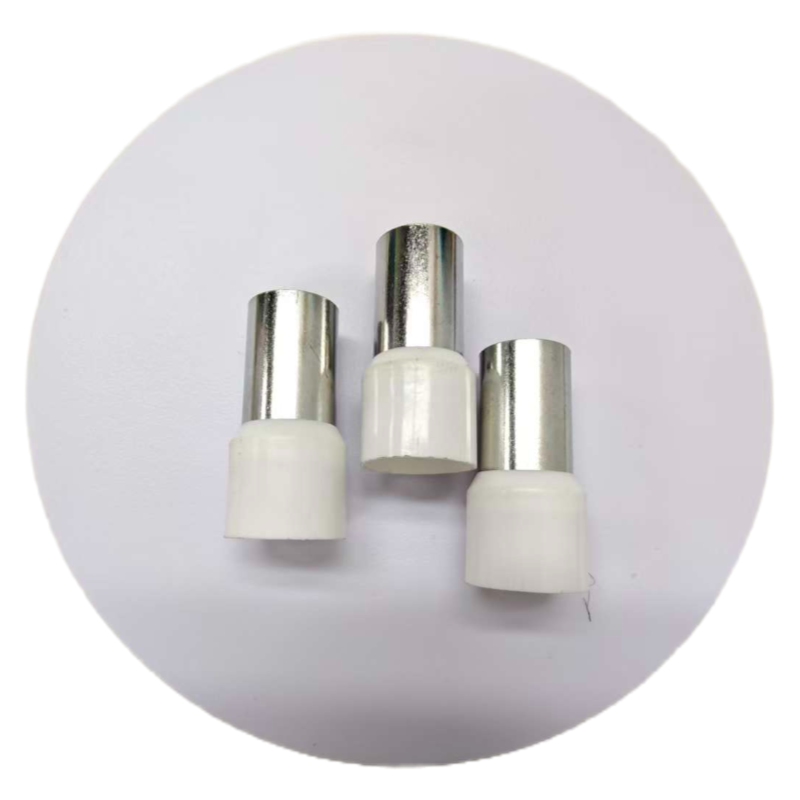

Premium white insulated cord end terminals from Xluig. Made of 99.9% T2 copper with flame-retardant Nylon insulation. Ideal for 0.5mm² and 0.75mm² wiring. Compliant with DIN & RoHS standards.
Dimensions
Data Overview
Item No.
Wire Range (mm²)
Wire Range (AWG)
Color System
Pin Length L1 (mm)
Barrel I.D. d1 (mm)
Insulation I.D. d2 (mm)
LT05006
0.5
22
WHITE (DIN/T)
6
1.0
2.6
LT05008
0.5
22
WHITE (DIN/T)
8
1.0
2.6
LT05010
0.5
22
WHITE (DIN/T)
10
1.0
2.6
LT07506
0.75
20
WHITE (W)
6
1.2
2.8
LT07508
0.75
20
WHITE (W)
8
1.2
2.8
LT07510
0.75
20
WHITE (W)
10
1.2
2.8
Product Features & Engineering Logic
Technical Features (F)
Core Advantages (A)
Key Benefits for Professionals (B)
Seamless T2 Copper Body
Ensures maximum electrical conductivity and prevents barrel splitting during heavy crimping.
System Stability: Eliminates power loss and prevents localized overheating in control panels.

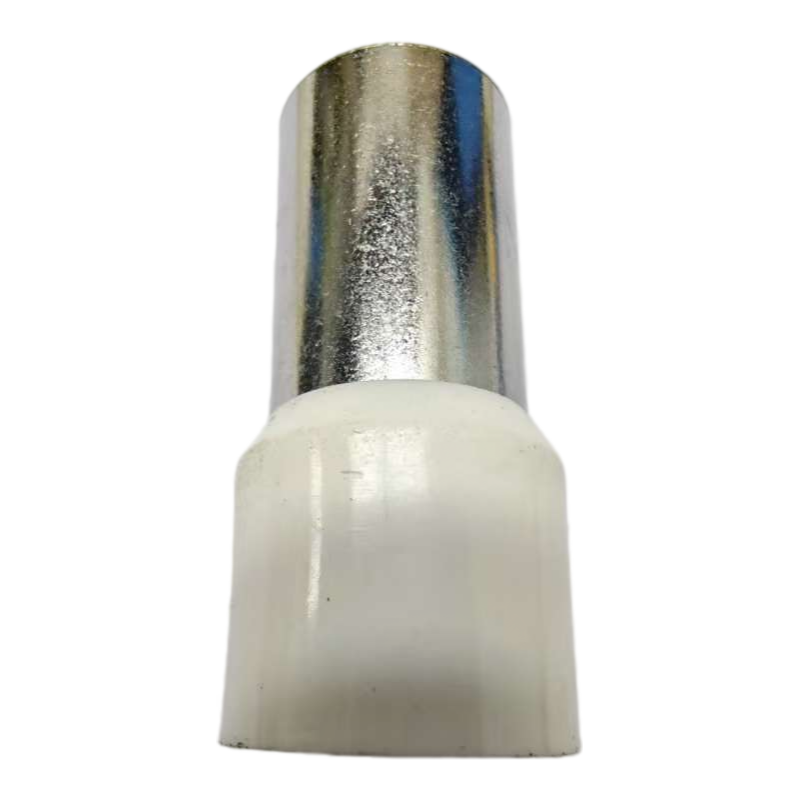

V0 Flame-Retardant Nylon
Provides high dielectric strength and maintains structural integrity in high-temperature zones.
Enhanced Safety: Reduces fire hazards and ensures long-term insulation reliability in industrial environments.

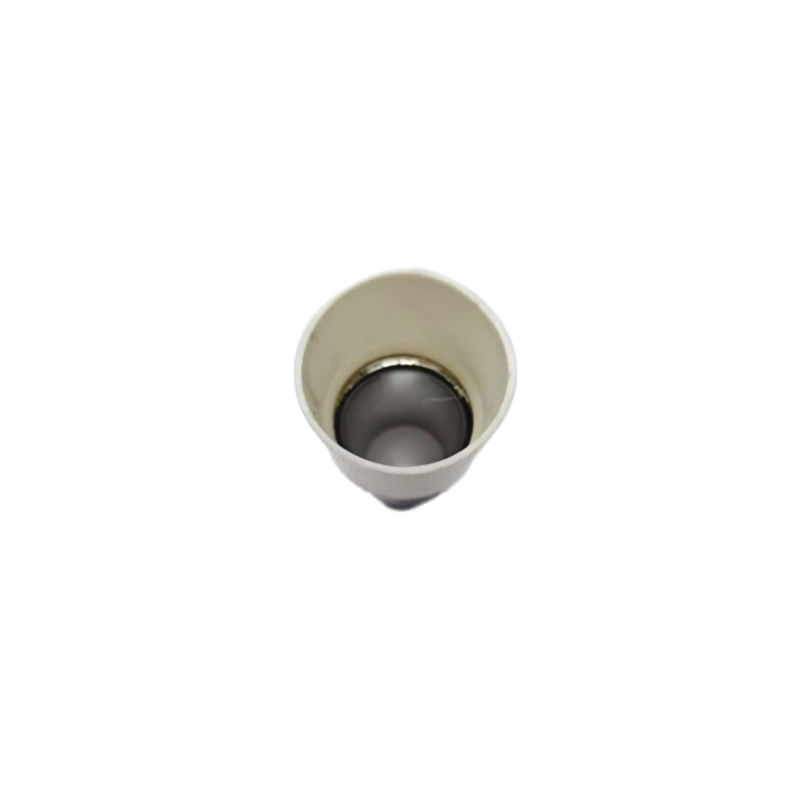

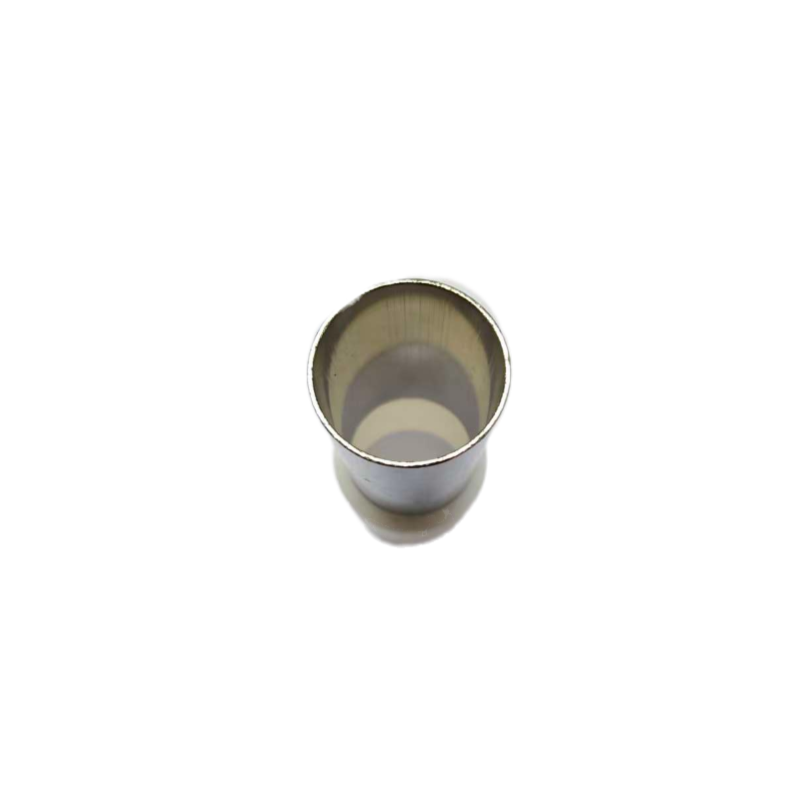

Advanced Funnel Entry
Guides the fine wire strands into the copper barrel effortlessly without spreading or fraying.
Installation Efficiency: Speeds up the wiring process by 30% and ensures every strand is securely terminated.
Micro-Thick Tin Coating
Acts as a robust chemical barrier against oxidation, moisture, and aggressive atmospheric pollutants.
Durability & Longevity: Prevents contact degradation, ensuring a maintenance-free connection for the equipment’s lifespan.
FAQs
Q: Why do some white ferrules fit 0.5mm² while others fit 0.75mm²?
A: This depends on the color-coding system being used. In the DIN and T-systems, White is the standard color for 0.5mm² (22 AWG) wires. However, in the W-system, White is used for 0.75mm² (20 AWG) wires. Xluig provides terminals for all major global systems to match your specific project requirements.
Q: Is Nylon insulation better than PVC for these white terminals?
A: Yes, Nylon (Polyamide 66) is significantly superior for industrial applications. It has a higher melting point, better resistance to chemicals/oils, and does not become brittle over time like cheap PVC. For professional control cabinets, Nylon ferrules are the industry standard for reliability.
Product Attributes
Property
Details
Industry
Industrial Fastener
Brand Name
XLUIG (Kunshan Xinluan New Material Technology Co., Ltd)
Place of Origin
Jiangsu, China
Certificate
ISO 9001:2015 Certified
Thread Size
Customized sizes available
MOQ
5,00 Pieces
OEM / ODM
Support (Based on technical drawings)
Samples
Available upon request
Supply Ability
Service Items
Details & Specifications
Packaging
Small boxes, plastic bags, bulk cartons, and wooden pallets
