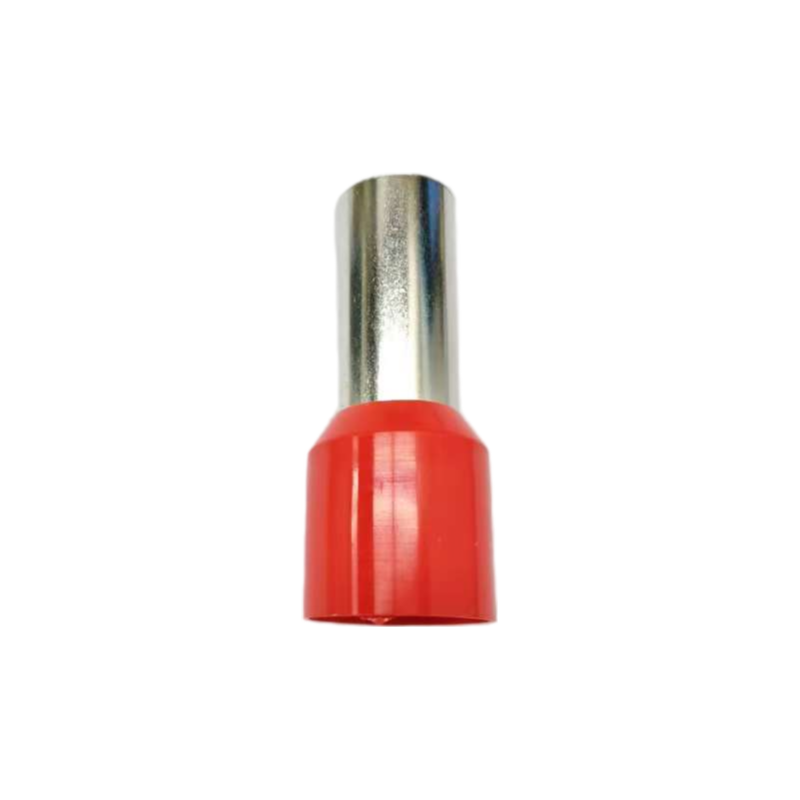

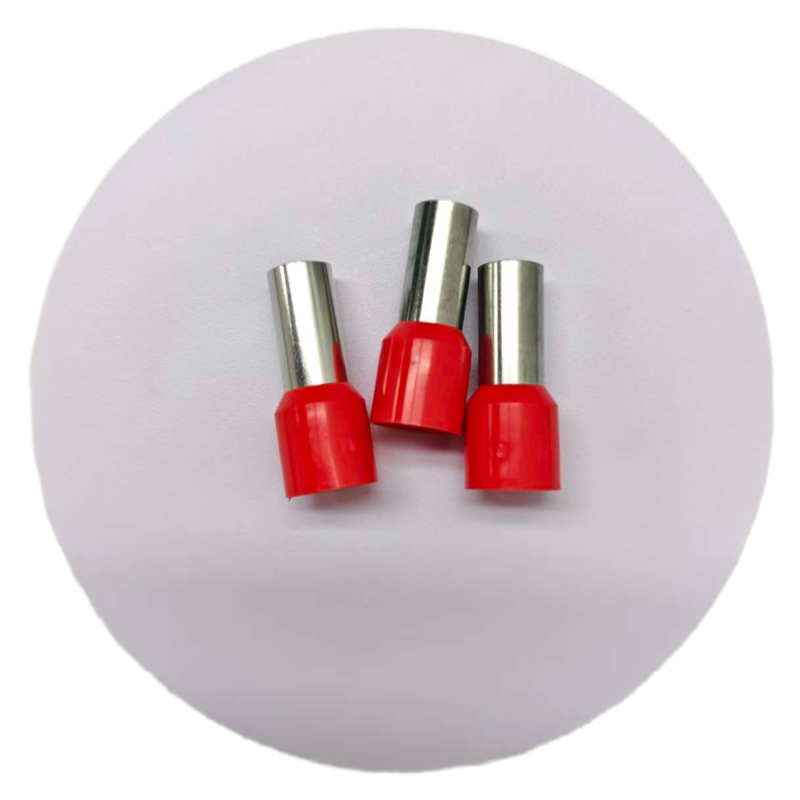

Buy high-conductivity Red Insulated Cord End Terminals (1.0mm²) directly from the manufacturer. Xluig wire ferrules feature T2 copper and flame-retardant Nylon insulation. Perfect for DIN standard industrial wiring.
Dimensions
Data Overview
Item No.
Wire Range (mm²)
Wire Range (AWG)
Color (DIN)
Pin Length L1 (mm)
Barrel I.D. d1 (mm)
Insulation I.D. d2 (mm)
LT10006
1.0
18
Red
6
1.4
3.0
LT10008
1.0
18
Red
8
1.4
3.0
LT10010
1.0
18
Red
10
1.4
3.0
LT10012
1.0
18
Red
12
1.4
3.0
Product Features & Engineering Logic
Performance Pillar
Engineering Feature (F)
Technical Advantage (A)
Professional Benefit (B)
Electrical Integrity
Pure T2 Copper Barrel
Provides the lowest possible electrical resistance and maximum current capacity.
Operational Safety: Prevents voltage drops and localized overheating in high-density industrial circuits.
Safety Standard
Nylon Insulation (V0 Rated)
Offers superior thermal stability and dielectric strength compared to cheap PVC sleeves.
Risk Mitigation: Ensures long-term reliability in harsh environments, preventing short circuits and fire hazards.
Connection Quality

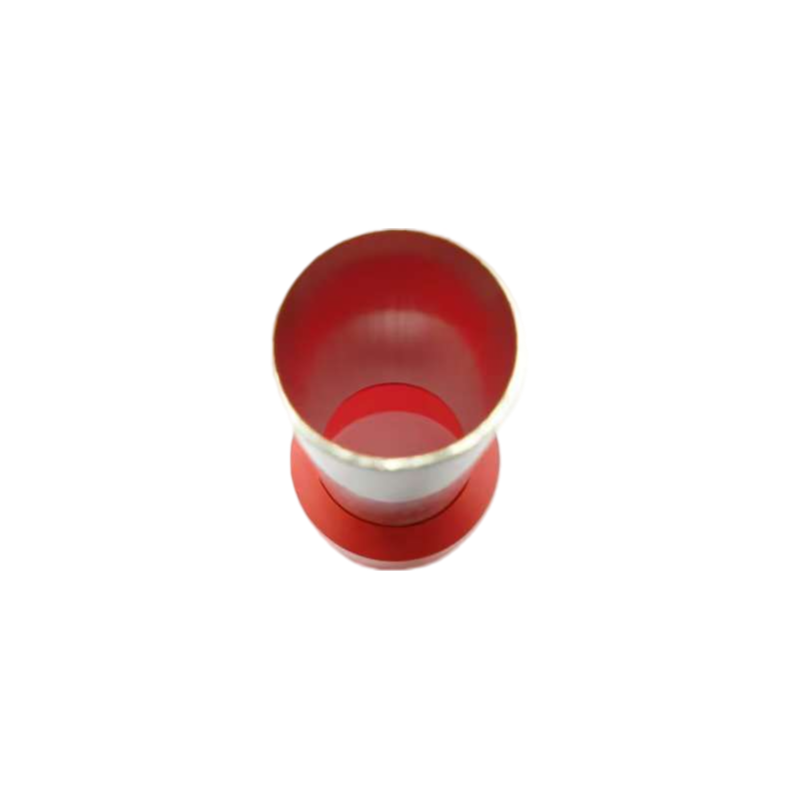

Precision Tin Plating
Creates a robust chemical barrier against moisture, salt spray, and atmospheric pollutants.
Zero Maintenance: Maintains a gas-tight, corrosion-free connection for the entire lifespan of the equipment.
Installation Speed

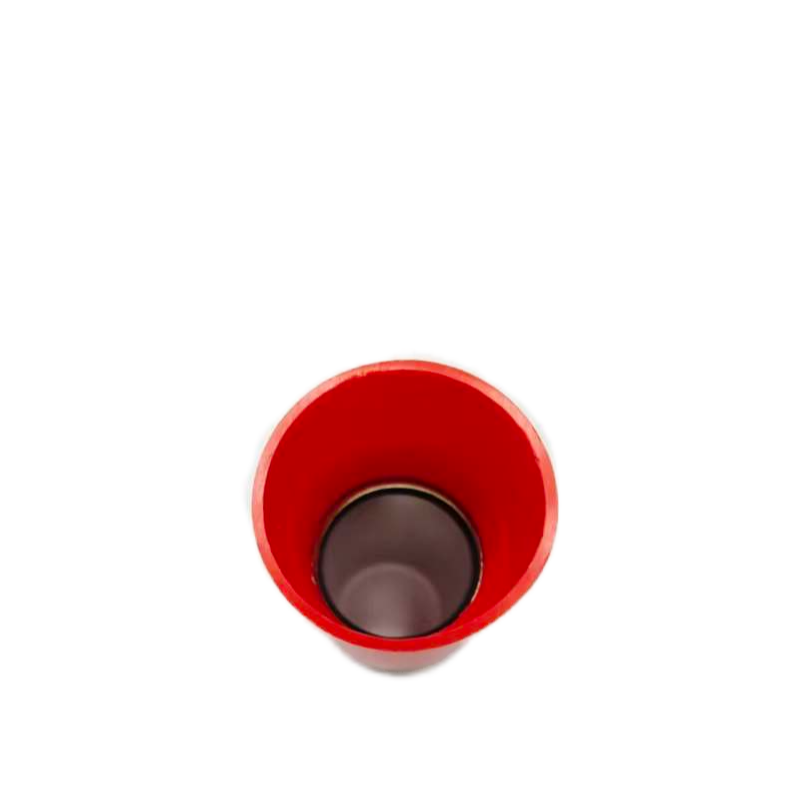

Ergonomic Funnel Entry
Guides multi-stranded wires into the barrel smoothly without strand spreading or damage.
Lower Labor Costs: Speeds up the assembly process by 30% and eliminates the risk of stray strands.
FAQs
Q: Why is the color Red standard for 1.0mm² wire ferrules?
A: According to the DIN 46228 international standard, color-coding is used to help installers quickly identify the correct wire gauge. Red is universally recognized for 1.0mm² (AWG 18) wires in the DIN system. Xluig ensures strict adherence to these color codes to prevent wiring errors in professional control systems.
Q: Can I use these red ferrules in high-vibration environments?
A: Yes. When properly crimped with a professional tool, the T2 copper barrel of Xluig ferrules creates a “gas-tight” cold weld with the wire strands. This provides excellent mechanical pull-out resistance and ensures the connection remains stable even in machinery subject to constant vibration.
Product Attributes
Property
Details
Industry
Industrial Fastener
Brand Name
XLUIG (Kunshan Xinluan New Material Technology Co., Ltd)
Place of Origin
Jiangsu, China
Certificate
ISO 9001:2015 Certified
Thread Size
Customized sizes available
MOQ
5,00 Pieces
OEM / ODM
Support (Based on technical drawings)
Samples
Available upon request
Supply Ability
Service Items
Details & Specifications
Packaging
Small boxes, plastic bags, bulk cartons, and wooden pallets
