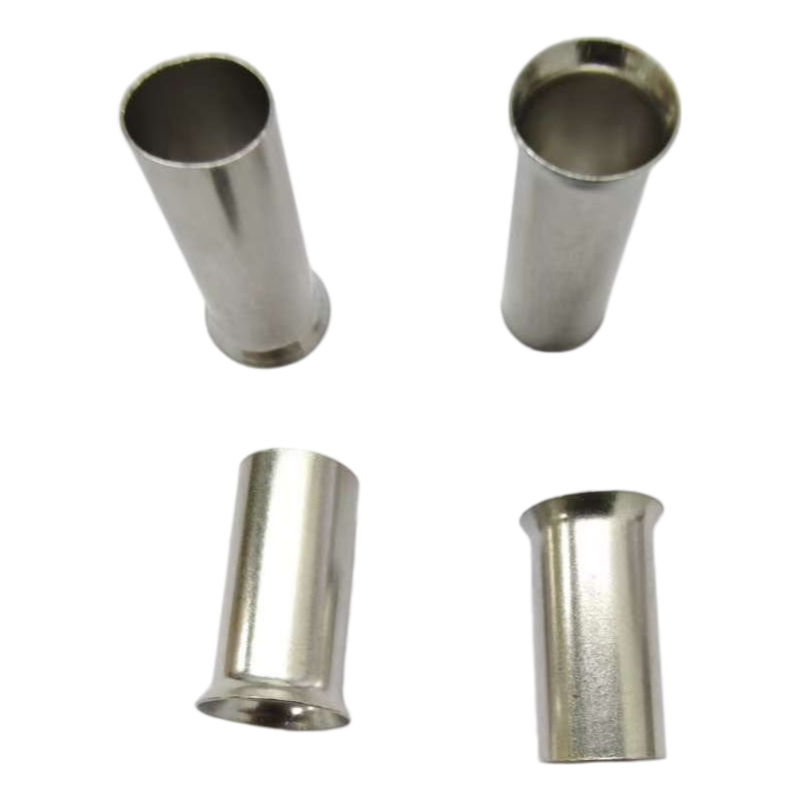

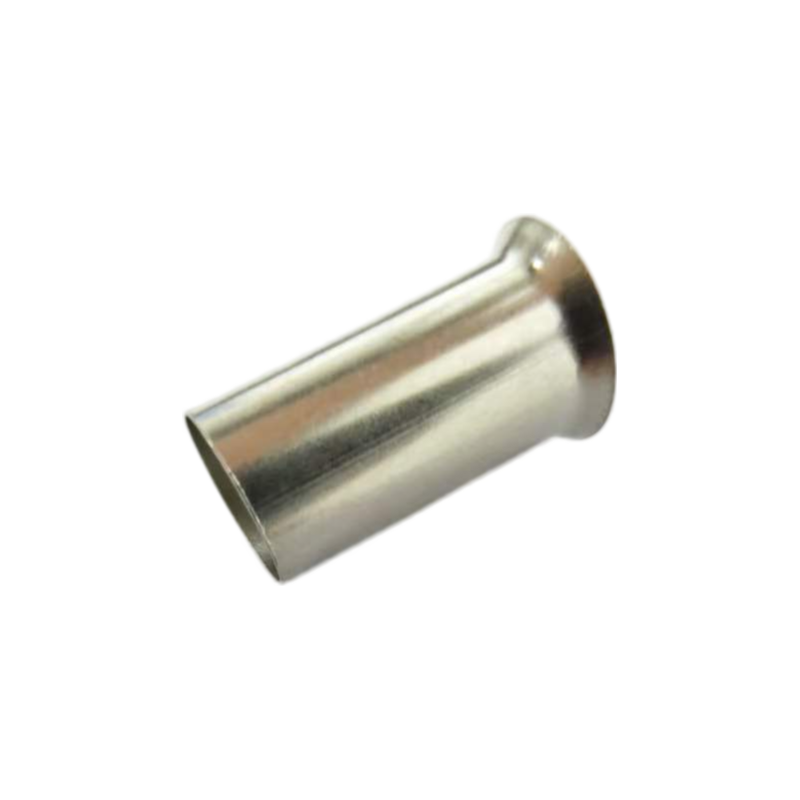

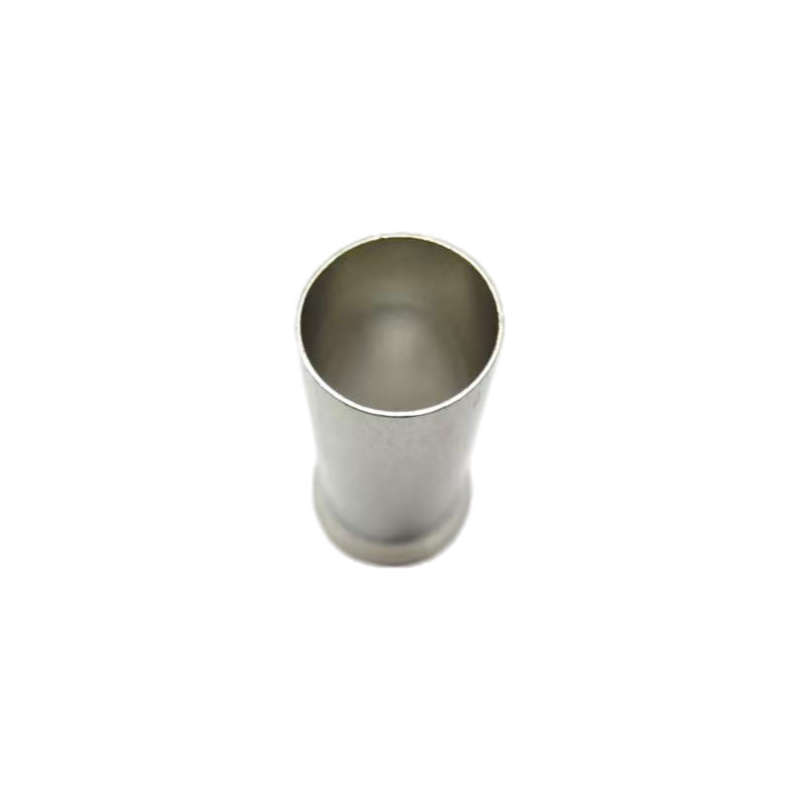

Non-Insulated Cord-End Terminals | Seamless T2 Copper Wire End Sleeves – XLUIG
PRODUCT PARAMETERS
Description
Shop high-quality Non-Insulated Cord-End Terminals at XLUIG. Forged from 99.9% T2 electrolytic copper with tin plating. Ideal for space-saving wire termination in high-density industrial panels.
Product Features & Engineering Logic
| Engineering Feature | Technical Advantage | Operational Value |
| Seamless Forged Copper Tube | Guarantees a 360-degree uniform compression without the structural weakness of a welded seam. | Connection Integrity: Prevents wire fraying and ensures a permanent, gas-tight bond that won’t fail under stress. |
| High-Purity Tin Coating | Acts as a chemical barrier that stops copper from reacting with oxygen or moisture. | Long-Term Reliability: Eliminates the risk of high-resistance contact points, reducing fire hazards and maintenance costs. |
| Slim Non-Insulated Profile | Minimizes the terminal’s physical footprint, allowing cables to be bunched closer together. | Cabinet Efficiency: Enables engineers to design more compact control panels and electrical cabinets without overcrowding. |

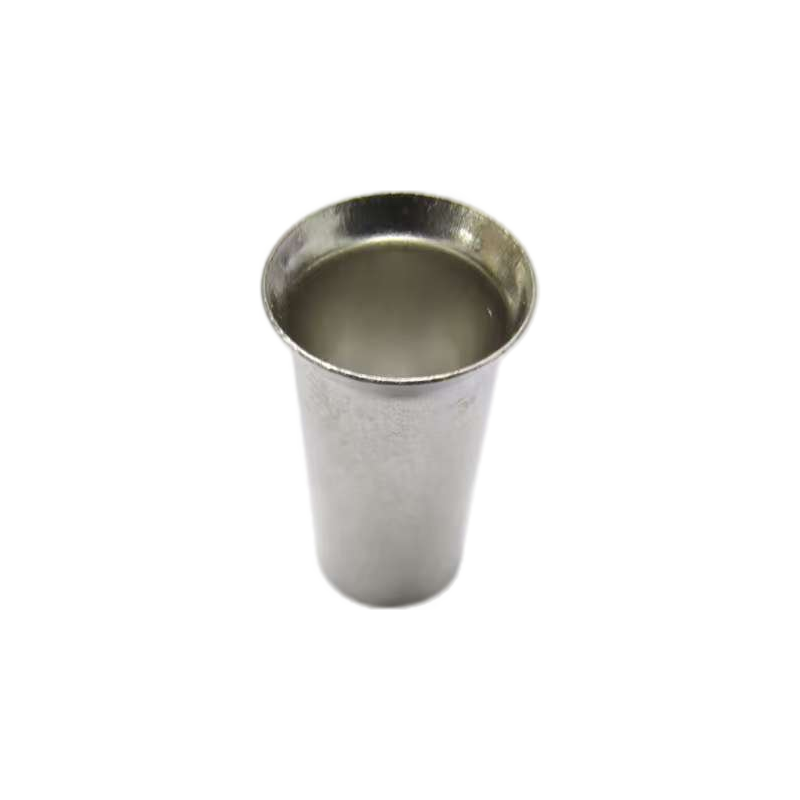

| Flared Barrel Entry | Guides multi-strand conductors smoothly into the terminal without snagging or loose strands. | Rapid Assembly: Accelerates the wiring process and reduces installation errors in high-volume production lines. |
Dimensions
Data Overview
| Item No. | Wire Range (AWG) | Wire Range (mm2) | L (mm) | D (mm) | d (mm) | Material |
| EN0508 | 22 AWG | 0.5 | 8.0 | 1.3 | 1.0 | T2 Copper |
| EN7508 | 20 AWG | 0.75 | 8.0 | 1.5 | 1.2 | T2 Copper |
| EN1008 | 18 AWG | 1.0 | 8.0 | 1.7 | 1.4 | T2 Copper |
| EN1510 | 16 AWG | 1.5 | 10.0 | 2.0 | 1.7 | T2 Copper |
| EN2510 | 14 AWG | 2.5 | 10.0 | 2.5 | 2.2 | T2 Copper |
| EN4012 | 12 AWG | 4.0 | 12.0 | 3.2 | 2.8 | T2 Copper |
| EN6012 | 10 AWG | 6.0 | 12.0 | 3.9 | 3.5 | T2 Copper |
| EN10-12 | 8 AWG | 10.0 | 12.0 | 4.9 | 4.5 | T2 Copper |
FAQs
Q: Why use non-insulated cord-end terminals instead of insulated ones?
A: Non-insulated terminals (EN Series) are preferred in applications where space is extremely limited, such as high-density terminal blocks. They are also superior in high-temperature environments where the plastic insulation on standard ferrules might melt, compromise the connection, or release toxic fumes.
Q: Is the T2 copper used in XLUIG ferrules better than standard brass?
A: Absolutely. T2 electrolytic copper provides significantly higher electrical conductivity than brass or alloy alternatives. This ensures minimal voltage drop and prevents heat buildup, which is critical for maintaining the safety and efficiency of industrial power circuits.
Q: What type of crimp profile is recommended for these ferrules?
A: For our EN series cord-end terminals, we recommend using a square or hexagonal crimp die. These profiles provide maximum contact surface area within the terminal block, ensuring a gas-tight, vibration-resistant connection that exceeds industrial pull-out standards.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
