High-Quality Orange Bootlace Ferrules – E-Series Insulated Wire End Sleeves
PRODUCT PARAMETERS
Description

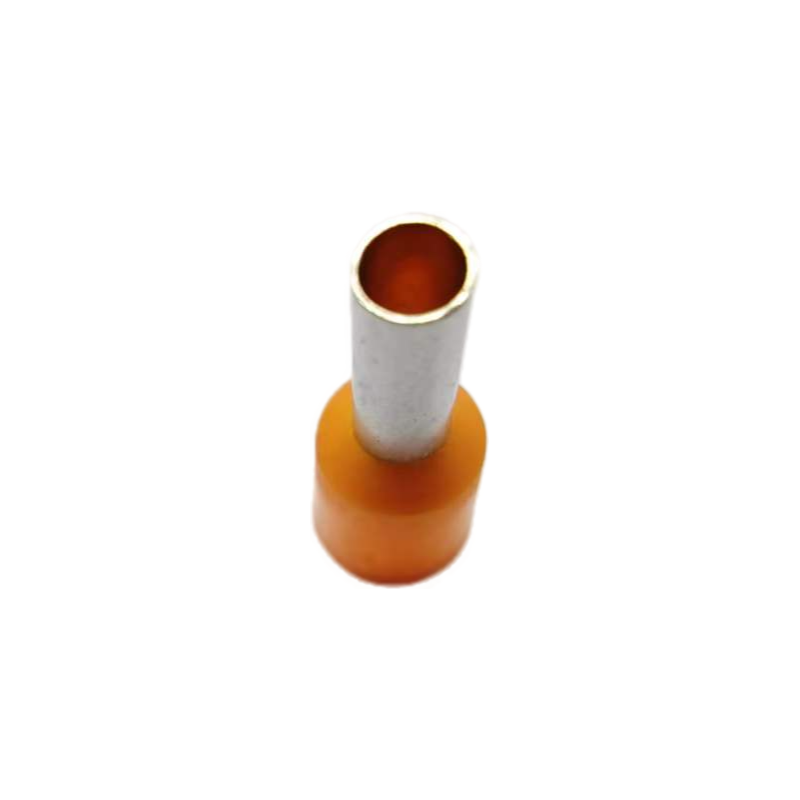

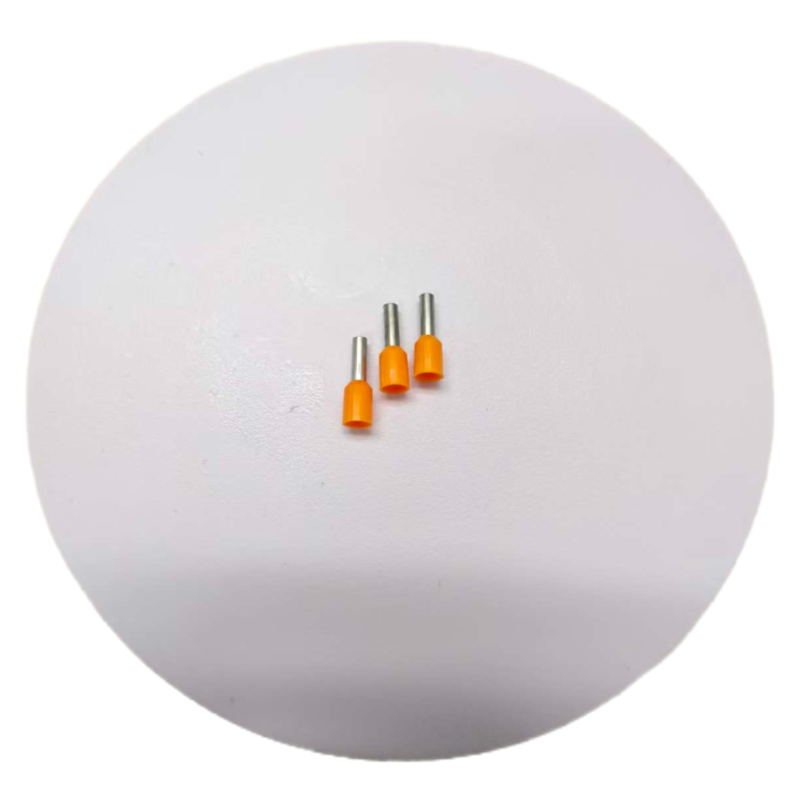

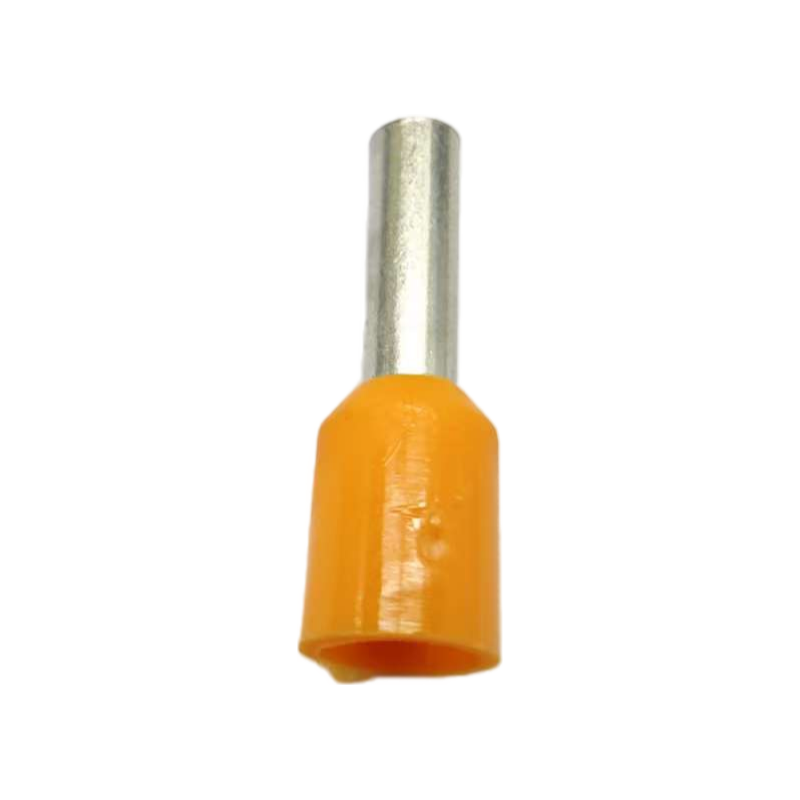

Shop professional Orange Insulated Cord End Ferrules (E-Series) at Xluig. Made of tin-plated electrolytic copper for superior conductivity and safety. Ideal for industrial control panels and wire management.
Dimensions
Data Overview
| Item No. | Color (Standard) | Wire Range (AWG/mm²) | D1 (mm) | d1 (mm) | L (mm) | L1 (mm) |
| LT40012 | Orange (T) | 12 AWG (4.0 mm²) | 3.2 | 2.8 | 20.0 | 12.0 |
| E0508 | Orange (DIN) | 22 AWG (0.5 mm²) | 2.6 | 1.0 | 14.0 | 8.0 |
| E0510 | Orange (DIN) | 22 AWG (0.5 mm²) | 2.6 | 1.0 | 16.0 | 10.0 |
| E0512 | Orange (DIN) | 22 AWG (0.5 mm²) | 2.6 | 1.0 | 18.0 | 12.0 |
Product Features & Engineering Logic
| Product Features | Technical Advantages | Customer Benefits |
| Tin-Plated Electrolytic Copper Body | Provides a low-resistance path and prevents copper core oxidation. | Long-term Safety: Ensures reliable connections and prevents overheating in electrical systems. |

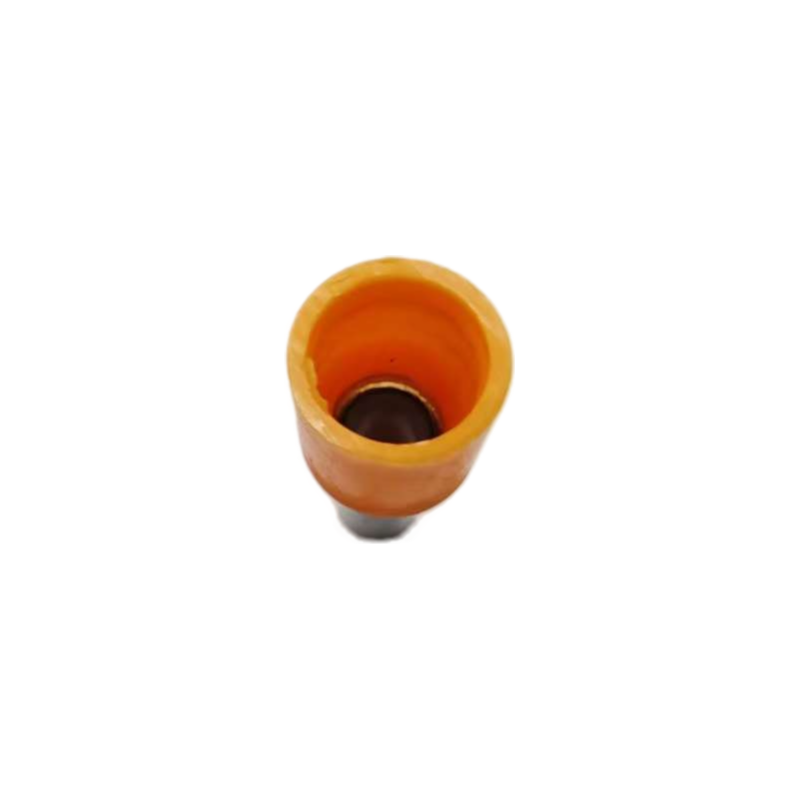

| Funnel Entry Insulation Sleeve | Gathers all wire strands during insertion, preventing accidental short circuits. | High Efficiency: Drastically reduces installation time and labor costs during high-density wiring. |
| Orange Standardized Color Coding | High-visibility orange insulation facilitates quick wire identification and circuit mapping. | Easy Maintenance: Simplifies troubleshooting and future system upgrades for engineers. |
| Precision Crimp Zone Design | Optimized barrel thickness ensures a gas-tight seal when used with professional crimping tools. | Mechanical Stability: Prevents wire pull-out even under high-vibration industrial conditions. |
FAQs
Q: Does the color ‘Orange’ always represent the same wire gauge?
A: Not necessarily. While “Orange” often represents 0.5mm² in the DIN standard, it represents 4.0mm² in the T-system (Telemecanique). Xluig recommends checking our specification table or your project standard (DIN vs. French vs. German) before ordering.
Q: What material are the Xluig orange ferrules made of?
A: Our terminals are made of high-purity electrolytic copper with a premium tin coating. This combination ensures maximum electrical flow while providing excellent protection against corrosion and oxidation.
Q: Are these ferrules suitable for fine-stranded wires?
A: Yes, our orange ferrules feature a flared funnel entry design. This ensures that all fine strands are gathered inside the barrel without bending or straying, which is essential for preventing short circuits in industrial panels.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
