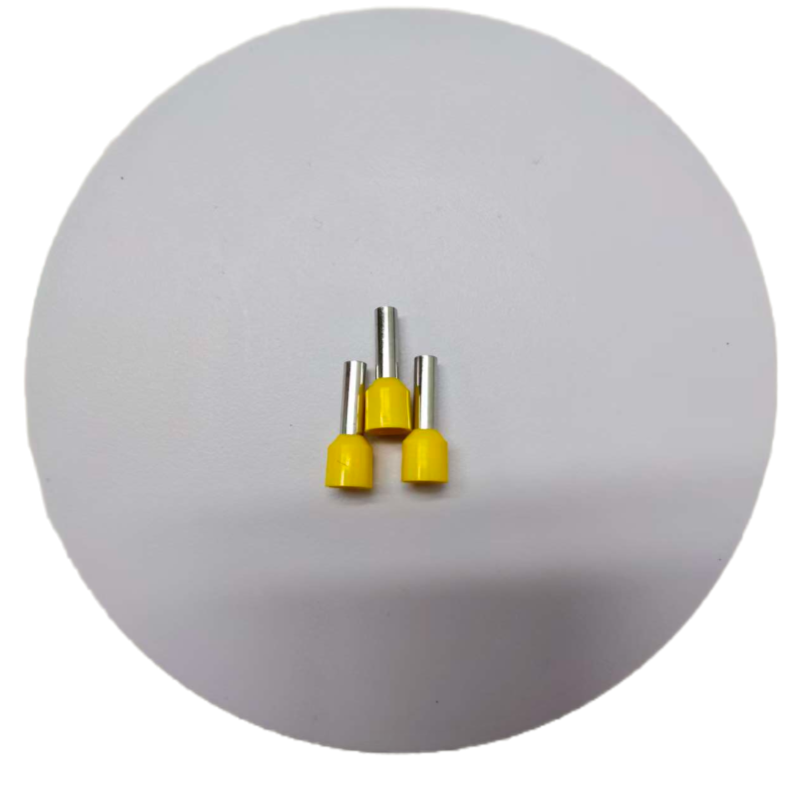

Premium 6mm² (10 AWG) yellow wire ferrules from Xluig. Built with 99.9% pure T2 copper and Nylon 66 insulation. Ensuring gas-tight connections and high conductivity for industrial power systems.
Dimensions
Data Overview
Item No.
Wire Range (mm²)
Wire Range (AWG)
Pin Length L1 (mm)
Total Length L (mm)
Barrel I.D. d1 (mm)
Insulation I.D. d2 (mm)
Color (DIN)
LT60010
6.0
10
10
18
3.5
6.3
Yellow
LT60012
6.0
10
12
20
3.5
6.3
Yellow
LT60018
6.0
10
18
26
3.5
6.3
Yellow
Product Features & Engineering Logic
Engineering Feature
Technical Advantage
Strategic Business Benefit
Seamless T2 Copper Barrel
Provides 360° uniform pressure during crimping, preventing barrel splitting.
Maximum Safety: Eliminates resistance spikes and overheating in high-load power circuits.

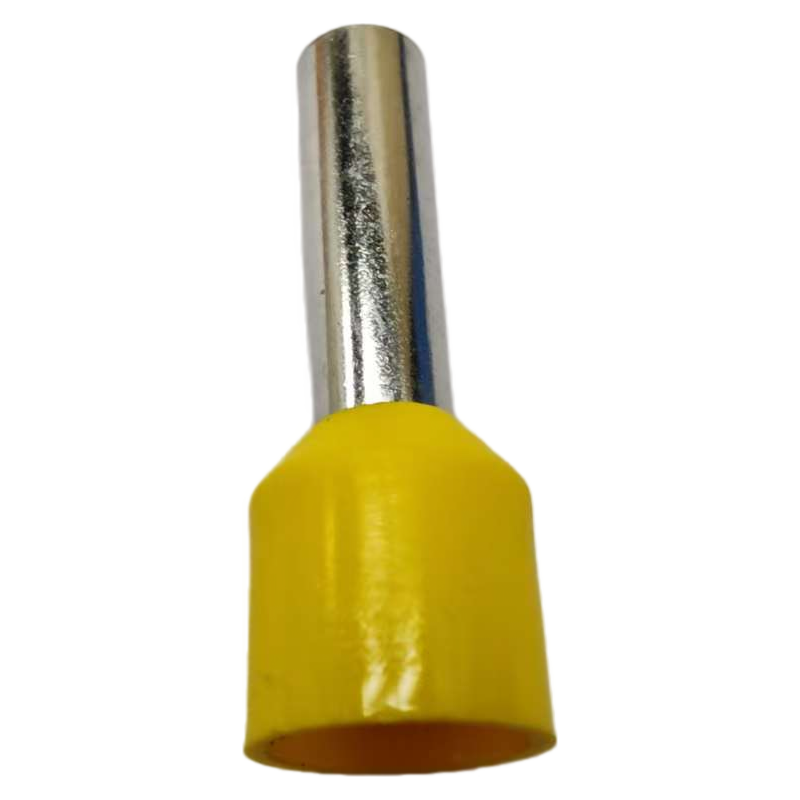

V0-Rated Nylon Insulation
Maintains structural integrity up to $105^\circ C$ with excellent dielectric strength.
Reliability: Prevents insulation failure and short circuits in high-temperature industrial environments.

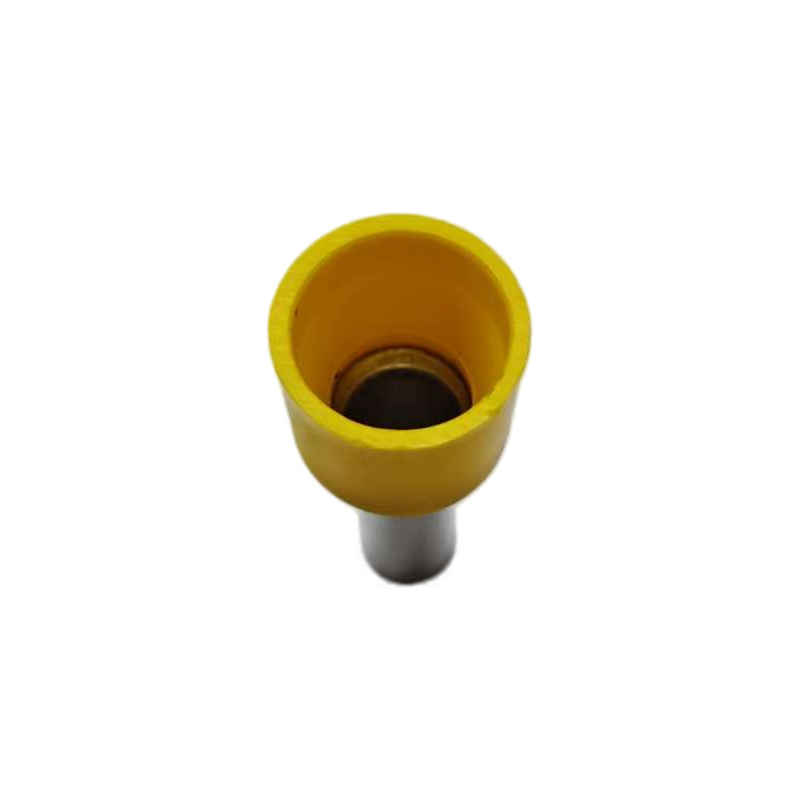

Pro-Grade Funnel Entry
Automatically gathers all wire strands into the barrel without fraying or spreading.
Operational Efficiency: Reduces assembly time by 30% and eliminates manual re-work of stray strands.

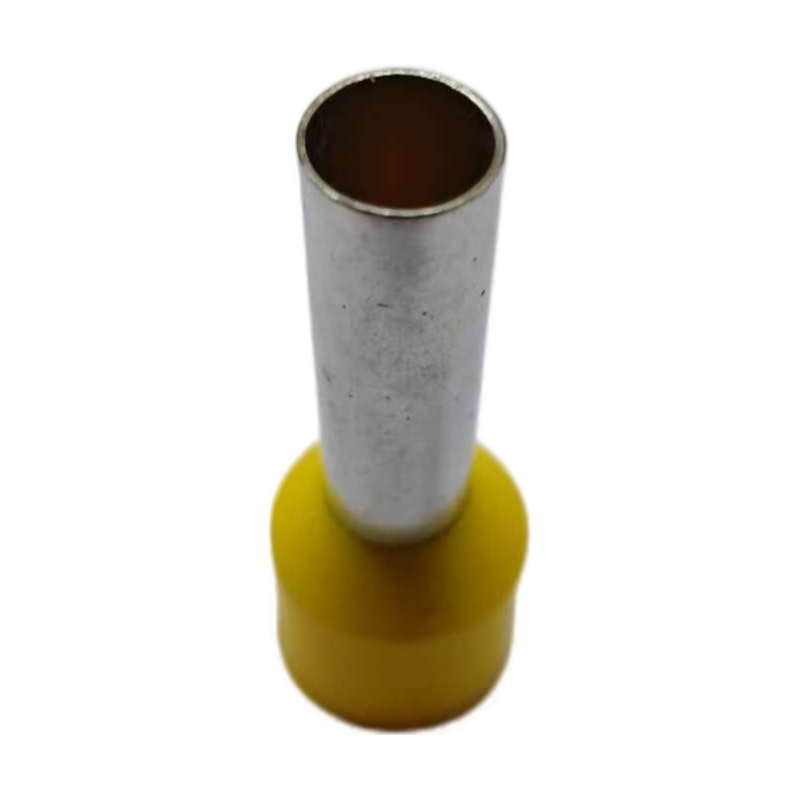

Electro-Tin Finish
Creates a high-purity chemical barrier against moisture and atmospheric corrosion.
Long-Term Savings: Maintenance-free connections that resist oxidation for decades in harsh settings.
FAQs
Q: Why use T2 Copper instead of standard brass for 6mm² ferrules?
A: T2 Copper (99.9% purity) offers significantly higher conductivity and better ductility than brass. For 6mm² (10 AWG) applications handling higher currents, T2 copper ensures minimal voltage drop and prevents the terminal from cracking under the intense pressure of professional crimping tools.
Q: Does the Yellow color always represent 6mm² wire?
A: In the DIN 46228 standard, Yellow is the dedicated color for 6.0mm² (10 AWG). However, in other systems like the “T-system”, yellow may represent 4.0mm². Xluig strictly follows the DIN standard for our yellow LT series to ensure global engineering compatibility.
Product Attributes
Property
Details
Industry
Industrial Fastener
Brand Name
XLUIG (Kunshan Xinluan New Material Technology Co., Ltd)
Place of Origin
Jiangsu, China
Certificate
ISO 9001:2015 Certified
Thread Size
Customized sizes available
MOQ
5,00 Pieces
OEM / ODM
Support (Based on technical drawings)
Samples
Available upon request
Supply Ability
Service Items
Details & Specifications
Packaging
Small boxes, plastic bags, bulk cartons, and wooden pallets
