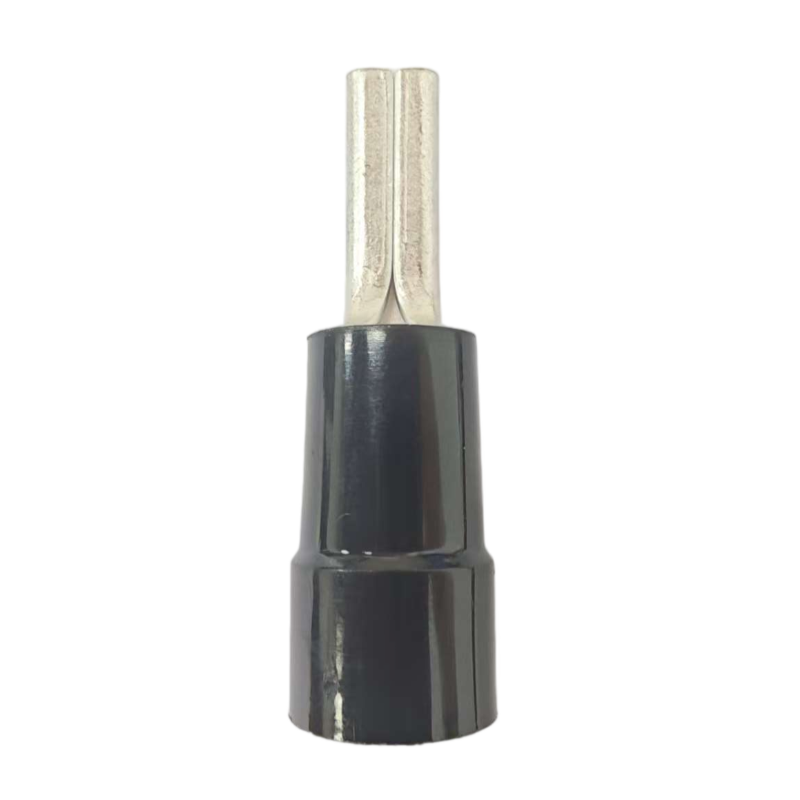

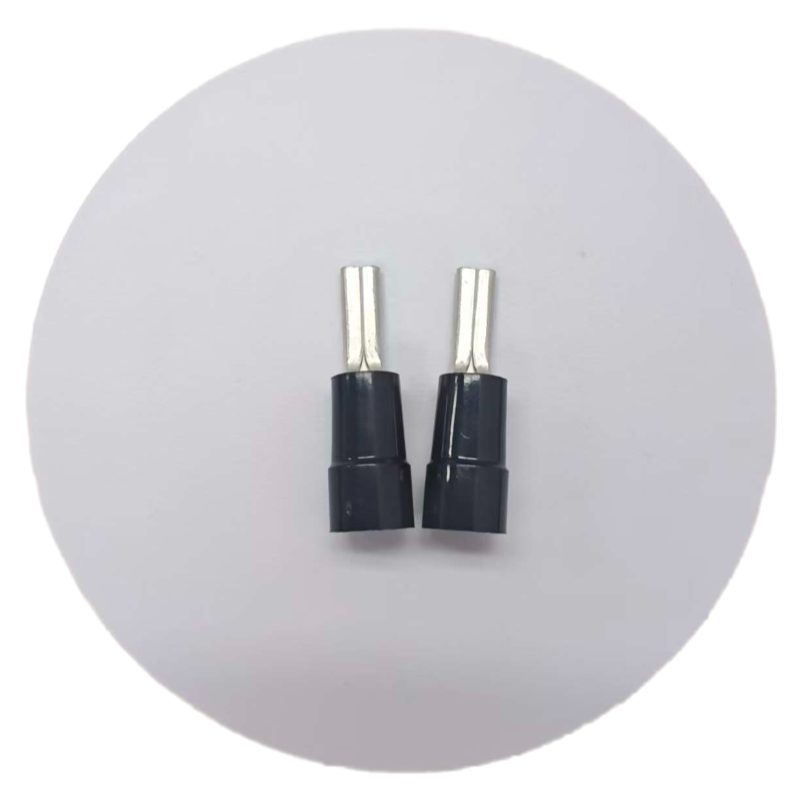

Heavy-Duty Black KS Insulated Pin Terminals | 8 AWG – 3/0 AWG Nylon Blade Connectors | Xluig
PRODUCT PARAMETERS
Description
Shop Heavy-Duty Black KS Insulated Pin Terminals (8 AWG to 3/0 AWG) at Xluig. High-purity T2 copper with 105°C Black Nylon (NL) insulation for industrial power systems.
Dimensions
Data Overview
| Model No. | Color | Wire Range (AWG) | Wire Range (mm²) | B (mm) | L (mm) | F (mm) | D (mm) | d (mm) |
| KS10-12BK | Black | 8 AWG | 10 mm² | 2.4 | 24 | 12 | 8.0 | 4.3 |
| KS16-13BK | Black | 6 AWG | 16 mm² | 2.6 | 28 | 13 | 9.0 | 5.3 |
| KS25-15BK | Black | 4 AWG | 25 mm² | 4.0 | 33 | 15 | 11.2 | 7.0 |
| KS35-20BK | Black | 2 AWG | 35 mm² | 4.5 | 40 | 20 | 12.5 | 8.2 |
| KS50-20BK | Black | 1/0 AWG | 50 mm² | 5.5 | 45 | 20 | 15.0 | 9.5 |
| KS70-20BK | Black | 2/0 AWG | 70 mm² | 6.5 | 50 | 20 | 17.5 | 11.5 |
| KS95-20BK | Black | 3/0 AWG | 95 mm² | 7.5 | 55 | 20 | 19.5 | 13.5 |
Product Features & Engineering Logic
| Engineering Features | Technical Advantages | Professional Business Value |

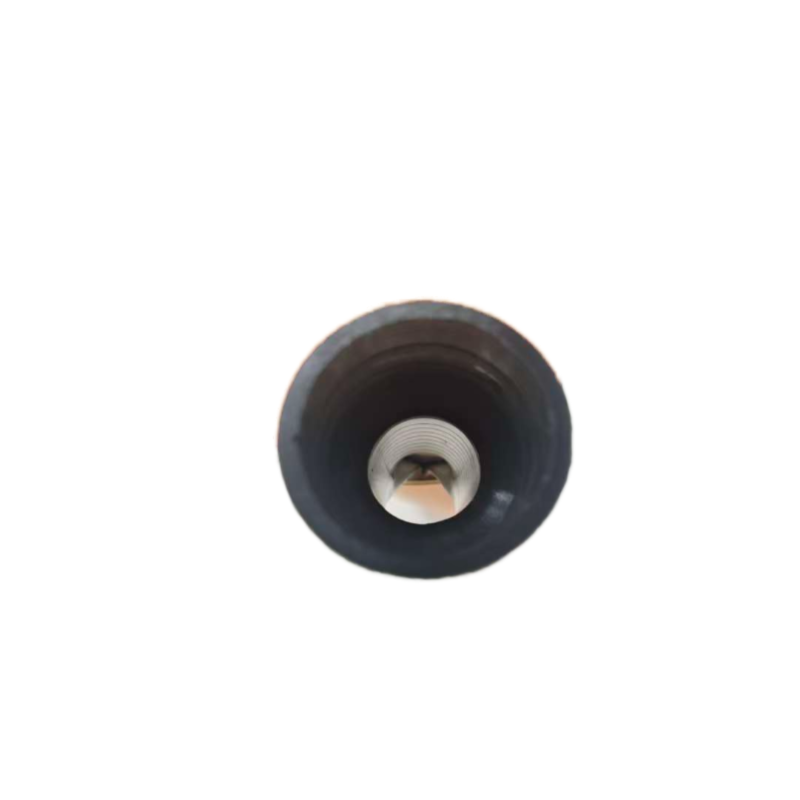

| Brazed Seam Copper Barrel | Creates a seamless, reinforced tube that will not split during the heavy-duty crimping process. | Uncompromised Safety: Eliminates the risk of fire and joint failure caused by barrel spreading in high-amp circuits. |
| Black Nylon (NL) Insulation | Higher thermal stability and mechanical strength compared to standard PVC or vinyl sleeves. | System Reliability: Guaranteed performance in high-vibration power generators, mining equipment, and EVs. |
| T2 Electrolytic Copper | Provides the highest level of electrical conductivity available for industrial crimp connectors. | Energy Efficiency: Minimizes voltage drop and heat generation, protecting sensitive power distribution equipment. |
| Funnel-Entry Design | Specifically tapered to guide thick cable strands into the barrel without fraying or snagging. | Labor Productivity: Speeds up the installation of large-gauge cables while ensuring 100% core containment for every crimp. |
FAQs
Q: What does the “BK” in model numbers like KS10-12BK stand for?
A: “BK” stands for Black. In our KS (NL) series, Black is the standard color for the high-performance Nylon insulation used on heavy-duty terminals from 10 mm² to 95 mm².
Q: Why is the brazed seam important for KS series terminals?
A: For large cables (up to 3/0 AWG), the crimping force is massive. A brazed seam ensures the barrel stays as one solid piece, preventing it from opening and ensuring a gas-tight, low-resistance connection that won’t fail over time.
Q: Are these KS pin terminals suitable for terminal blocks?

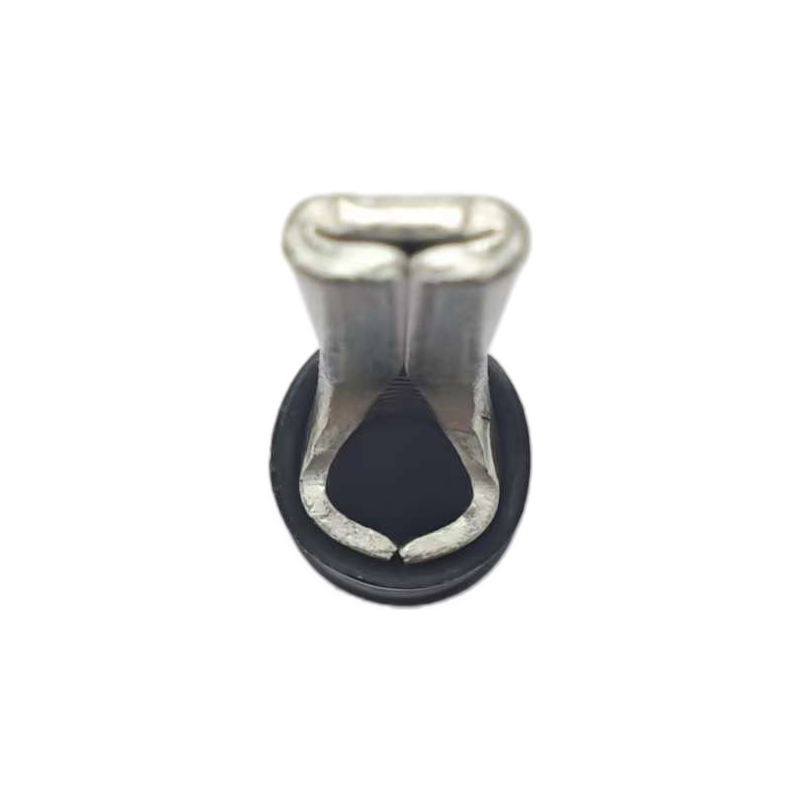

A: Yes. The flat, slim blade design is specifically engineered for secure insertion into narrow terminal blocks and high-density industrial control panels where a ring or spade terminal would not fit.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
