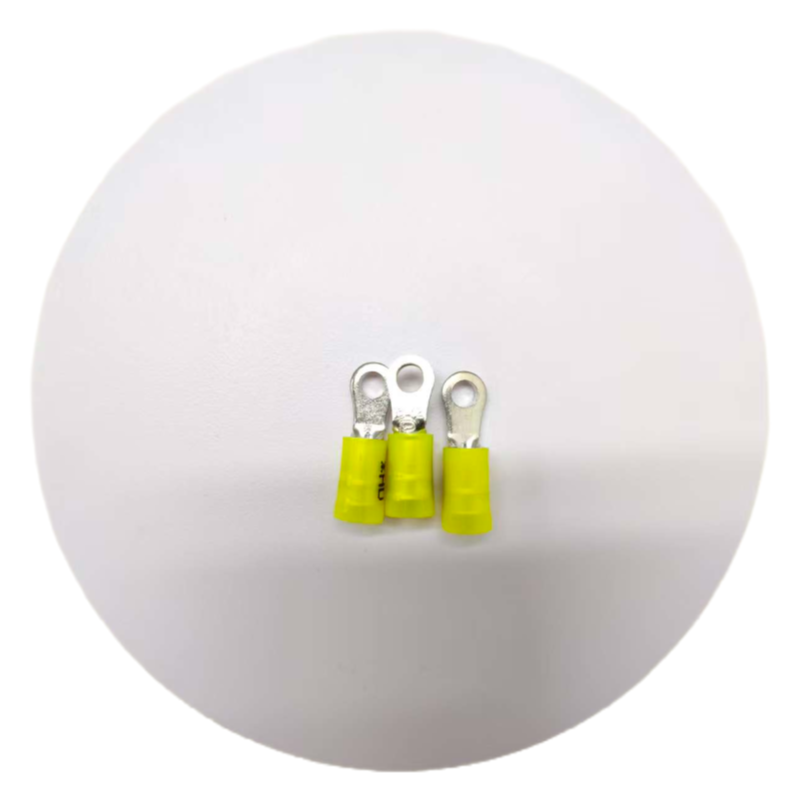

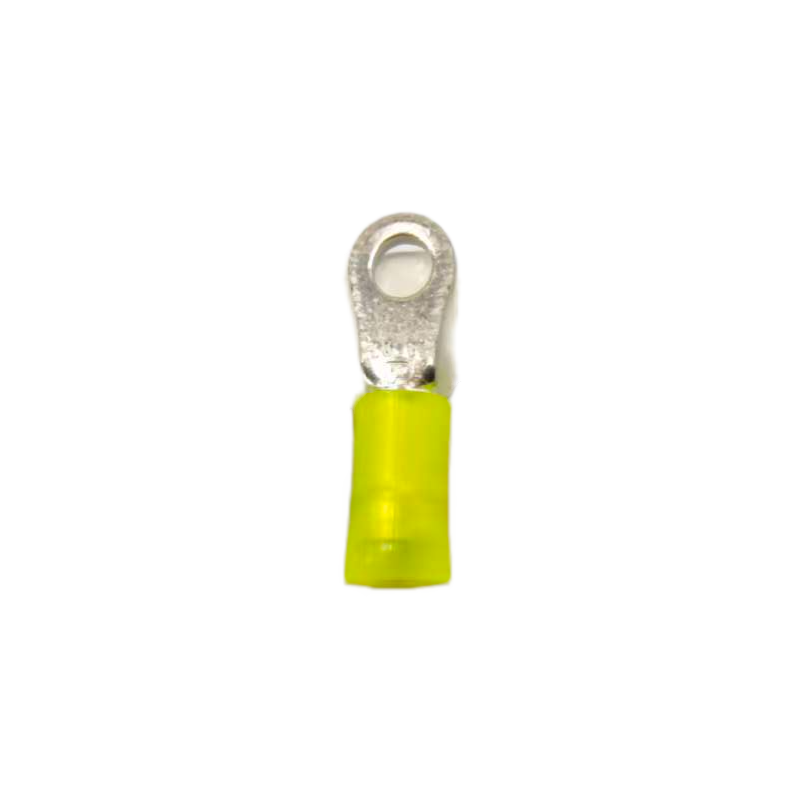

Yellow 12-10 AWG Insulated Ring Terminals | #8 Stud M4 Nylon Crimp Connector | Xluig
PRODUCT PARAMETERS
Description
Buy professional Yellow Insulated Ring Terminals (RNY 5.5) at Xluig. Designed for 12-10 AWG wiring and #8 (M4) studs. High-purity T2 copper with 105C Nylon insulation for high-current safety.
Dimensions
Data Overview
| Model No. | Color | Wire Range (AWG) | Stud Size | d2 (mm) | B (mm) | L (mm) | F (mm) | H (mm) | D (mm) | Max Current |
| RNY 5.5-3.5 | Yellow | 12 – 10 AWG | M3.5 (#6) | 3.7 | 7.2 | 22.5 | 5.9 | 13.0 | 6.7 | 48A |

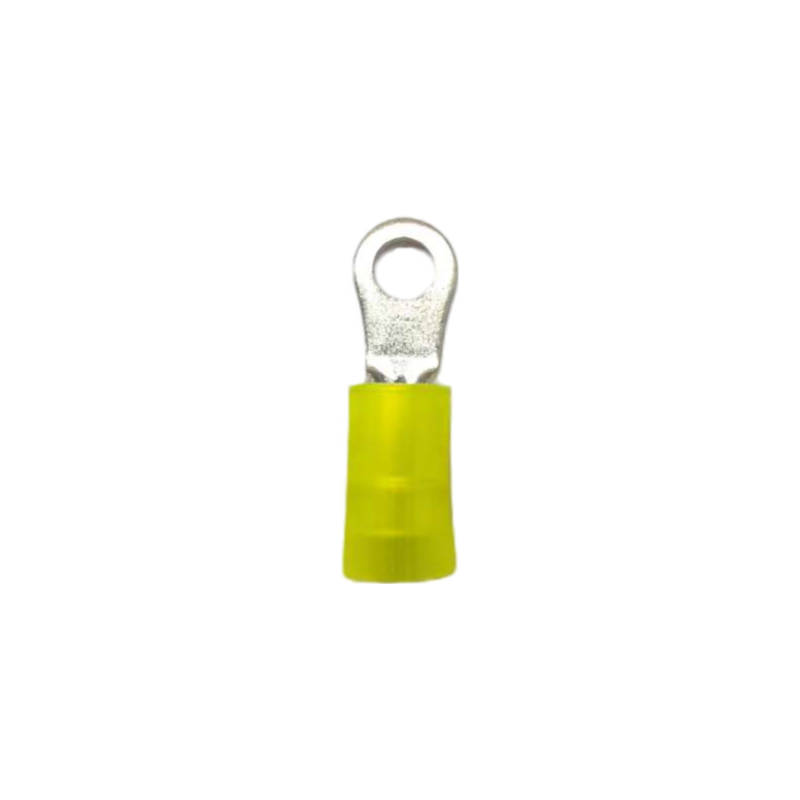

| RNY 5.5-4 | Yellow | 12 – 10 AWG | M4 (#8) | 4.3 | 7.2 | 22.5 | 5.9 | 13.0 | 6.7 | 48A |
| RNY 5.5-5 | Yellow | 12 – 10 AWG | M5 (#10) | 5.3 | 9.5 | 26.5 | 8.3 | 13.0 | 6.7 | 48A |
| RNY 5.5-6 | Yellow | 12 – 10 AWG | M6 (1/4″) | 6.4 | 12.0 | 31.5 | 13.0 | 13.0 | 6.7 | 48A |
| RNY 5.5-8 | Yellow | 12 – 10 AWG | M8 (5/16″) | 8.4 | 15.0 | 34.0 | 13.7 | 13.0 | 6.7 | 48A |
| RNY 5.5-10 | Yellow | 12 – 10 AWG | M10 (3/8″) | 10.5 | 15.0 | 34.0 | 13.7 | 13.0 | 6.7 | 48A |
| RNY 5.5-12 | Yellow | 12 – 10 AWG | M12 (1/2″) | 13.0 | 19.2 | 38.5 | 16.0 | 13.0 | 6.7 | 48A |
Product Features & Engineering Logic
| Material & Engineering | Functional Advantages | Professional Business Value |
| Double-Crimp Nylon Sleeve | Provides significantly higher mechanical strength and chemical resistance than standard PVC. | Harsh Environment Safety: Prevents insulation failure in high-vibration machinery and automotive engine bays. |
| Annealed T2 Copper Core | Delivers elite conductivity while allowing for uniform metal deformation during the crimping process. | Electrical Integrity: Eliminates terminal overheating risk and ensures system stability over decades of operation. |
| Circular Ring Tongue | Provides a full 360-degree contact surface with the mounting stud or bolt. | Maximum Torque Support: Ensures a secure connection that cannot be accidentally pulled or shaken off the terminal block. |

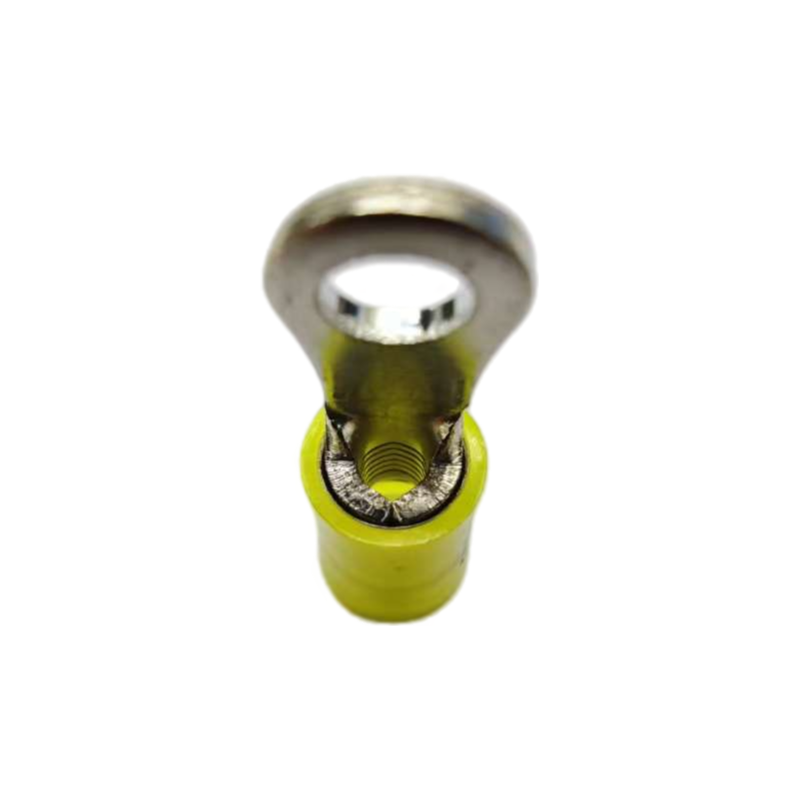

| Easy-Entry Funnel Design | Automatically gathers all 12-10 AWG wire strands into the barrel for a seamless, snag-free insertion. | Operational Efficiency: Reduces labor time and eliminates short circuits caused by stray wire strands. |
FAQs
Q: Why use Nylon (NL) instead of PVC for 12-10 AWG ring terminals?
A: For high-power 12-10 AWG connections, heat and vibration are common. Nylon insulation is rated for 105 degrees Celsius and offers superior “memory” (it won’t crack under pressure), making it much safer for industrial and automotive applications than standard PVC.
Q: What is the maximum current capacity of the RNY 5.5 series?
A: The Xluig RNY 5.5 series is engineered to safely handle up to 48 Amperes. This makes it ideal for heavy-duty power supplies, control panels, and marine electrical systems.
Q: Can I use these yellow terminals for marine environments?
A: Yes. Our terminals are made from T2 copper and are fully tin-plated. This treatment prevents salt-spray corrosion and oxidation, ensuring your electrical connections remain stable in harsh maritime conditions.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
