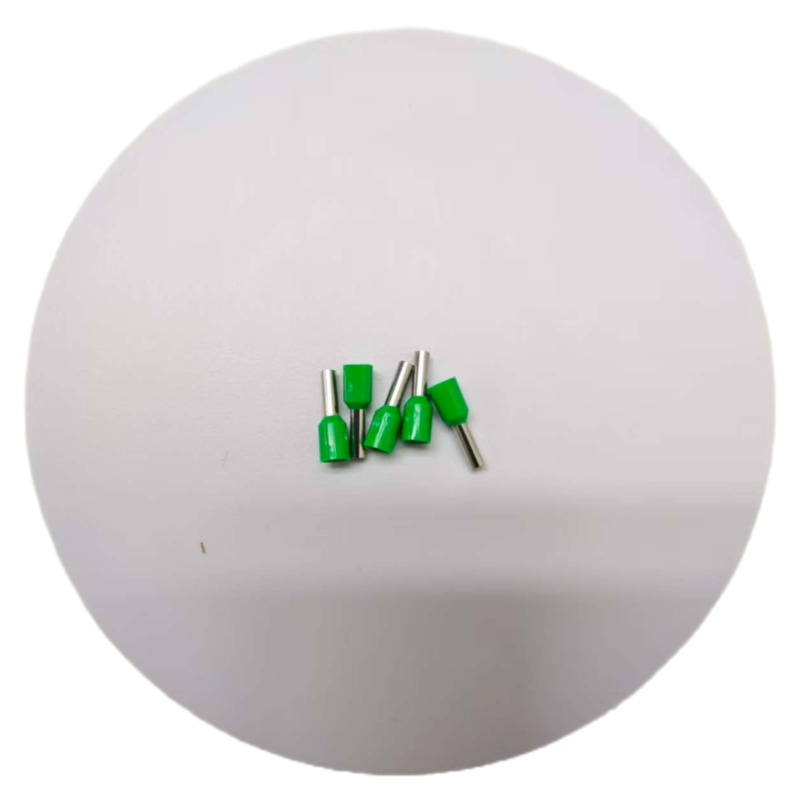

High-performance 16mm2 (6 AWG) green wire ferrules from Xluig. Built with 99.9% T2 seamless copper and V0-rated Nylon 66. Meet DIN 46228 standards for safe, gas-tight electrical connections.
Dimensions
Data Overview
Item No.
Wire Range (mm²)
Wire Range (AWG)
Pin Length L1 (mm)
Total Length L (mm)
Barrel I.D. d1 (mm)
Insulation I.D. d2 (mm)
Color (DIN)
LT16012
16.0
6
12
22
5.8
8.8
Green
LT16015
16.0
6
15
25
5.8
8.8
Green
LT16018
16.0
6
18
28
5.8
8.8
Green
Product Features & Engineering Logic
Engineering Feature
Technical Advantage
Professional Benefit

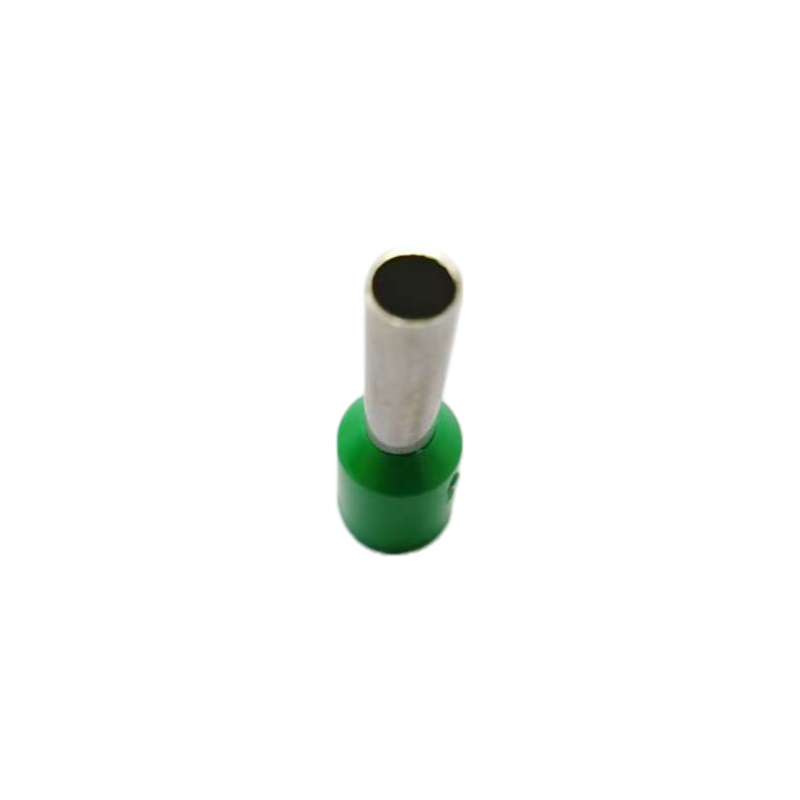

Seamless T2 Copper Pin
Eliminates the risk of the terminal barrel splitting during heavy-duty crimping.
Zero Failure: Ensures a permanent, high-integrity connection that prevents voltage drops and power loss.

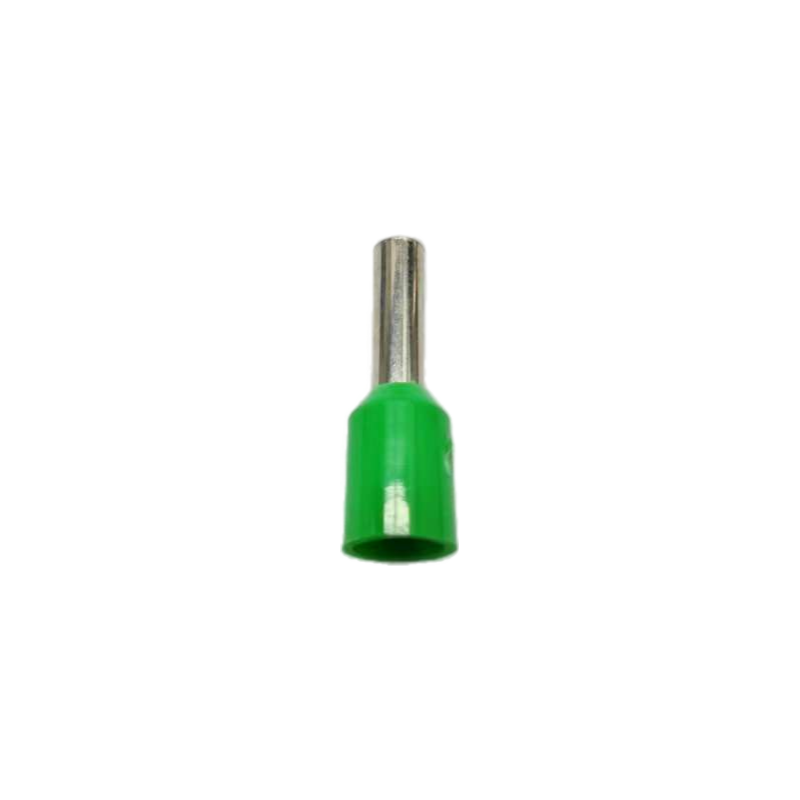

Nylon 66 Insulation
Offers superior heat resistance and dielectric strength compared to standard plastic.
System Safety: Provides long-term insulation reliability even in dense, high-heat industrial control panels.

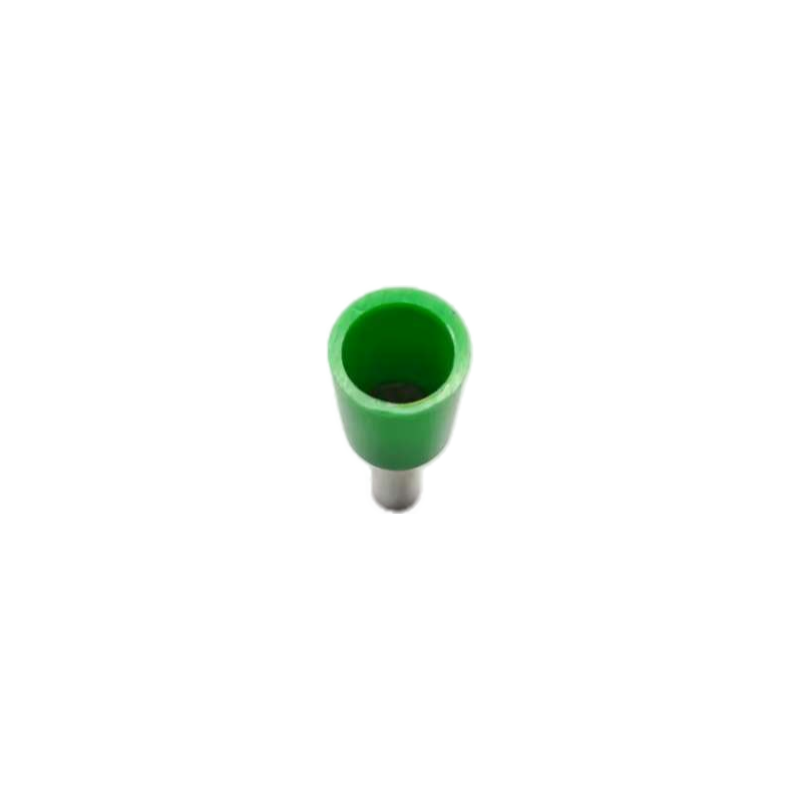

Extended Funnel Entry
Guides and bundles all fine wire strands into the barrel effortlessly.
Efficiency Boost: Cuts installation time by 30% and prevents short circuits caused by stray, frayed strands.
Uniform Tin Plating
Creates a robust chemical barrier against moisture, salt spray, and atmospheric pollutants.
Maintenance-Free: Guarantees a stable electrical joint that remains conductive and corrosion-free for decades.
FAQs
Q: Why is 16mm2 wire coding green in some systems but blue in others?
A: This depends on the specific color standard used. In the DIN 46228 standard, green is the official color for 16mm² (6 AWG). However, the “W” system uses white and the “T” system uses blue for this size. Xluig provides all three to match your local regional requirements.
Q: Can these terminals handle high-temperature industrial environments?
A: Yes. Xluig uses industrial-grade Nylon 66 which maintains structural integrity and insulation performance up to 105°C. This is a critical upgrade over standard PVC terminals, ensuring safety in continuous high-load electrical applications.
Product Attributes
Property
Details
Industry
Industrial Fastener
Brand Name
XLUIG (Kunshan Xinluan New Material Technology Co., Ltd)
Place of Origin
Jiangsu, China
Certificate
ISO 9001:2015 Certified
Thread Size
Customized sizes available
MOQ
5,00 Pieces
OEM / ODM
Support (Based on technical drawings)
Samples
Available upon request
Supply Ability
Service Items
Details & Specifications
Packaging
Small boxes, plastic bags, bulk cartons, and wooden pallets
