Type RAT Double Head Cable Grip | Multi-Strand Dragging & Protection Sleeve
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description
High-performance Type RAT Dragging Cable Grip featuring a double-head design and multi-strand silk weaving. Engineered for the fixation, protection, and dragging of cables, hoses, and pipes with breaking loads up to 10,000kg.
Data Overview
| Model | Size Range (mm) | Total Length (mm) | Breaking Load (kg) |
| RAT-18 | 13-18 | 700 | 1,600 |
| RAT-30 | 25-34 | 1,100 | 3,500 |
| RAT-50 | 42-50 | 1,400 | 5,200 |
| RAT-80 | 75-90 | 1,920 | 9,000 |
| RAT-140 | 130-150 | 2,300 | 10,000 |
| RAT-280 | 280-320 | 2,700 | 10,000 |

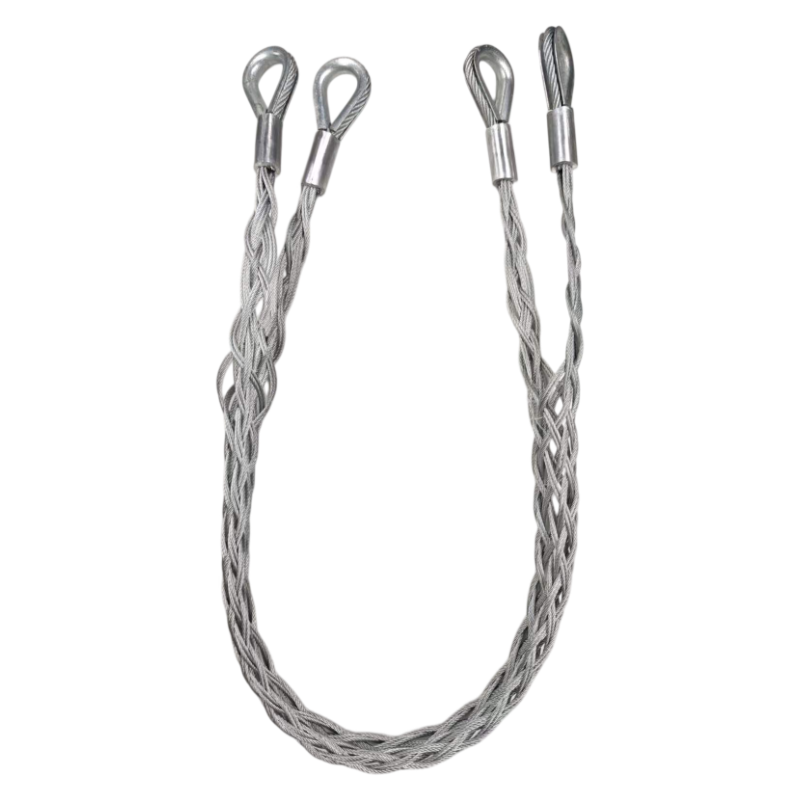

Double Head And Sides Dragging Cable Grip Type RAT
It adopts multiple strands of silk to weave, resulting in a high-density mesh that is fixed, anti-explosion, and specifically designed for the protection of cables, hoses, pipes, and other industrial products. The unique double-head and sides pulling configuration ensures balanced tension distribution, making it an ideal solution for complex dragging maneuvers and secure fixation.
The materials of the cable grip can be divided into hot-dip galvanized, stainless steel 304, and stainless steel 316 to suit various environmental conditions. Furthermore, the materials of the compression connection parts include aluminum alloy compression, stainless steel compression, and copper sleeve compression, ensuring a high-strength bond at all interface points. With breaking loads reaching up to 10,000kg, this model is engineered for high-performance reliability in heavy-duty industrial applications.
Product Features & Engineering Logic
| Dimension | Feature | Advantage | Benefit |
| Design Geometry | Double-head and sides dragging configuration. | Provides balanced tension distribution across multiple pulling points. | Operational Safety: Reduces the risk of cable twisting or sleeve slippage during complex dragging maneuvers. |
| Mesh Density | Multi-strand silk high-density weave. | Increases the contact surface area and grip strength on the load. | Damage Prevention: Ensures a firm hold while protecting delicate cable jackets and hose surfaces. |
| Durability | Choice of SS316 or Galvanized materials. | Superior resistance to corrosion and mechanical wear in harsh environments. | Cost Efficiency: Extended equipment lifespan and reduced maintenance frequency. |
| Versatility | Rated for anti-explosion and protection roles. | Multi-functional design suitable for hazardous and industrial zones. | Project Compliance: Meets stringent safety standards for cable management and hose containment. |
FAQs
Q: What makes the RAT model suitable for anti-explosion applications?
A: The RAT model’s high-density, multi-strand weave provides exceptional containment and fixation strength, which is critical for preventing cable or hose whip in the event of a pressurized failure or mechanical disconnection.
Q: In what scenarios should I choose the double-head design over a single-head grip?
A: The double-head design is ideal when you need to distribute pulling force across two points or when the cable/hose must be dragged and then secured at both ends simultaneously for permanent fixation.
Application Areas
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
