Type SK Wrap-Around Cable Grip | Single Side Dragging Soft Mesh Sleeve
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description

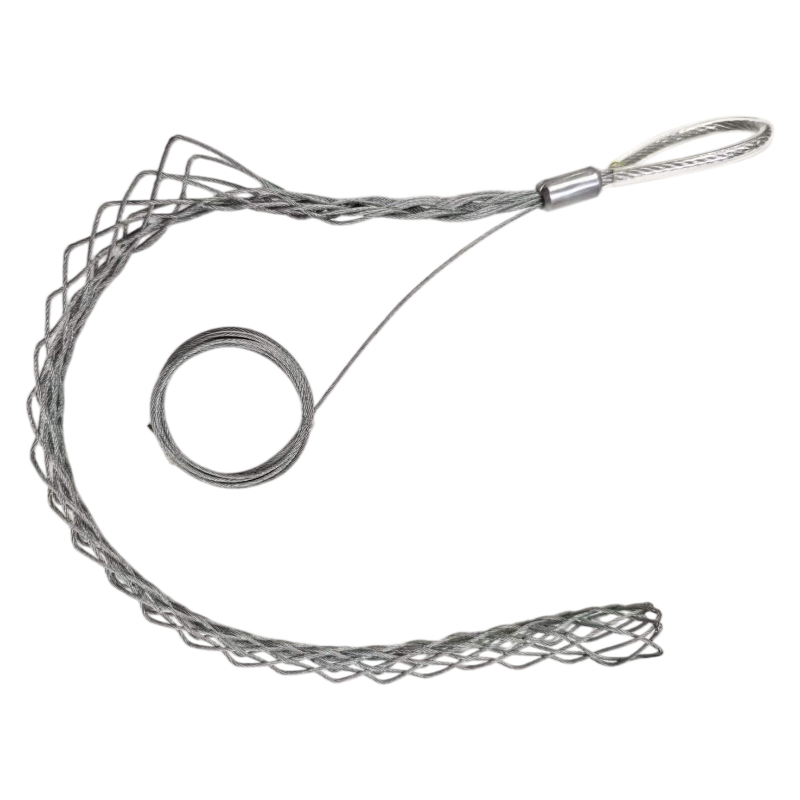

High-flexibility Type SK Wrap-Around Cable Grip featuring a semi-open design for installation at any cable point. Ideal for unilateral traction and dragging with breaking loads up to 9,000kg.
Dimensions
Data Overview
| Model | Size Range (mm) | Mesh Length (mm) | Total Length (mm) | Breaking Load (kg) |
| SK-6 | 4-6 | 145 | 200 | 400 |
| SK-12 | 9-12 | 190 | 260 | 900 |
| SK-25 | 18-25 | 250 | 360 | 1592 |
| SK-55 | 49-60 | 600 | 720 | 4408 |
| SK-100 | 90-115 | 1120 | 1320 | 6000 |
| SK-160 | 152-180 | 1600 | 2000 | 8000 |
| SK-280 | 280-320 | 2000 | 2300 | 9000 |
Product Features & Engineering Logic
| Feature (Technical Innovation) | Advantage (Functional Merit) | Benefit (User Outcome) |
| Wrap-Around Semi-Open Design | Can be wrapped around the cable at any position, even mid-span. | Operational Efficiency: Eliminates the need to find a cable end, saving hours of setup time in complex retrofits. |

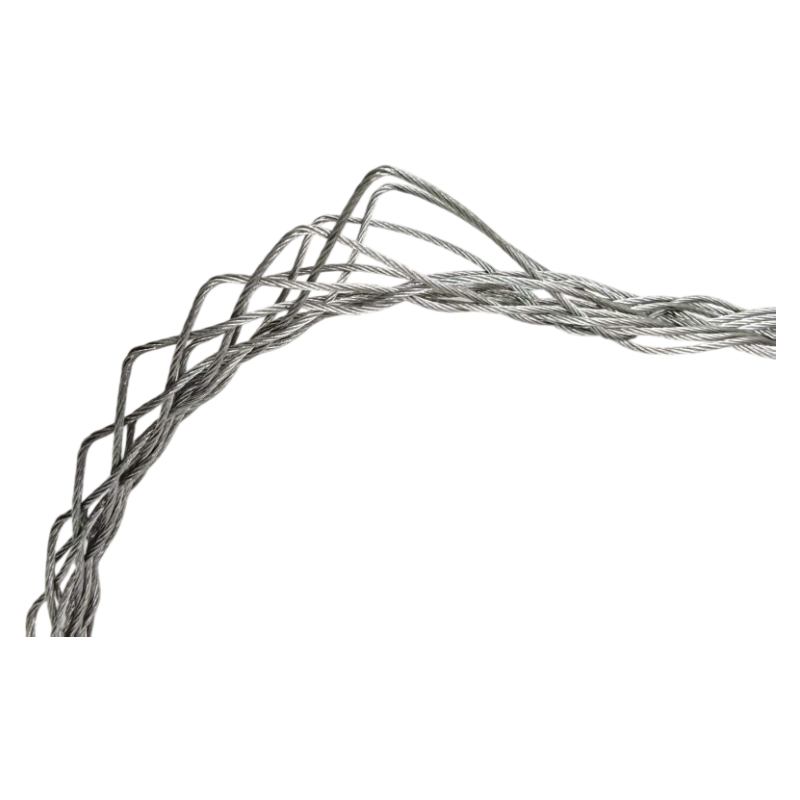

| Single Strand Soft Wire Mesh | Offers a highly flexible “soft” grip that contours perfectly to irregular cable surfaces. | Cable Protection: Provides high-friction traction without damaging or deforming sensitive insulation. |

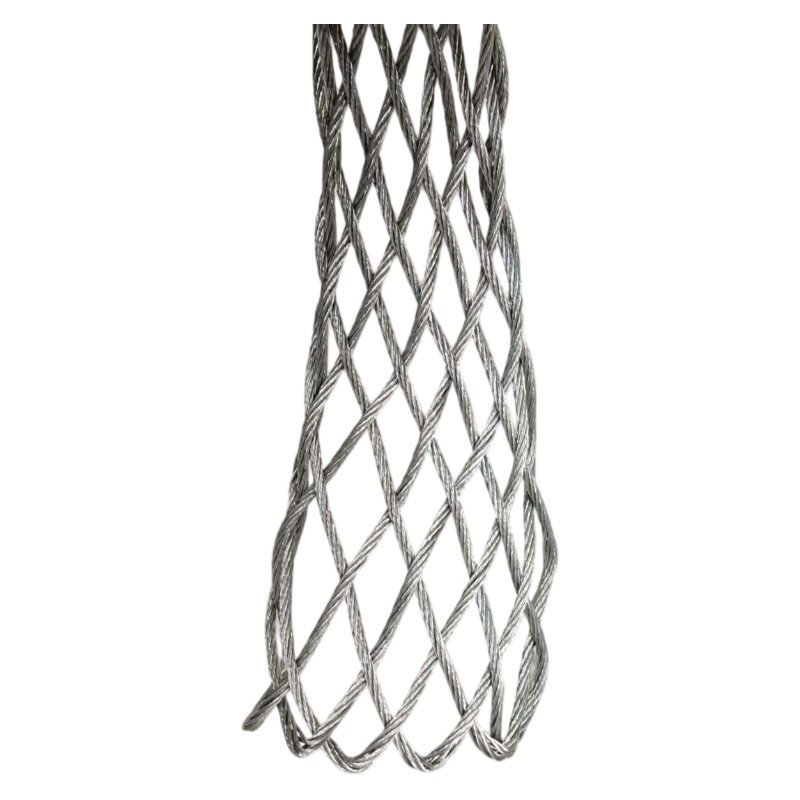

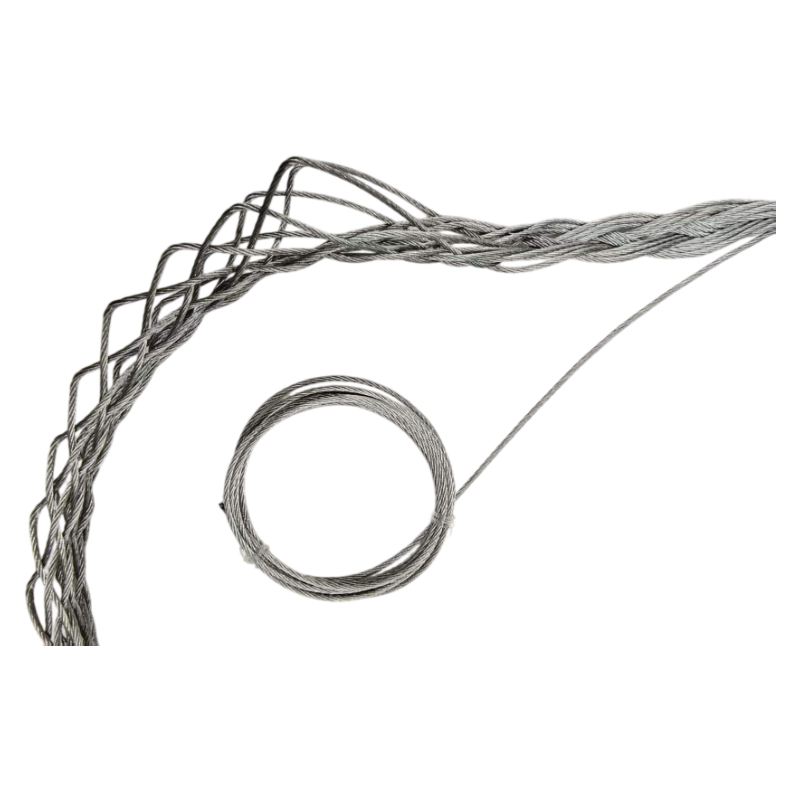

| Steel Wire Rope Lace-Up System | Uses a threaded wire rope to “zip” the mesh shut around the load. | Universal Fit: Ensures a customized, tight fit on any diameter within the model’s range for secure pulling. |
| Hot-Dip Galvanized & SS Options | Provides industrial-grade protection against oxidation and chemical corrosion. | Durability: Guaranteed performance and reusable service life in harsh outdoor and marine environments. |
FAQs
Q: When is the Type SK wrap-around grip preferred over a standard closed-end grip?
A: The Type SK is ideal when you cannot access the end of the cable (e.g., cables already connected to terminals) or when you need to apply traction to a specific middle section of a cable run. It can be wrapped around the cable at any point like a cloth.
Q: How is the “wrap” secured so it doesn’t slip during pulling?
A: The grip is secured by threading a dedicated steel wire rope through the loops along the edge of the mesh (similar to lacing a shoe). This creates a tight, high-friction bond between the mesh and the cable jacket, allowing for breaking loads up to 9,000kg.
Q: Is the Type SK mesh safe for use on soft or delicate hoses?
A: Yes. Because it uses single-strand soft wire weaving, it conforms precisely to the load’s surface, distributing the pulling force evenly to prevent crushing or kinking of sensitive hoses and cables.
Application Areas
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
