Single-Strand Feeder Cable Grip | Lamp Post & Tower Fixation Net (Max 700kg) - XLUIG: Manufacturer of Fasteners, Castings & Custom Components

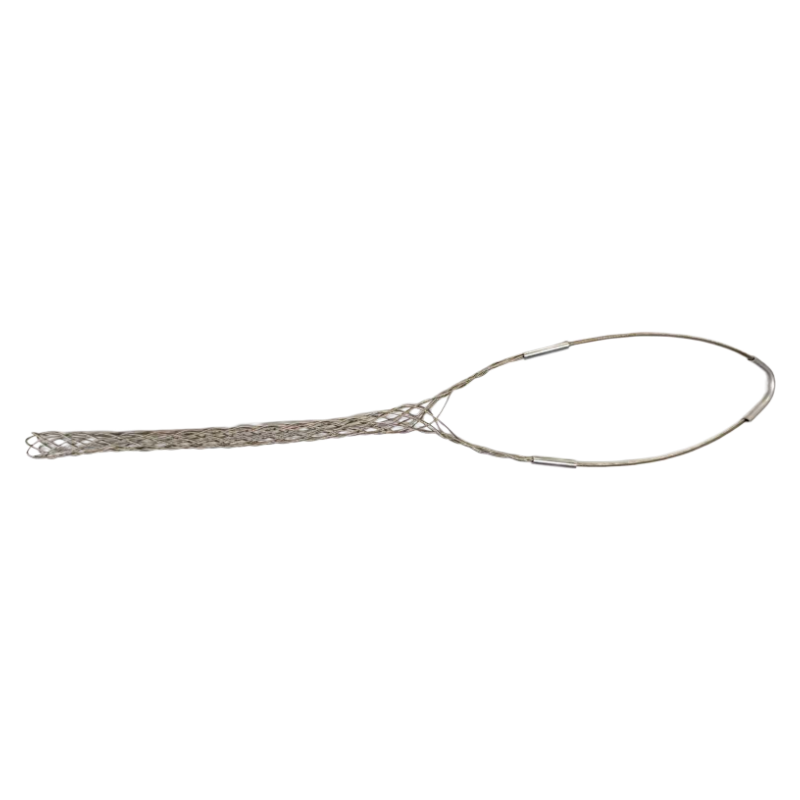

Full view of the single strand Feeder Hanging Net Type BD showing the single eye loop and mesh body gripping a feeder cable.

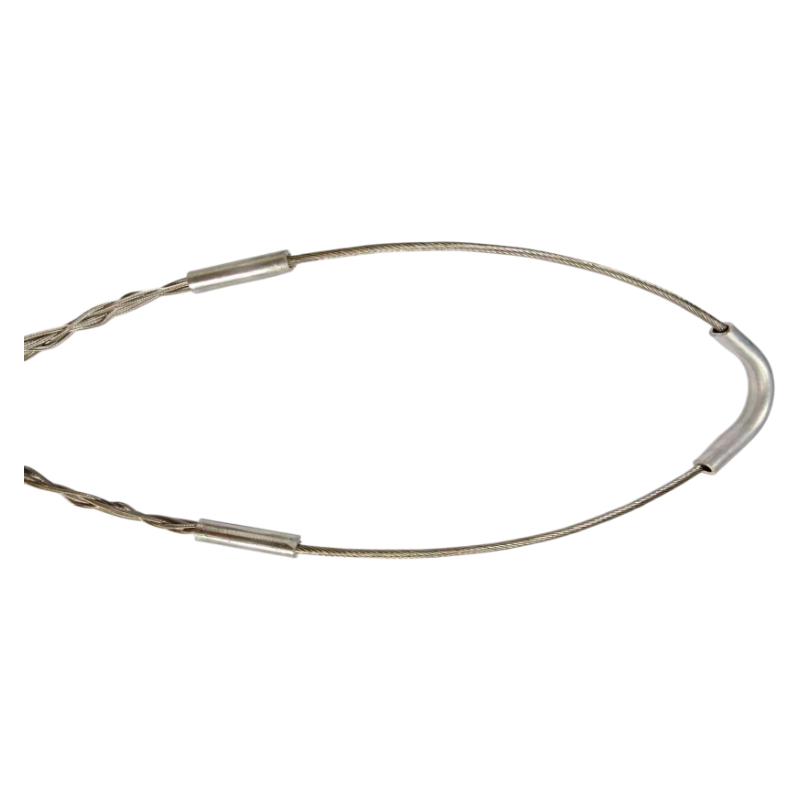

Close up view of the single eye loop termination interface of the BD type hanging net designed for tower fixation.

Close up detail of the single strand metal weaving mesh body wrapped securely around a black feeder cable.

Product Parameters

Product Series: Feeder Hanging Net Type BD.
Construction Type: Adopting single strand weaving construction.
Primary Application: Mainly used for traction and fixation of cables.
Target Infrastructure: Specifically engineered for installation on large lamp posts and signal towers.
Cable Diameter Range: Accommodates cable size ranges from 7mm down to 36mm.
Load Performance: Offers breaking loads ranging from 420kg up to 700kg.

Found this item cheaper? Contact our customer sales team and we'll look to price match.

Request Quote

Description

Application Areas

Product Attributes

Supply Ability

REQUEST A QUOTE

Description

Specialized Single-Strand Feeder Hanging Net (Type BD) for cable traction and long-term fixation on large lamp posts and signal towers. Accommodates cable diameters from 7mm to 36mm with a maximum breaking load of 700kg.

Dimensions

Data Overview

Model	Size Range (Diameter mm)	Mesh length (mm)	Total length (mm)	Breaking load (kg)
BD-1	7-12	165	350	420
BD-2	13-18	235	450	450
BD-3	18-25	275	520	590
BD-4	25-31	350	600	700
BD-5	32-36	420	760	700

Product Features & Engineering Logic

Key Area	Feature	Advantage	Benefit
Load Performance	Maximum breaking load of 700kg (Model BD-4 and BD-5).	High capacity is suitable for securing heavy or long vertical feeder cable runs.	Safety Compliance: Meets stringent engineering requirements for high safety factors in tower rigging operations.
Construction & Grip	Adopts a specialized single strand weaving technique.	Creates a streamlined, flexible mesh tailored for gripping feeder cables without excessive bulk.	Cable Protection: Ensures a secure, uniform grip that manages cable weight effectively, preventing localized stress and jacket damage during long-term suspension.
Application Specificity	Explicitly designed for large lamp posts and signal towers.	Provides an engineered solution for vertical support in high-altitude telecom and lighting infrastructure.	Installation Reliability: Enhances the structural integrity and longevity of critical feeder cable installations.
Dual Functionality	Used for both cable traction (pulling) and long-term fixation (securing).	The same tool performs two critical steps in the installation process.	Operational Efficiency: Simplifies the installation workflow and reduces the variety of hardware required on site.

FAQs

Q1: What is the maximum cable size the BD series can grip?

The largest model, BD-5, is designed to accommodate cable diameters up to 36mm.

Q2: What is the highest breaking load available in this series?

The maximum breaking load for models BD-4 and BD-5 is 700kg.

Q3: What structures is this hanging net used on?

It is primarily used for the traction and fixation of cables on large lamp posts and signal towers.

Q4: How is the grip constructed?

The grip is constructed using a single strand weaving method.
