Nylon Cable Grip (DWPG Type) | Single & Multi Strand Weaving (Max 1800kg)
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description
The MGS Double-Sided Cable Grip adopts single strand weaving for easy threading and connection. Suitable for pulling and dragging cables in the middle section.
Dimensions
Data Overview
| Model | Size Range (Diameter mm) | Total length (mm) | Breaking load of multi strand (kg) | Breaking load of single strand (kg) |
| DWPG-16 | 13-18 | 550 | 520 | 343 |
| DWPG-22 | 18-25 | 600 | 600 | 396 |
| DWPG-30 | 25-37 | 840 | 900 | 594 |
| DWPG-45 | 37-50 | 1050 | 1200 | 792 |
| DWPG-60 | 50-63 | 1200 | 1500 | 990 |
| DWPG-75 | 63-75 | 1350 | 1800 | 1188 |
Product Features & Engineering Logic
| Key Area | Feature | Advantage | Benefit |
| Material Strength | Constructed from durable nylon material. | Provides high tensile strength while maintaining a flexible, non-abrasive grip on the cable jacket. | Cable Integrity: Reduces the risk of damage or abrasion to delicate cable insulation during high-load pulling. |
| Load Versatility | Multi-strand weaving offers breaking loads up to 1800kg. | Suitable for heavy-duty pulling and securing large or long runs of industrial cable. | High Capacity: Ensures safe handling of large and heavy cables in trenching or conduit installation. |
| Weaving Options | Offers both single and multi-strand weaving types. | Provides flexibility to match the required tensile strength against the specific cable and application. | Optimal Selection: Allows engineers to choose the most cost-effective grip based on the necessary load (traction vs. long-term support). |
| Termination Customization | Customizable for single eye or single-sided pulling. | Ensures the grip integrates perfectly with customer-specific pulling heads or securing points. | Ease of Integration: Facilitates seamless connection to winches or fixtures without requiring additional adaptors. |
FAQs
Q1: What are the main weaving options available for the DWPG cable grip?
The grip adopts either single or multi strand weaving craftsmanship.
Q2: What is the maximum cable diameter that can be accommodated by this series?
The largest model, DWPG-75, handles cable diameters up to 75mm.
Q3: What is the maximum breaking load achieved by the multi-strand construction?
The multi-strand construction can achieve a maximum breaking load of 1800kg (Model DWPG-75).

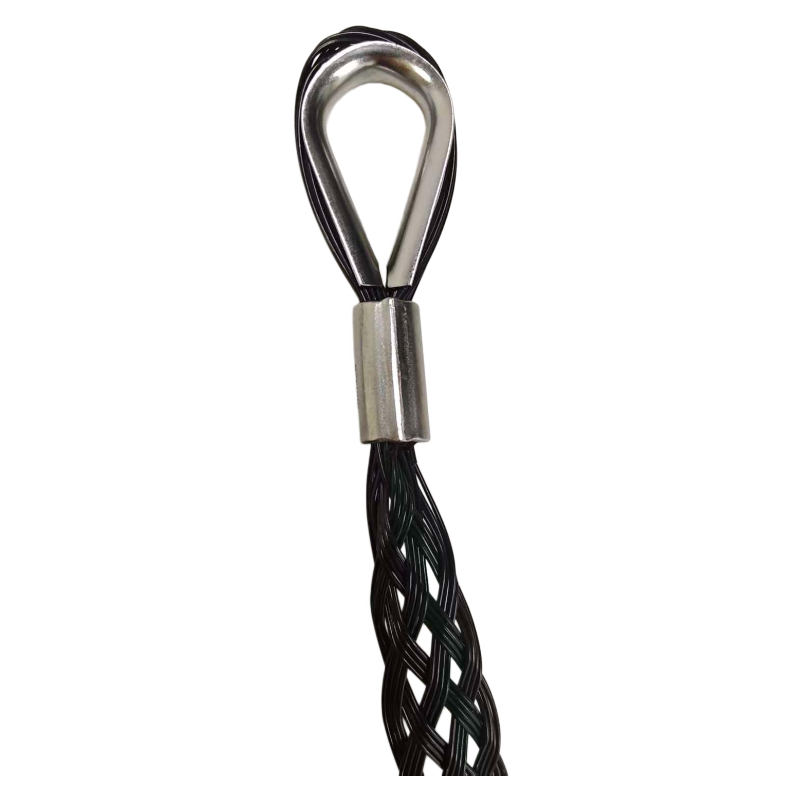

Q4: Can the pulling termination be customized?
Yes, the appearance can be customized according to customer requirements for either a single eye or single-sided pulling termination.
Application Areas
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
