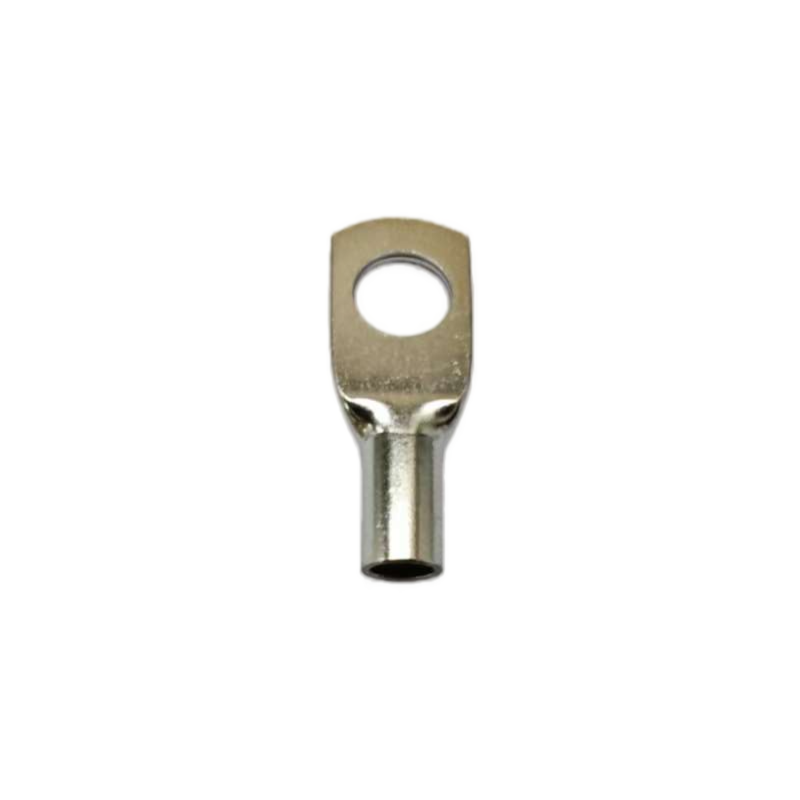

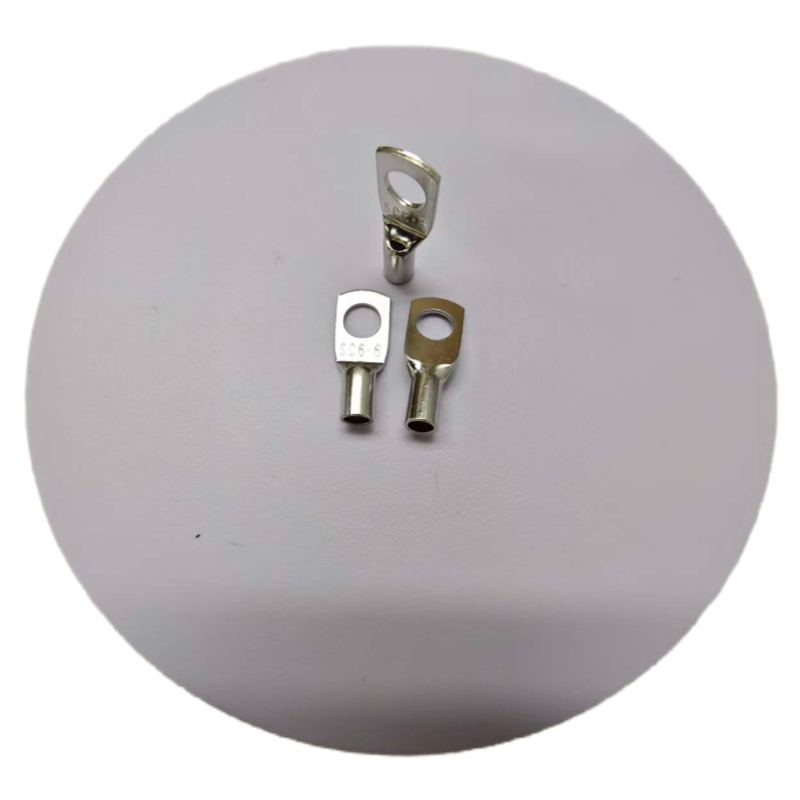

SC6-6 Copper Lugs – 6mm2 M6 Cable Terminals – Xluig Brand
PRODUCT PARAMETERS
Description
Buy professional SC6-6 Copper Cable Lugs at Xluig. Made of 99.9 percent pure T2 copper with tin plating. Designed for 6mm2 wire and M6 bolt connections. Reliable for industrial power.
Dimensions
Data Overview
| Model No. | Wire Range (mm2) | Bolt Hole (mm) | D (mm) | d (mm) | L (mm) | B (mm) | L1 (mm) |

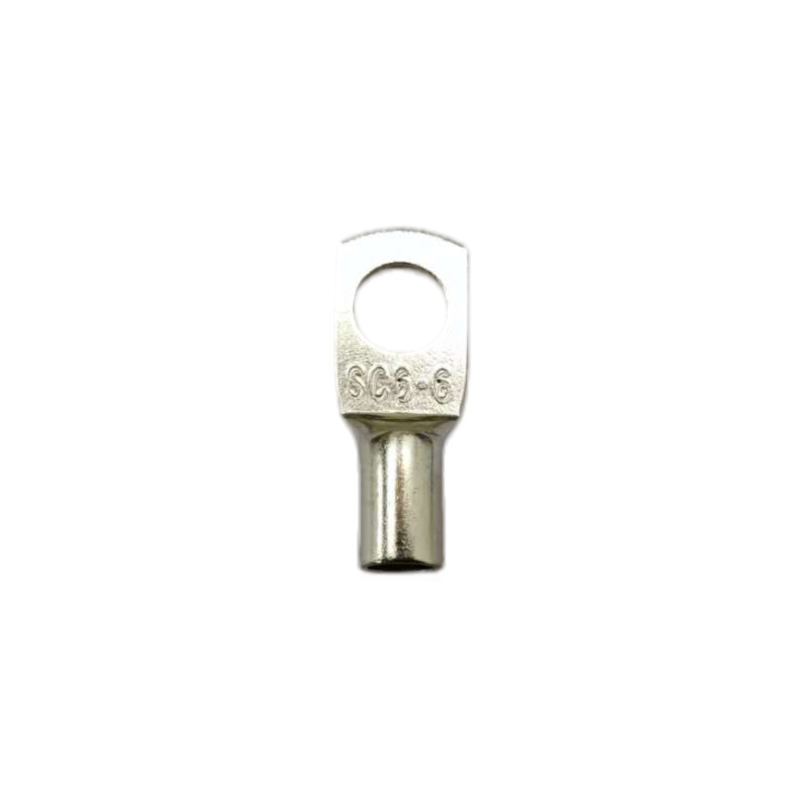

| SC6-6 | 6 mm2 | 6.5 (M6) | 6.0 | 4.1 | 24.0 | 10.0 | 9.0 |
Product Features & Engineering Logic
| Engineering Features | Technical Advantages | Professional Value |
| High-Conductivity T2 Copper | Minimizes voltage drop and heat buildup even under continuous high-current loads. | Operational Safety: Protects your equipment from overheating and reduces long-term energy costs. |

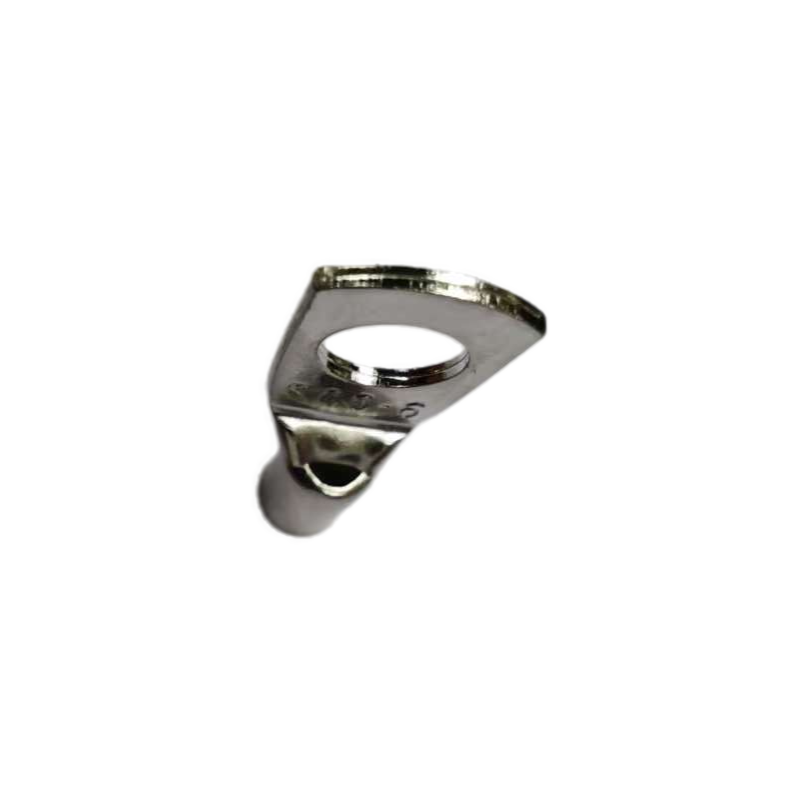

| Integrated Inspection Window | Allows technicians to visually confirm the depth of the wire insertion before crimping. | Quality Assurance: Eliminates the risk of “blind crimps” and ensures a 100 percent reliable electrical joint. |
| Flared Bell-Mouth Entry | Guides multi-stranded wires effortlessly into the barrel without strand fold-back. | Labor Efficiency: Drastically speeds up assembly time in high-volume production or field repairs. |
| Professional Tin-Plated Finish | Creates a stable contact surface that prevents chemical corrosion and galvanic reactions. | System Longevity: Ensures the connection maintains its low-resistance properties for decades of service. |
FAQs
Q: Can SC6-6 lugs be used with both stranded and solid copper wires?
A: Yes. While they are primarily designed for stranded cables due to the flared bell-mouth entry, SC6-6 lugs provide a secure, high-conductivity termination for any 6mm2 copper conductor.
Q: What is the purpose of the inspection hole on the SC6-6?
A: The inspection window is a critical safety feature. It allows the installer to see that the wire has reached the end of the barrel, ensuring that the crimp will capture the full cross-section of the conductor.
Q: Are these lugs suitable for marine or outdoor environments?
A: Absolutely. Our SC6-6 lugs are treated with a thick layer of industrial tin plating. This coating prevents the T2 copper from oxidizing when exposed to moisture and salt spray, making them ideal for marine and solar applications.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
