PRODUCT PARAMETERS
Description

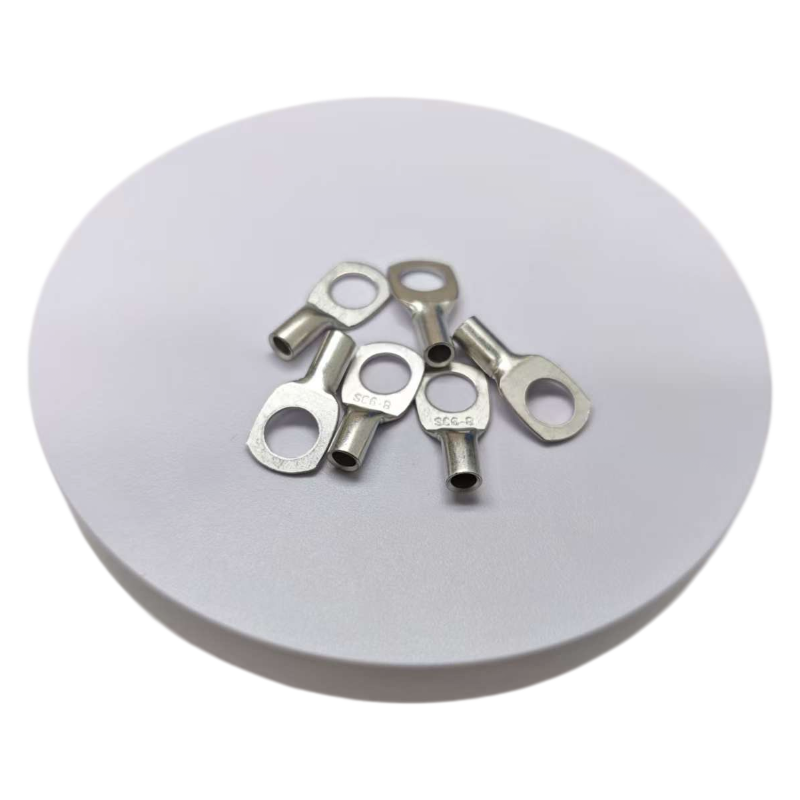

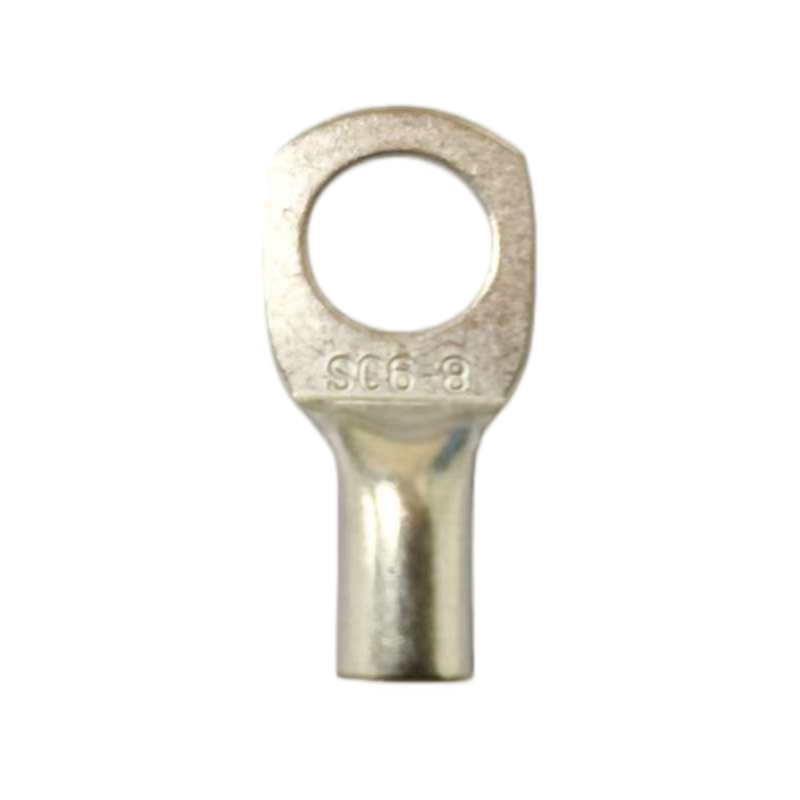

Shop Xluig SC Series standard copper tube terminals. High-conductivity T2 copper with professional tin plating. Trusted by global leaders for reliable electrical termination.
Dimensions
Data Overview
| Model No. | Wire Size (mm²) | Wire Size (AWG) | Stud Hole (M) | Barrel I.D. (mm) | Barrel O.D. (mm) | Total Length (mm) |
| SC1.5 | 1.5 | 16 | M4 / M5 | 1.8 | 3.3 | 18.5 |
| SC6 | 6 | 10 | M5 / M6 / M8 | 3.8 | 5.5 | 24.0 |
| SC10 | 10 | 8 | M6 / M8 | 4.8 | 6.8 | 25.5 |
| SC16 | 16 | 6 | M6 / M8 / M10 | 5.8 | 8.0 | 30.5 |
| SC35 | 35 | 2 | M8 / M10 / M12 | 8.5 | 11.0 | 39.5 |
| SC70 | 70 | 2/0 | M10 / M12 | 12.0 | 15.0 | 50.0 |
| SC150 | 150 | 300 MCM | M12 / M14 / M16 | 16.5 | 21.0 | 69.5 |
| SC240 | 240 | 500 MCM | M16 / M20 | 21.0 | 26.0 | 92.0 |
Product Features & Engineering Logic
| Key Performance | Feature (F) | Advantage (A) | Benefit (B) |
| Power Stability | Precision-Annealed T2 Copper | Prevents barrel cracking and ensures high ductility during crimping. | System Safety: Eliminates overheating and fire risks under heavy electrical loads. |
| Durability | Uniform Electro-Tin Coating | Creates a reliable chemical barrier against moisture and salt-air oxidation. | Long Life: Ensures maintenance-free performance in harsh marine or outdoor environments. |
| Work Efficiency | Tapered Internal Barrel | Directs wire strands into the lug smoothly without snagging or fraying. | Labor Savings: Speeds up high-volume assembly line production and field wiring tasks. |
| Reliability | Universal SC Dimensions | Seamlessly matches standard industry crimping tools and power panels. | Easy Integration: No specialized tooling required, reducing global deployment complexity. |
FAQs

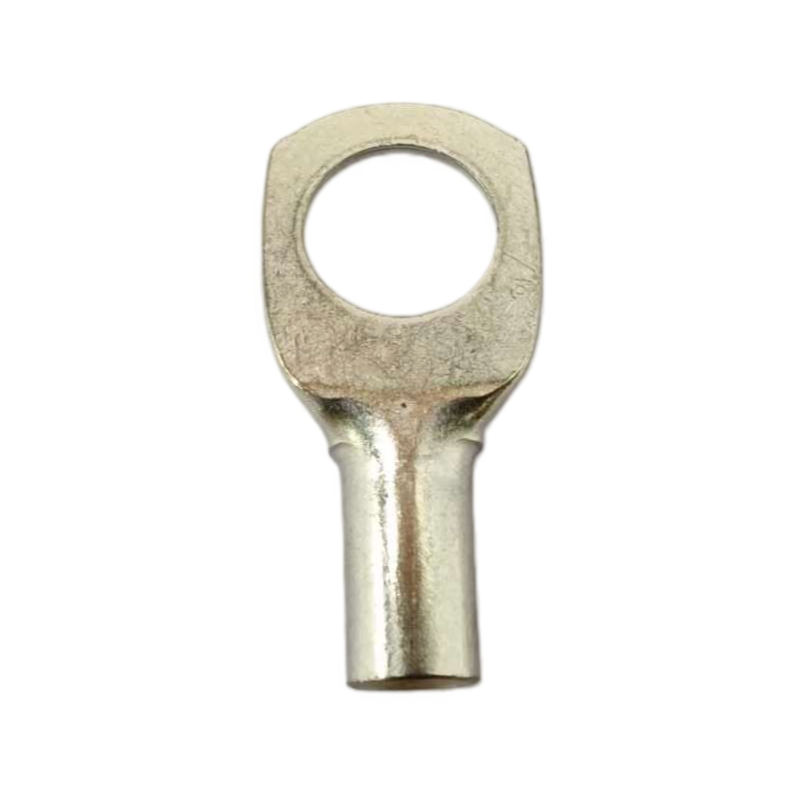

Q: Why does Xluig use an inspection hole in the SC series?
A: Safety first. The inspection hole allows technicians to visually confirm the cable is fully seated before crimping, ensuring a gas-tight and vibration-resistant connection.
Q: Can I customize the palm width or stud size for restricted spaces?
A: Yes. Xluig provides full R&D support. If the standard SC series palm is too wide for your breaker, we can offer custom dimensions or our T Series (Narrow Palm) variants.
Q: Is the tin plating thickness sufficient for offshore applications?
A: Absolutely. Our electro-tin plating undergoes rigorous salt spray testing to ensure it meets the durability requirements of the shipping and offshore wind industries.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
