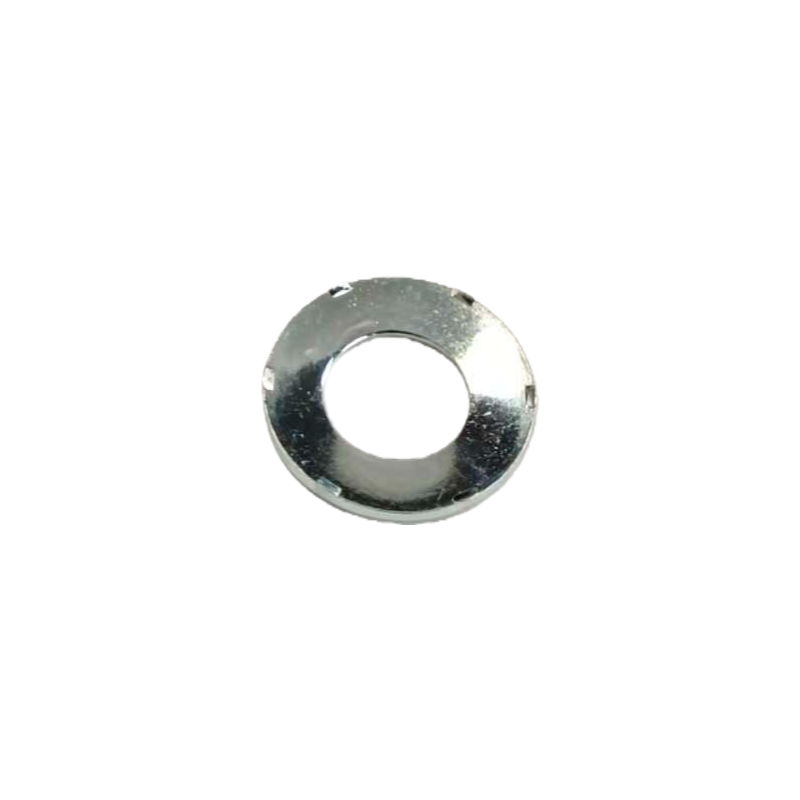

Professional DIN 6795 French type grounding washers in spring steel with zinc plating. Engineered for reliable electrical bonding and vibration resistance in electrical installations.
Dimensions
Data Overview
Size (Metric)
Inner Dia (di) [mm]
Outer Dia (do) [mm]
Thickness (s) [mm]
Height (h) [mm]
M4
4.1
8.2
0.8
1.2
M5
5.1
10.2
1.0
1.5
M6
6.1
12.2
1.2
1.8
M8
8.2
16.2
1.4
2.1
M10
10.2
20.2
1.6
2.4
M12
12.4
24.2
1.8
2.7
M16
16.4
32.5
2.5
3.8
Product Features & Engineering Logic
Key Feature
Technical Specification
Operational Benefit (Trust Driver)
Contact Teeth
Specialized radial sharp edges.
Pierces through paint, varnish, and rust to establish reliable metal-to-metal contact.
Material Strength
Hardened High-Grade Spring Steel.
Provides the necessary spring force to maintain axial tension and prevent joint relaxation.
Surface Treatment
Zinc Plating (Electro-Galvanized).
Offers essential corrosion resistance while maintaining efficient electrical surface conductivity.
Conical Profile
Engineered disc spring geometry.
Compensates for structural settling and thermal expansion in electrical busbars and panels.
FAQs
Q1: Can DIN 6795 washers be used with stainless steel bolts?
Yes. While these washers are zinc-plated spring steel, they are commonly used with various bolt grades to establish grounding. For highly corrosive environments, ensure the zinc plating thickness meets your specific salt spray requirements.
Q2: What is the difference between DIN 6795 and standard internal/external tooth
DIN 6795 (French Type) combines the features of a conical spring washer and a tooth washer. It provides significantly higher axial force and better surface penetration, making it superior for heavy-duty electrical earthing.
Product Attributes
Property
Details
Industry
Industrial Fastener
Brand Name
XLUIG (Kunshan Xinluan New Material Technology Co., Ltd)
Place of Origin
Jiangsu, China
Certificate
ISO 9001:2015 Certified
Thread Size
Customized sizes available
MOQ
5,00 Pieces
OEM / ODM
Support (Based on technical drawings)
Samples
Available upon request
Supply Ability
Service Items
Details & Specifications
Packaging
Small boxes, plastic bags, bulk cartons, and wooden pallets
