Full view of the Change Line Cable Grip Type RA, showing the double-sided mesh body for connecting new and old wire ropes.

Close-up of the crimped terminal connection point of the RA type grip, highlighting the compression sleeve material options.

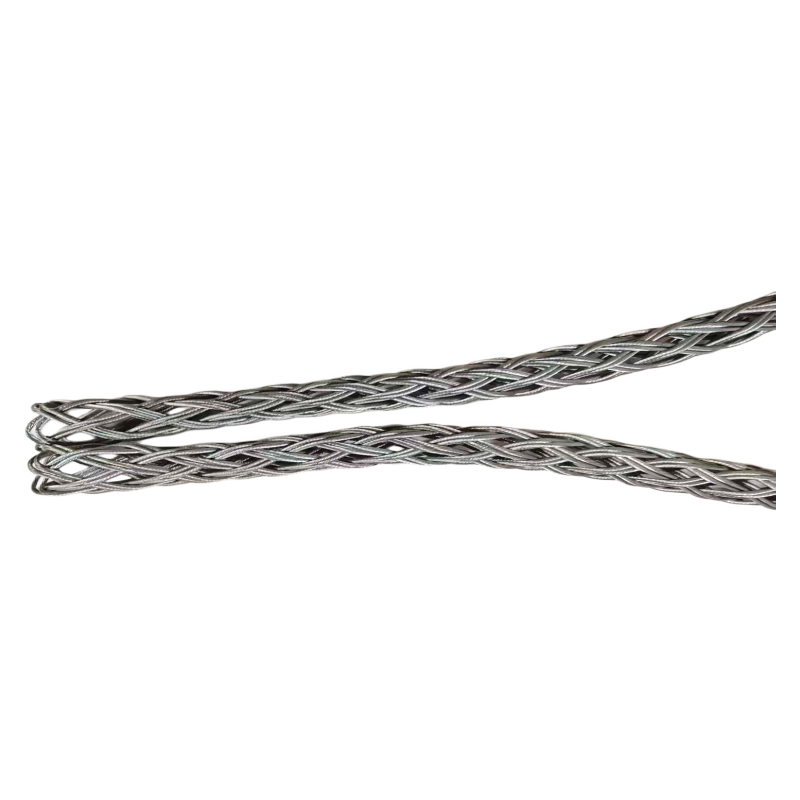

Close-up detail of the woven wire mesh body of the RA grip, showing the construction used for strong traction during line replacement.

Product Parameters

Product Series: Change Line Cable Grip Type RA.
Primary Function: Mainly used for the replacement of wire rope or cable.
Operation Method: One end connected to the new cable, one end connected to the old cable, replaced through the rotation of the crane or hoist.
Material Options: Cable grip materials include hot-dip galvanized, stainless steel 304, and stainless steel 316.
Compression Parts: Compression connection parts utilize aluminum alloy, stainless steel, or copper sleeve compression.
Diameter Range: Accommodates cable sizes from 8mm up to 110mm.
Load Performance: Breaking loads range from 400kg up to 9000kg.

Found this item cheaper? Contact our customer sales team and we'll look to price match.

Request Quote

Description

Application Areas

Request A Quote

Description

Manufacturer of Change Line Cable Grip Type RA. Primarily used for the replacement of old wire rope or cable by connecting new and old lines. Available in materials like hot-dip galvanized or stainless steel 304/316. Features a high breaking load up to 9000kg.

Dimensions

Data Overview

Model	Size Range (Diameter mm)	Total length (mm)	Breaking load (kg)
RA-11	8-11	1040	400
RA-13	11-13	1210	800
RA-16	13-16	1410	800
RA-21	16-21	1520	1100
RA-25	21-25	1920	1300
RA-30	25-30	2020	2100
RA-35	30-35	2480	2400
RA-42	35-42	2680	2800
RA-50	42-50	3280	3300
RA-60	50-60	3280	6000
RA-70	60-70	2650	8000
RA-80	70-80	3320	9000
RA-90	80-90	3450	9000
RA-100	90-100	3650	9000
RA-110	100-110	3900	9000

Product Features & Engineering Logic

Key Area	Feature	Advantage	Benefit
Functionality	Designed specifically for the replacement of old wire rope or cable.	Streamlines the process of changeover by allowing continuous connection between the old and new lines.	Efficiency: Minimizes downtime during maintenance, facilitating a quick and smooth replacement procedure using existing crane or hoist equipment.
Load Capacity	Handles exceptionally high breaking loads, up to 9000kg.	Capable of managing the tension and weight associated with large industrial wire ropes and heavy cables.	Reliability: Ensures safe and secure pulling operations even for the largest diameter cables.
Material Durability	Available in hot-dip galvanized or Stainless Steel 304/316.	Offers excellent resistance to corrosion, wear, and high mechanical stress.	Longevity: Suitable for continuous use in harsh industrial and outdoor environments (e.g., marine, construction).
Connection Integrity	Compression parts use aluminum alloy, stainless steel, or copper sleeve compression.	Provides a strong, reliable, and consistent connection point between the grip and the pulling mechanism.	Safety: Reduces the risk of failure or slippage during high-tension change line operations.
