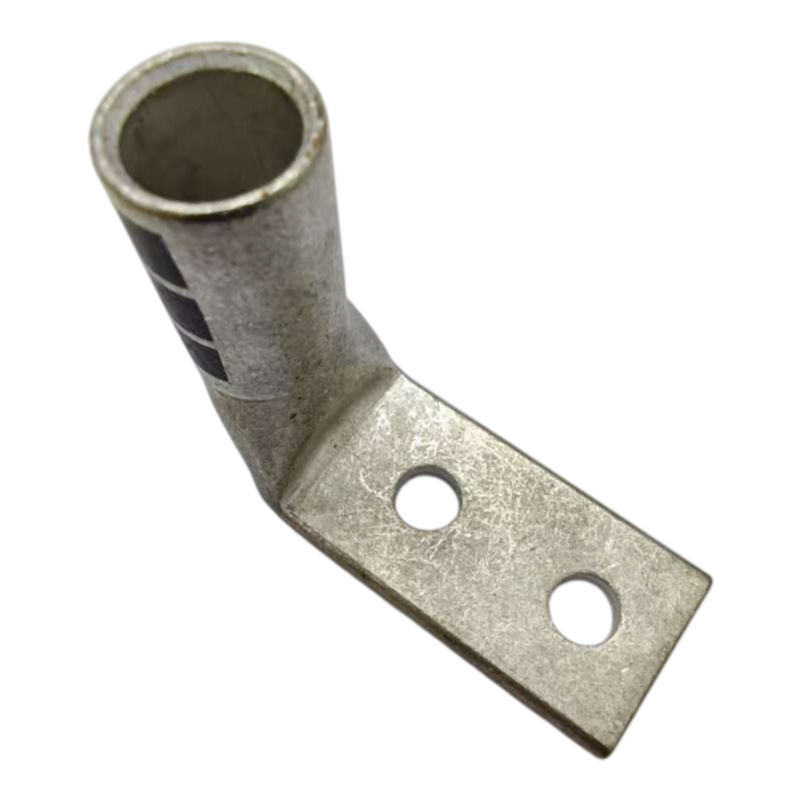

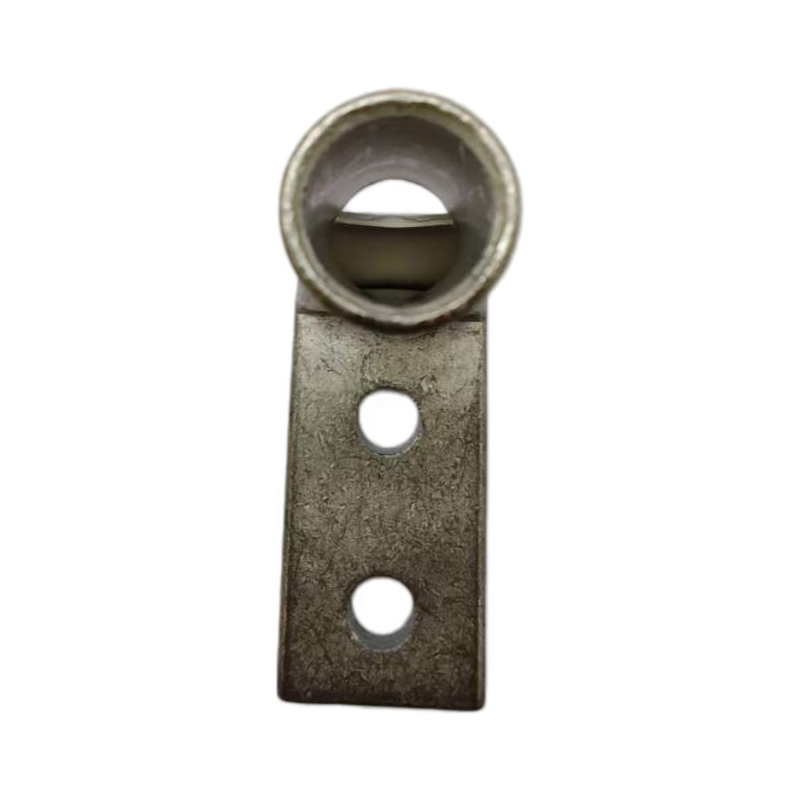

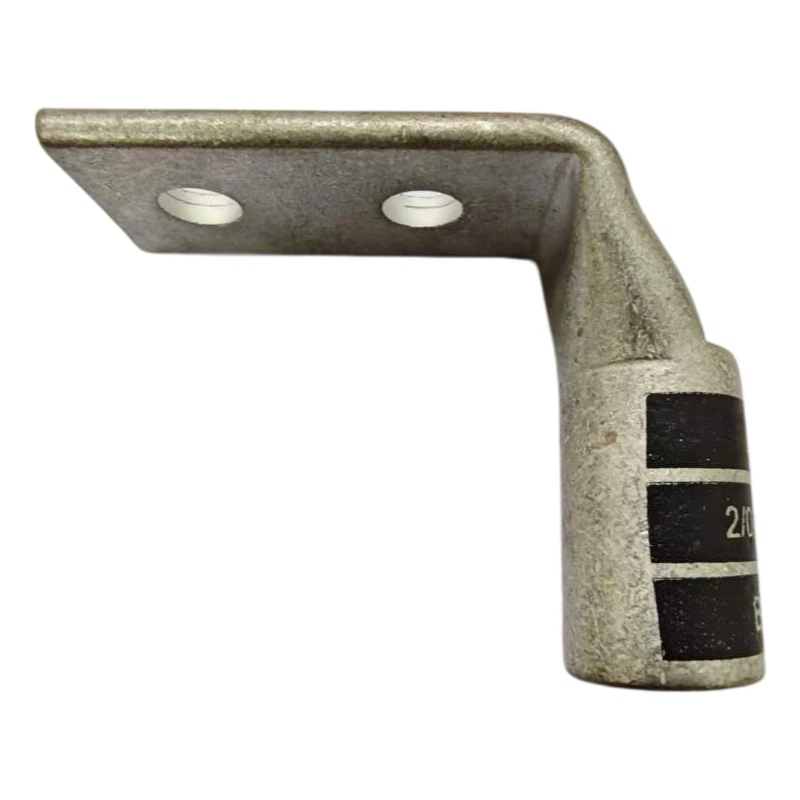

90 Degree 2/0 AWG Copper Compression Lug | Two Hole 3/8″ Stud with 1″ Spacing | Black Color Coded – XLUIG
PRODUCT PARAMETERS
Description
Shop XLUIG 90 Degree 2/0 AWG Copper Lugs. High-purity T2 copper, two-hole 3/8″ stud with 1″ spacing, black color coded (Die 45). Ideal for space-constrained industrial grounding.
Dimensions
Data Overview
| XLUIG Model No. | Wire Size (AWG) | Stud Hole Size | Hole Spacing | Color Code | Die Index | W (mm) | B (mm) | L (mm) |
| XL-2/0-06-2-90 | 2/0 AWG | 1/4″ | 0.625″ | Black | 45 | 20.6 | 21.1 | 46.5 |
| XL-2/0-06S-2-90 | 2/0 AWG | 1/4″ | 0.75″ | Black | 45 | 20.6 | 21.1 | 49.7 |
| XL-2/0-08-2-90 | 2/0 AWG | 5/16″ | 0.875″ | Black | 45 | 20.6 | 21.1 | 51.3 |
| XL-2/0-10-2-90 | 2/0 AWG | 3/8″ | 1.0″ | Black | 45 | 20.6 | 21.1 | 54.5 |
| XL-2/0-12-2-90 | 2/0 AWG | 1/2″ | 1.75″ | Black | 45 | 20.6 | 21.1 | 80.9 |
Product Features & Engineering Logic
| Engineering Specifications | Operational Advantages | Professional Business Value |
| Precision 90-Degree Configuration | Enables clean right-angle wire entry in compact spaces where straight lugs cannot be installed. | Design Flexibility: Maximizes usable space within control panels and significantly reduces cable stress. |
| Seamless Electrolytic T2 Copper | High-strength seamless tube construction prevents the barrel from splitting under high-pressure hydraulic crimping. | System Integrity: Guarantees a low-resistance, permanent connection that protects mission-critical industrial equipment. |
| Dual-Hole 1″ Spacing Design | Distributes mechanical load and prevents terminal rotation during installation or under high-vibration conditions. | Safety Assurance: Maintains a permanent, maintenance-free grounding path, reducing the risk of arc-flashes or loose connections. |

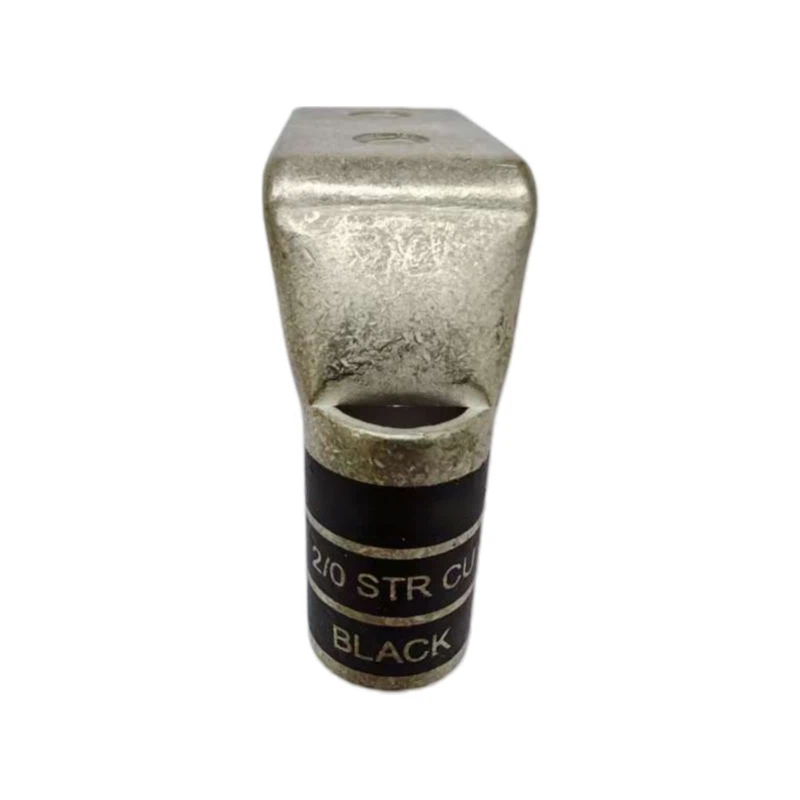

| Black/45 Visual ID System | Instantly identifies the terminal as 2/0 AWG, allowing installers to select the correct crimping die in seconds. | Labor Efficiency: Drastically speeds up large-scale electrical installations and eliminates costly human errors in the field. |
FAQs
Q: Does XLUIG offer different hole spacings for the 2/0 AWG 90-degree series?
A: Yes. While 1″ spacing is our most popular configuration for 3/8″ studs, XLUIG provides a full range of spacings from 0.625″ to 1.75″ to match various industrial busbar standards. Please refer to our Data Overview table for specific model numbers.
Q: Can these 90-degree lugs be used in outdoor grounding systems?
A: Absolutely. All XLUIG 2/0 AWG lugs are made of 99.9% pure T2 copper and feature a heavy-duty electro-tin plating. This finish provides excellent resistance to corrosion and oxidation, making them reliable for both indoor and outdoor power applications.
Q: What is the Die Index for the black color-coded 2/0 AWG series?
A: The XLUIG 2/0 AWG series uses Die Index 45. Using the correct die ensures a professional, gas-tight compression that meets UL and industry safety standards for high-current electrical connections.
Product Attributes
| Property | Details |
| Industry | Industrial Fastener |
| Brand Name | XLUIG (Kunshan Xinluan New Material Technology Co., Ltd) |
| Place of Origin | Jiangsu, China |
| Certificate | ISO 9001:2015 Certified |
| Thread Size | Customized sizes available |
| MOQ | 5,00 Pieces |
| OEM / ODM | Support (Based on technical drawings) |
| Samples | Available upon request |
Supply Ability
| Service Items | Details & Specifications |
| Packaging | Small boxes, plastic bags, bulk cartons, and wooden pallets |
| Supply Ability | 50,000,000 Piece/Pieces per Month |
| Transportation | Land, Ocean, Air, and Express Delivery |
| Port of Loading | Shanghai, Ningbo, Tianjin |
| Payment Type | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
