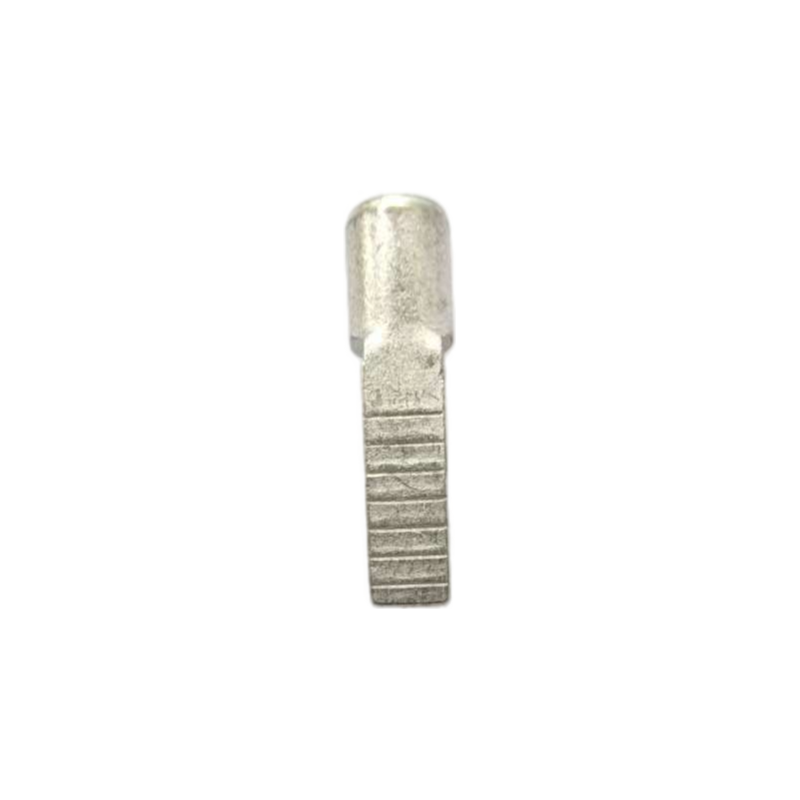

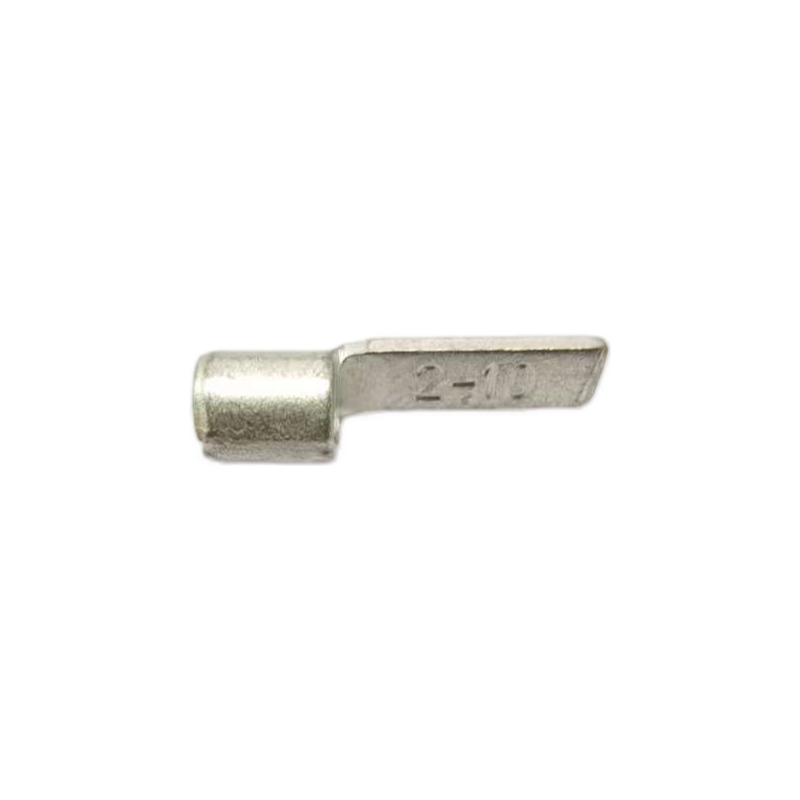

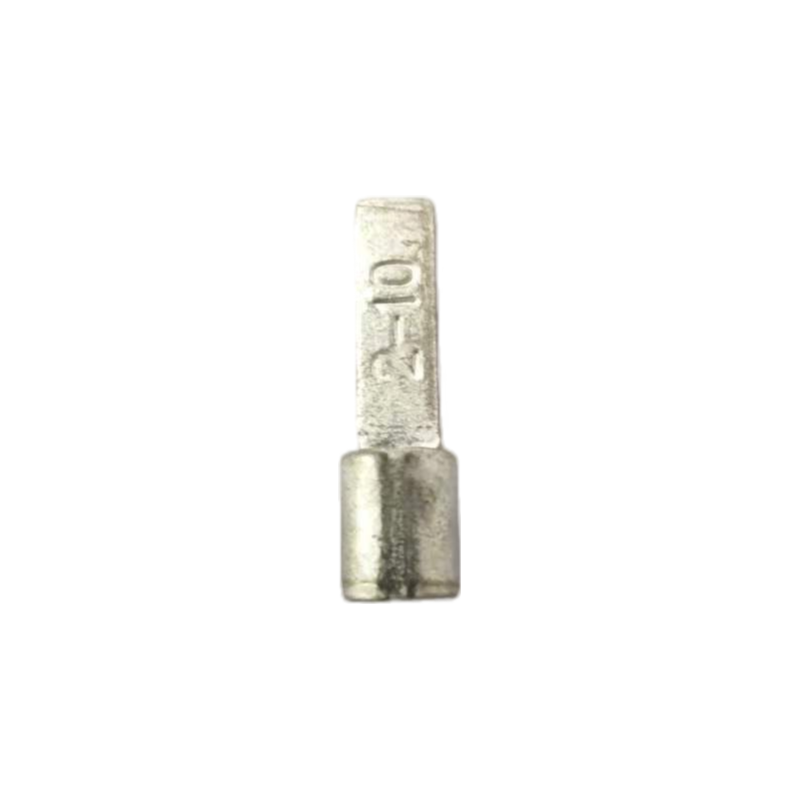

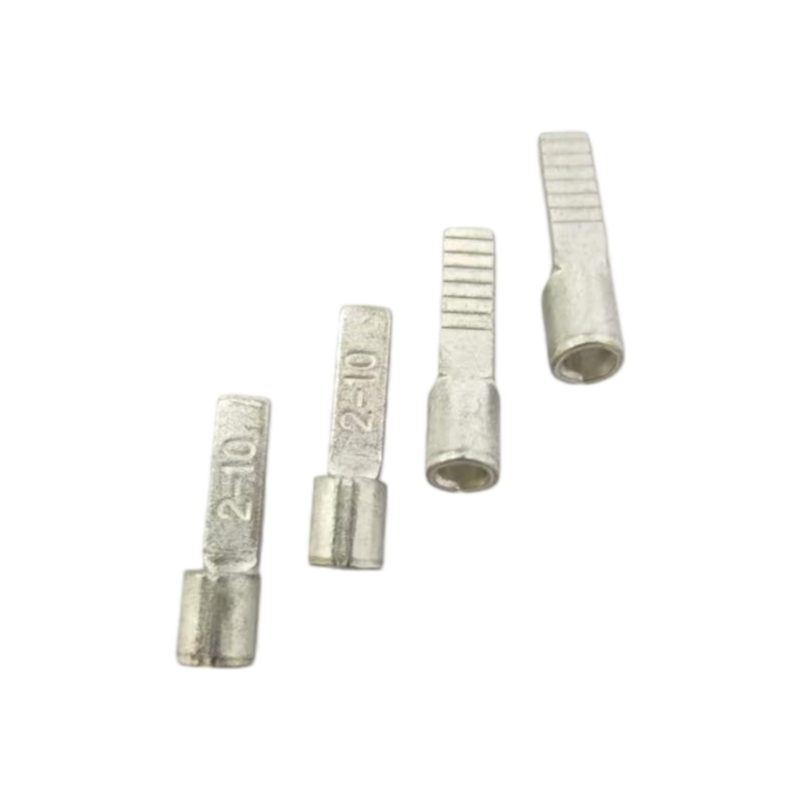

16-14 AWG Non-Insulated Pin Terminal | TPIN2F-10/3.0 Copper Needle Connector
PARÁMETROS DEL PRODUCTO
Descripción
Compra profesional TPIN2F-10/3.0 Pin Terminals at XLUIG. Clasificado para 16-14 AWG, features high-purity T2 copper with tin plating for optimal conductivity in tight terminal blocks.
Características del producto y lógica de ingeniería
| Engineering Architecture | Rendimiento técnico | Valor operativo |
| High-Purity T2 Copper Base | Provides nearly 100% electrical conductivity, minimizing thermal buildup at high current densities. | Ahorro de Energía: Reduces voltage drop and energy loss, ensuring cost-efficient industrial power distribution. |
| Needle/Pin Geometry | Allows for high-density wire termination in space-constrained European-style terminal blocks. | Optimización del espacio: Enables more compact cabinet designs and faster wiring in complex control panels. |
| Industrial Electro-Tin Layer | Creates a robust chemical barrier against moisture, salt spray, and atmospheric oxidation. | Confiabilidad del Sistema: Prevents the formation of high-resistance oxides, drastically reducing maintenance downtime. |
| Cilindro forjado sin costura | Ensures the barrel remains structurally intact under heavy crimping pressure without splitting. | Integridad de la conexión: Guarantees a permanent mechanical bond, eliminating the risk of accidental wire pull-out. |
Dimensiones
Resumen de datos
| Número de artículo: | Rango de cable (AWG) | Rango de cable (mm2): | Longitud del pin (mm) | Pin Diameter (mm) | Barrel ID (mm) | Material | Acabado |
| TPIN2F-10/3.0 | 16-14 AWG | 1.5 – 2.5 | 10.0 | 3.0 | 2.3 | Cobre T2 | Plateado con estaño |
| TPIN1F-10/2.0 | 22-16 AWG | 0.5 – 1.5 | 10.0 | 2.0 | 1.7 | Cobre T2 | Plateado con estaño |
| TPIN5F-10/4.0 | 12-10 AWG | 4.0 – 6.0 | 10.0 | 4.0 | 3.4 | Cobre T2 | Plateado con estaño |
Preguntas Frecuentess
Q: Why use a pin terminal (Needle Terminal) instead of a standard lug?
A: Pin terminals like the TPIN2F-10/3.0 are specifically designed for terminal blocks and PLC ports where a wide ring or spade lug simply won’t fit. The narrow needle shape ensures a secure connection in tight spaces, preventing wire strands from fraying or short-circuiting during insertion.
Q: Is the TPIN2F-10/3.0 compatible with solid and stranded wire?
A: Absolutely. While pin terminals are most commonly used to “bundle” stranded wire for easy insertion, they are equally effective with solid copper wire. XLUIG’s T2 copper construction allows for a high-compression cold-weld crimp on both wire types.
Q: Does XLUIG offer custom pin lengths for the TPIN series?
A: Yes. As a professional manufacturer (Kunshan Xinluan), we can customize the pin length (e.g., 12mm or 15mm) and diameter to match your specific terminal block requirements. Our standard 10mm pin is optimized for the majority of industrial European-style connectors.
Atributos del Producto
| Propiedad | Detalles |
| Industria | Elemento de fijación industrial |
| Nombre de la Marca | XLUIG (Kunshan Xinluan Tecnología de Materiales Nuevos, S.L.) |
| Lugar de Origen | Jiangsu, China |
| Certificado | Certificación ISO 9001:2015 |
| Tamaño de Hilo | Tamaños personalizados disponibles |
| MOQ | 5.000 Piezas |
| OEM / ODM | Soporte (Basado en dibujos técnicos) |
| Muestras | Disponible bajo petición |
Capacidad de Suministro
| Artículos de servicio | Detalles y Especificaciones |
| Embalaje | Cajas pequeñas, bolsas de plástico, cartones a granel y palés de madera |
| Capacidad de Suministro | 50.000.000 de piezas por mes |
| Transporte | Terrestre, marítimo, aéreo y entrega exprés |
| Puerto de carga | Shanghai, Ningbo, Tianjin |
| Tipo de pago | T/T |
| Incoterm | FOB, CIF, EXW, DDP |
