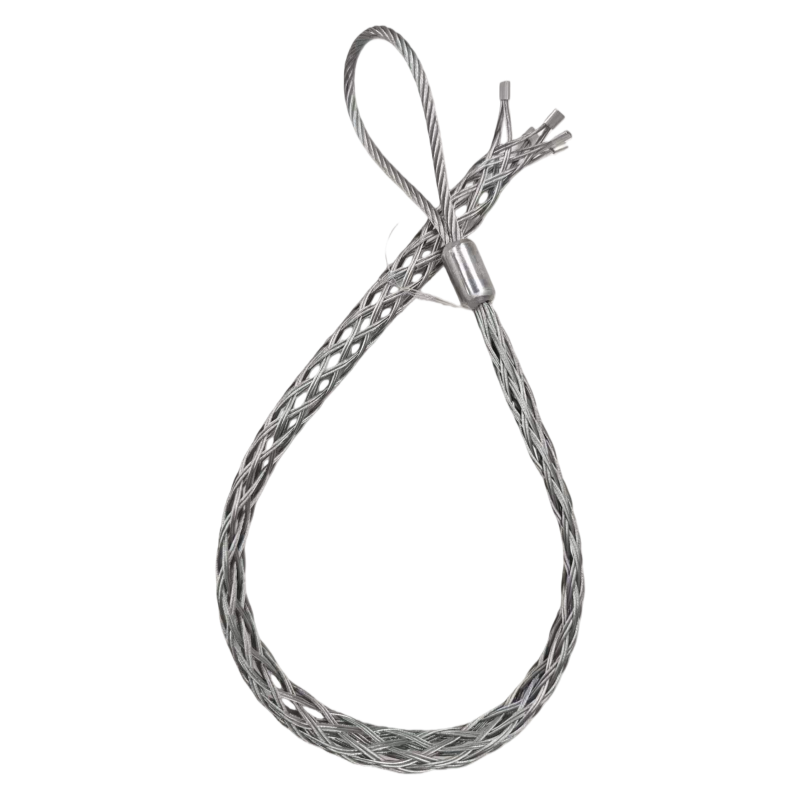

MGS-M Dragging Cable Grip | Heavy-Duty Middle Load Cable Pulling Sock
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description
High-strength MGS-M Dragging Cable Grip designed for middle-load cable head traction. Features multi-strand weaving for superior grip with breaking loads up to 20,000kg.
Dimensions
Data Overview
| Model | Size Range (mm) | Mesh Length (mm) | Total Length (mm) | Breaking Load (kg) |
| MGS-13M | 10-13 | 350 | 450 | 800 |
| MGS-35M | 25-35 | 600 | 840 | 3,500 |
| MGS-60M | 49-60 | 900 | 1,200 | 8,000 |
| MGS-101M | 88-101 | 1,300 | 1,600 | 11,000 |
| MGS-152M | 124-152 | 1,400 | 1,750 | 15,000 |
| MGS-320M | 280-320 | 1,600 | 2,000 | 20,000 |
Product Features & Engineering Logic
| Dimension | Feature | Advantage | Benefit |
| Load Capacity | Rated for Middle Load operations. | Supports breaking loads up to 20,000kg. | Operational Security: Handles heavy industrial cables without risk of breakage. |

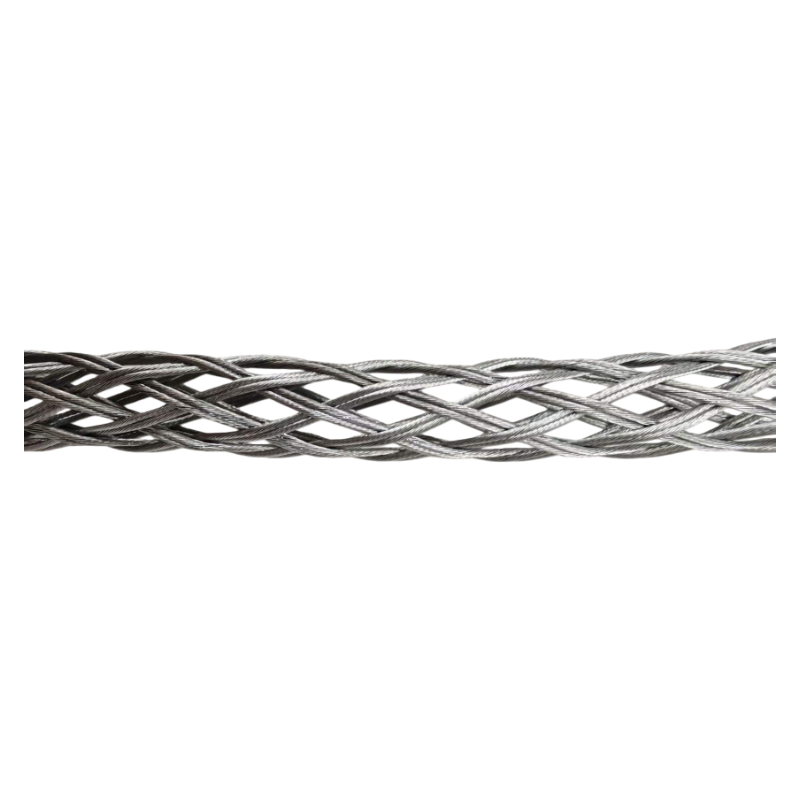

| Mesh Design | Multi-strand weaving pattern. | Increases the contact surface area and friction on the cable jacket. | Cable Protection: Provides a secure grip while preventing damage to expensive insulation. |

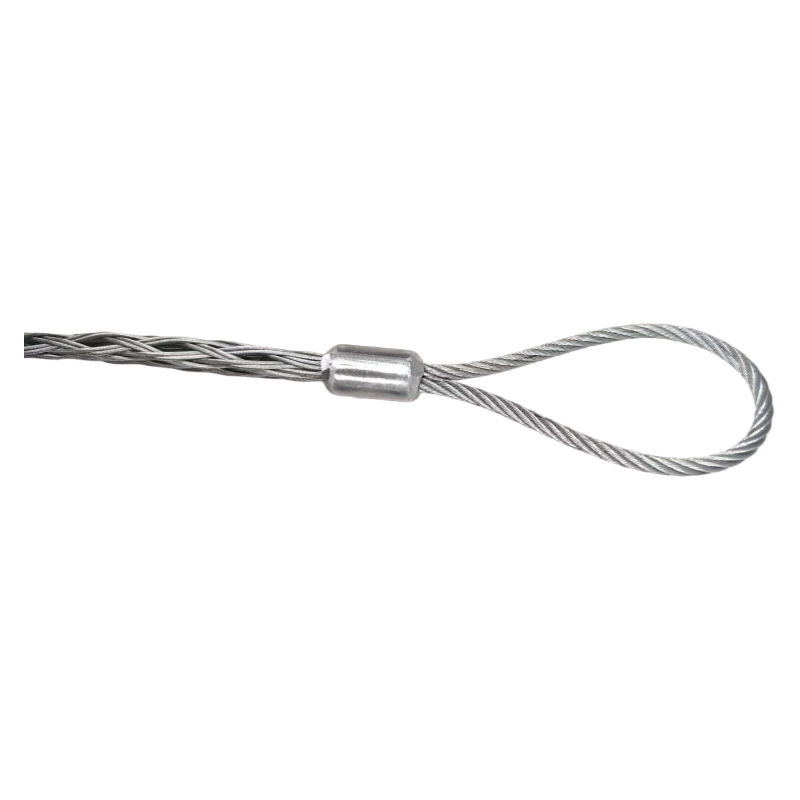

| Durability | High-strength compression sleeve joints. | Resists mechanical wear and heavy impacts during dragging. | Cost Efficiency: Designed for long-term repeated use in harsh environments. |
| [SUPPLEMENT] Customization | Tailored length and material. | Can be customized to meet specific engineering safety factors (N=2 to N=5). | Project Precision: Ensures a perfect fit for non-standard cable sizes or specialized projects. |
FAQs
Q: In which scenarios should the MGS-M series be selected?
A: It is primarily used for cable head traction in electrical construction projects where a mid-load capacity is required for dragging heavy wires or steel ropes.
Q: What materials are recommended for underground or marine use?
A: We suggest SS316 Stainless Steel for highly corrosive environments, though our Hot-Dip Galvanized version is excellent for standard outdoor construction.
Q: Does the grip loosen during a pull?
A: No. The MGS-M features a self-tightening mesh design. The more tension applied during the traction, the tighter the grip becomes on the cable.
