Galvanized Steel Safety Rope | High-Pressure Hose Breakaway Cable | Customizable Length for Oilfield Rigging
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description

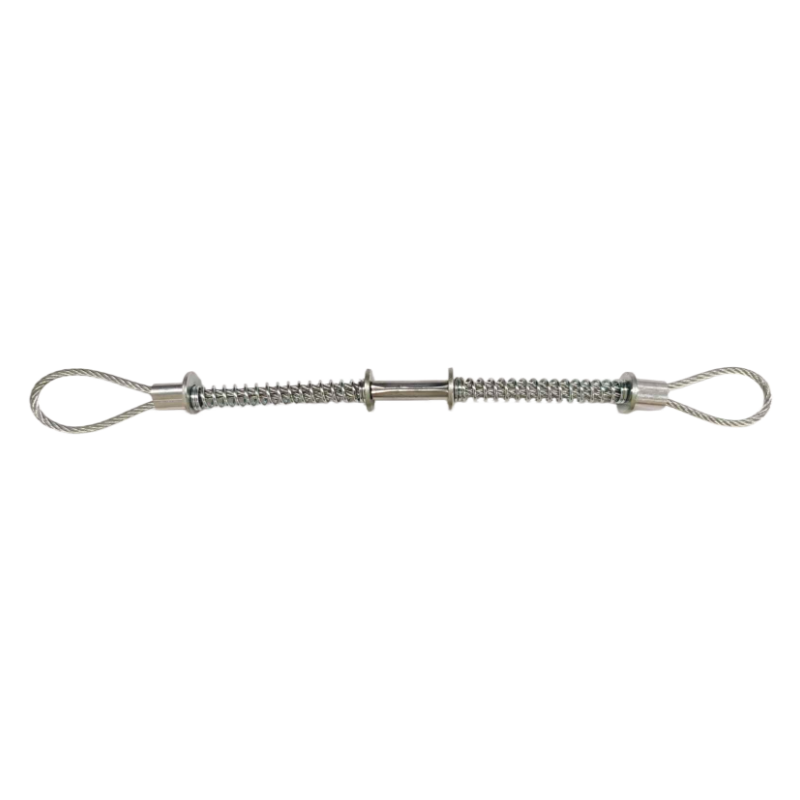

Source high-quality Galvanized Steel Safety Ropes designed to prevent high-pressure hose and oil tube sockets from breaking off. Features high tension, corrosion resistance, and customizable length (30cm-150cm) for harsh environments.
Dimensions
Data Overview
| Rope Dia. (D) (mm) | Loop Length (B) (mm) | Available Total Lengths (L) (cm) |
| 3 | 40-45 | 30, 40, 50, 60, 70, 80, 100 |
| 4 | 50-55 | 30, 40, 50, 60, 70, 80, 100 |
| 5 | 60-65 | 60, 80, 100, 120, 150 |
| 6 | 60-70 | 60, 80, 100, 120, 150 |
| 8 | 95-105 | 80, 100, 120, 150 |
| 10 | 110-120 | 80, 100, 120, 150 |
| 12 | 130-140 | 100, 120, 150 |
Product Features & Engineering Logic
| Key Area | Feature | Advantage | Benefit |
| Core Safety Function | Designed to link and secure high-pressure hose sockets and oil tube ends. | Avoids severe damage to people and equipment if the primary connection fails. | Critical Risk Mitigation: Protects life and property in hazardous high-pressure work environments. |
| Durability & Environment | Constructed from Galvanized steel wire rope, offering strong strength and corrosion resistance. | Withstands the harsh, corrosive conditions common in offshore platforms and oilfields. | Maximum Reliability: Ensures long-term protective function, minimizing degradation and replacement costs. |
| Customization & Standards | Safety factor (N) can be produced according to requirements (e.g., N=2:1, N=3:1, N=4:1). | Ensures the rigging meets specific engineering and national safety standards. | Project Compliance: Guarantees suitability for diverse regulatory environments globally. |
| Installation Efficiency | Simple wire rope assembly that is documented as easy to install. | Allows quick and efficient deployment by field crews. | Operational Efficiency: Reduces installation time and minimizes equipment downtime during maintenance. |
FAQs
Q1: What material is the Safety Rope constructed from?

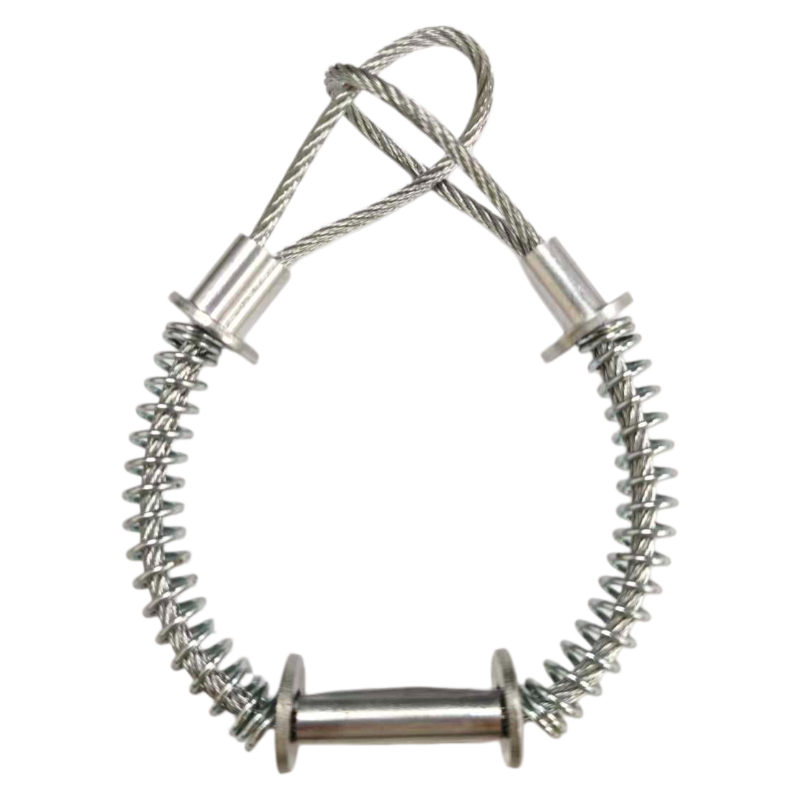

The safety rope is constructed from Galvanized steel wire rope and smooth steel wire rope.
Q2: Is the safety factor customizable?
Yes. The safety factor (N) can be produced according to requirements, with options including N=2:1, N=3:1, N=3.5:1, and N=4:1.
Q3: What is the primary function of this cable in an industrial setting?
Its primary function is to prevent the high pressure hose and the socket of oil tube from breaking off accidentally.
Q4: Are custom lengths available?
Yes, the rope length is customizable according to requirements. Standard lengths are available from 30cm up to 150cm
