PARÁMETROS DEL PRODUCTO

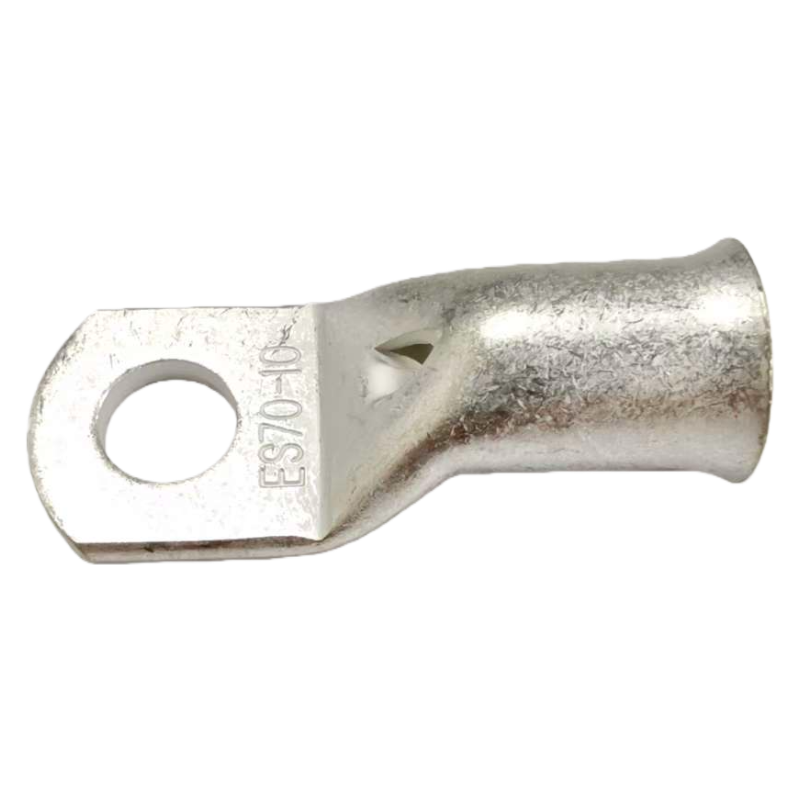

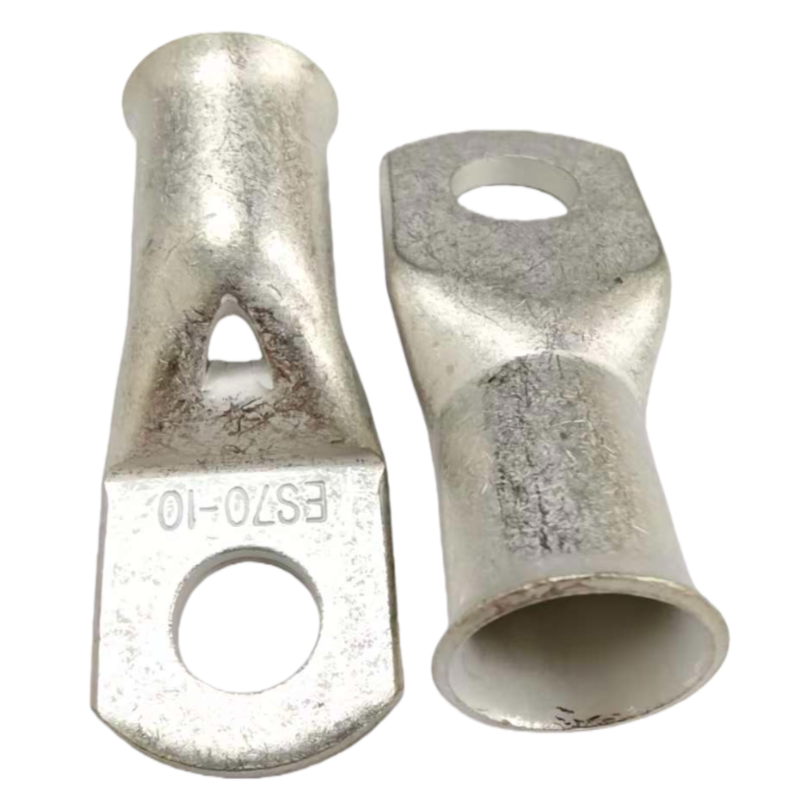

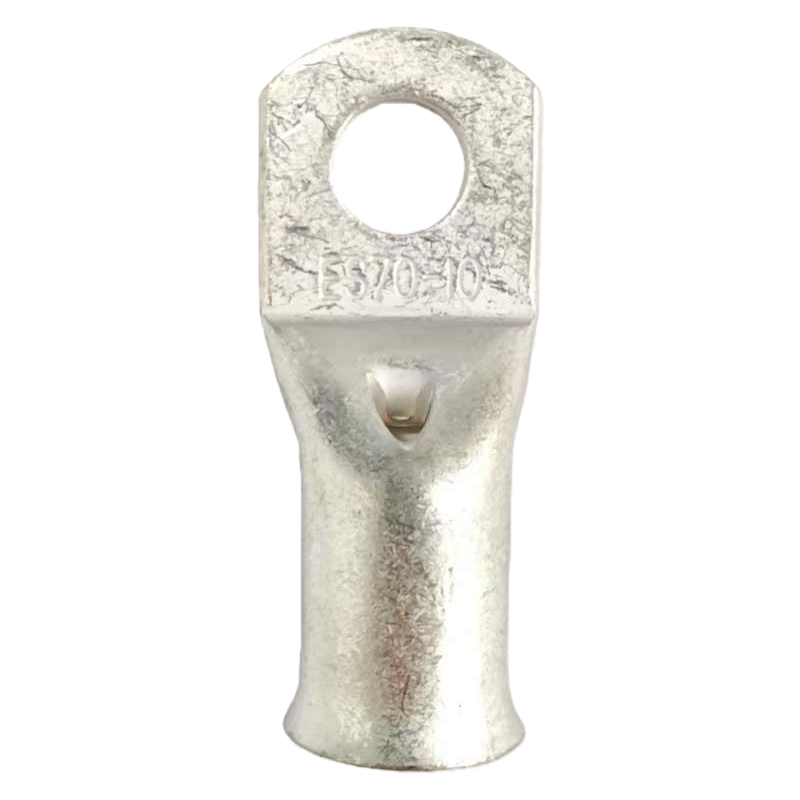

Model: ES70-10
Design: Bell-Mouth (Flare-End) for snag-free insertion of high-strand cables
Conductor Size: Fits 2/0 A.W.G. / 70 mm²
Stud Hole Size: M10 (10.5 mm)
Material: 99.9% High-Conductivity Seamless Copper
Finish: Electro-Tin Plated for superior oxidation resistance
Application: Ideal for Battery Banks, Inverters, RV Power Upgrades, and Marine Wiring.

SOLICITAR UNA COTIZACIÓN

Descripción

Preguntas frecuentes

Solicitar una cotización

Descripción

High-performance ES70-10 bell-mouth copper lug for 2/0 AWG (70mm²) cables. Features an 10.5mm (M10) stud hole and flare-end design for easy insertion of flexible strands. Tin-plated for maximum corrosion resistance in marine and solar systems.

Dimensiones

Resumen de datos

Item No.	Wire Range (mm²/AWG)	ΦE (mm) Stud Hole	ΦD (mm)	φd (mm)	W (mm)	B (mm)	L (mm)
ES70-8	70mm² (2/0)	8.3	15.0	11.5	21.5	22.0	51.0
ES70-10	70mm² (2/0)	10.5	15.0	11.5	21.5	22.0	54.0
ES70-12	70mm² (2/0)	13.0	15.0	11.5	21.5	22.0	54.0

cURL Too many subrequests.

cURL Too many subrequests.	Característica	Ventaja	Beneficio
Easy Installation	Bell-Mouth (Flare-End) entry design.	Prevents “stray strands” when inserting flexible 2/0 AWG cables into the barrel.	Efficiency: Reduces assembly time and ensures 100% of cable strands are included in the crimp for maximum safety.
Marine Reliability	Tin-Plated coating over a seamless copper body.	Protects the copper from “green death” corrosion in humid or salt-spray environments.	cURL Too many subrequests. cURL Too many subrequests.
