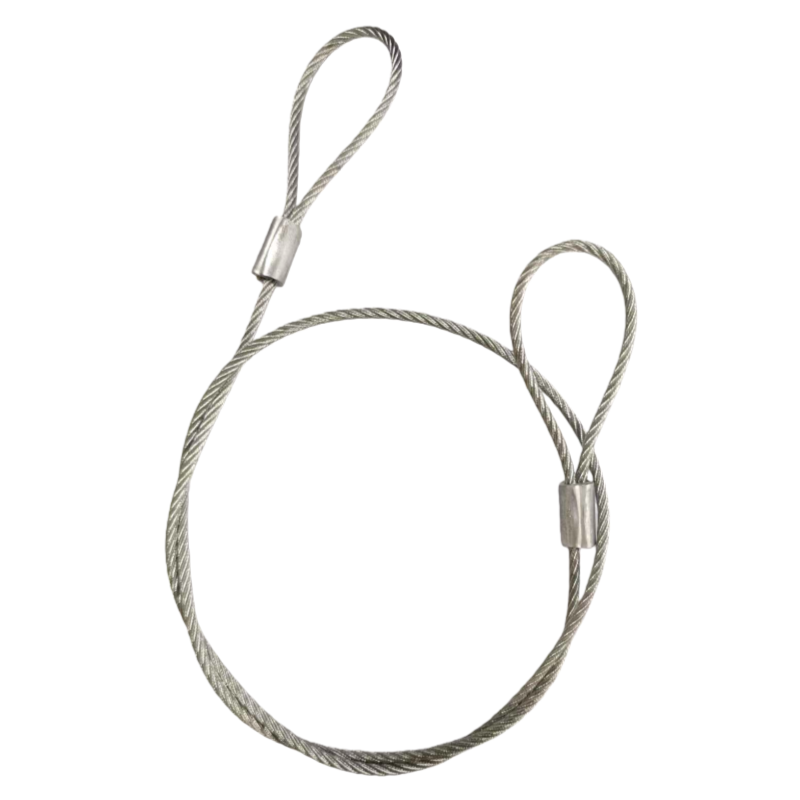

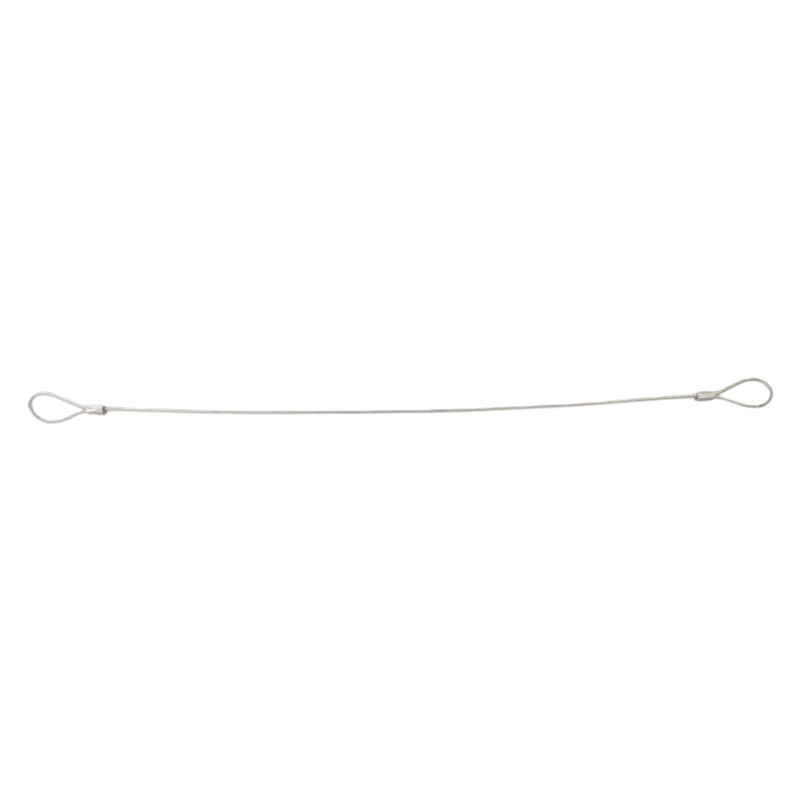

Custom Flexible Steel Wire Rope Rigging Slings (6x19M+WSC galvanized)
Product Parameters
Found this item cheaper? Contact our customer sales team and we'll look to price match.
Description
Purchase high-quality flexible steel wire rope slings (ZH series). Customizable length and safety factors (n=2:1 to n=5:1). WLL up to 8T for assured, industrial-grade lifting.
Dimensions
Data Overview
| Model | Rope Dia (mm) | WLL (Tonnes) | Eye Dia (mm) | Width (mm) | Thickness (mm) |
| ZH02409 | 2.4 | 0.95 | 150 | 18 | 6 |
| ZH03212 | 3.2 | 1.5 | 200 | 25 | 9 |
| ZH03212-1 | 3.2 | 1.6 | 200 | 25 | 9 |
| ZH00416 | 4.0 | 2.5 | 300 | 30 | 11 |
| ZH04818 | 4.8 | 3.2 | 300 | 34 | 12 |
| ZH04818-1 | 4.8 | 3.5 | 300 | 34 | 12 |
| ZH05622 | 5.6 | 4.8 | 300 | 42 | 15 |
| ZH06422 | 6.4 | 5.8 | 400 | 46 | 17 |
| ZH08428 | 8.4 | 8.0 | 400 | 58 | 18 |
Product Features & Engineering Logic
| Key Area | Feature | Advantage | Benefit |
| Structure & Material | Constructed with 6x19M+WSC galvanized steel wire rope. | Balances high structural strength with superior flexibility and abrasion resistance. | Assured Durability: Delivers reliable performance in demanding industrial environments, reducing wear-related failures. |
| Safety Compliance | Customizable safety factors (n=2:1 to n=5:1) tailored to order. | Allows precise alignment with strict site safety regulations and lifting standards. | Risk Mitigation: Ensures lifting operations meet all necessary legal and safety compliance margins. |
| Load Management | Available in diameters from 2.4mm to 8.4mm with WLL up to 8 Tonnes. | Covers a wide range of lifting requirements from light-duty positioning to heavy load suspension. | Operational Versatility: One reliable supplier for various rigging scenarios, simplifying procurement. |
| Custom Fabrication | Rope length is manufactured exactly to customer specifications. | Eliminates the need for on-site splicing or complex length adjustments. | Maximized Efficiency: Provides a “ready-to-lift” solution that saves installation time and labor costs. |
FAQs

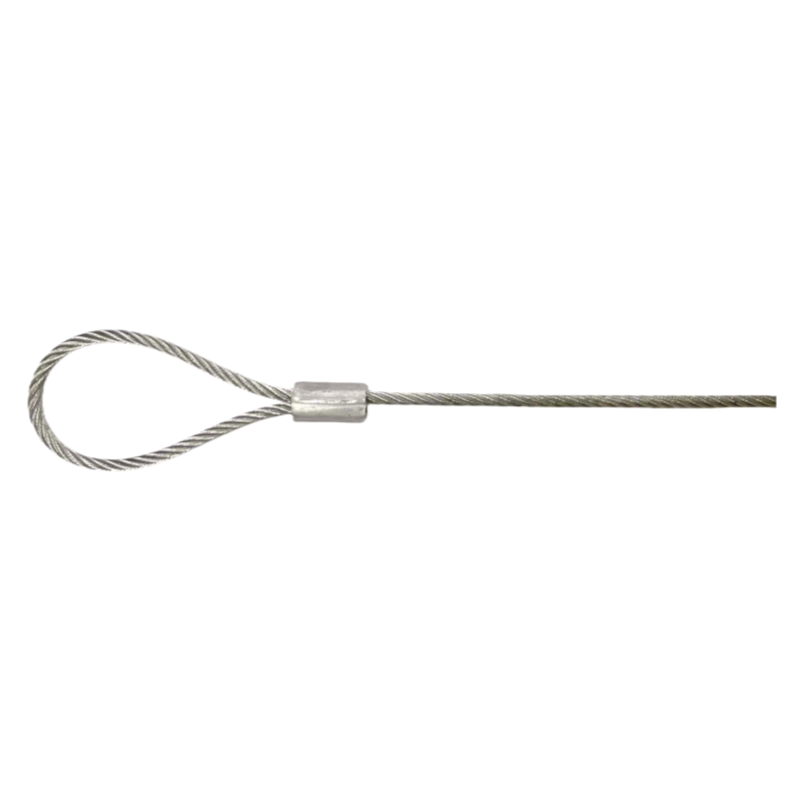

Q1: What makes the 6x19M+WSC construction better for this rigging?
The 6x19M+WSC (Wire Strand Core) construction offers a superior strength-to-flexibility ratio compared to standard rigid ropes. This allows the sling to bend around loads more easily without kinking or structural damage, extending its service life.
Q2: Can I specify the Safety Factor for my order?
Yes. We understand different projects have different safety requirements. You can customize the safety factor (n) to be 2:1, 3:1, 4:1, or 5:1 when placing your order to ensure full compliance with your local lifting regulations.
Q3: How do I determine the correct length for my order?
Since these are custom-fabricated, you must specify the effective working length (pull-to-pull) required. Our manufacturing process ensures precise length control to avoid on-site mismatches.
Q4: Is the WLL listed the breaking strength?
No. The WLL (Working Load Limit) listed in the table is the maximum safe load for daily operation. The actual breaking strength is significantly higher, determined by the safety factor you choose (e.g., at n=5:1, breaking load is 5 times the WLL).
