8 AWG Copper Compression Lug (Long Barrel) | 2-Hole 1/4″ Stud, 1″ Spacing | NEBS Certified
PRODUCT PARAMETERS
Description

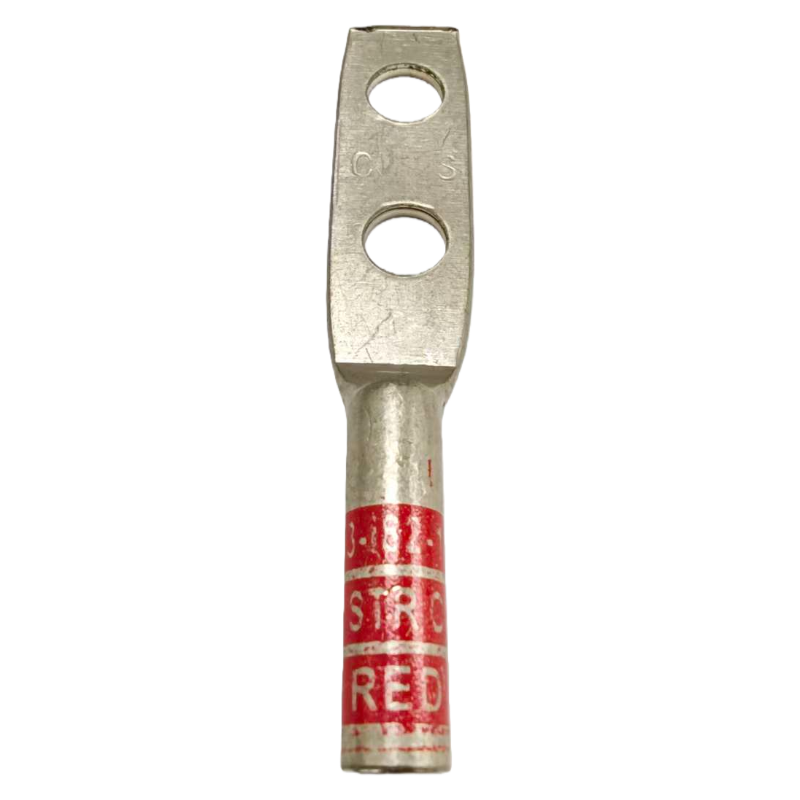

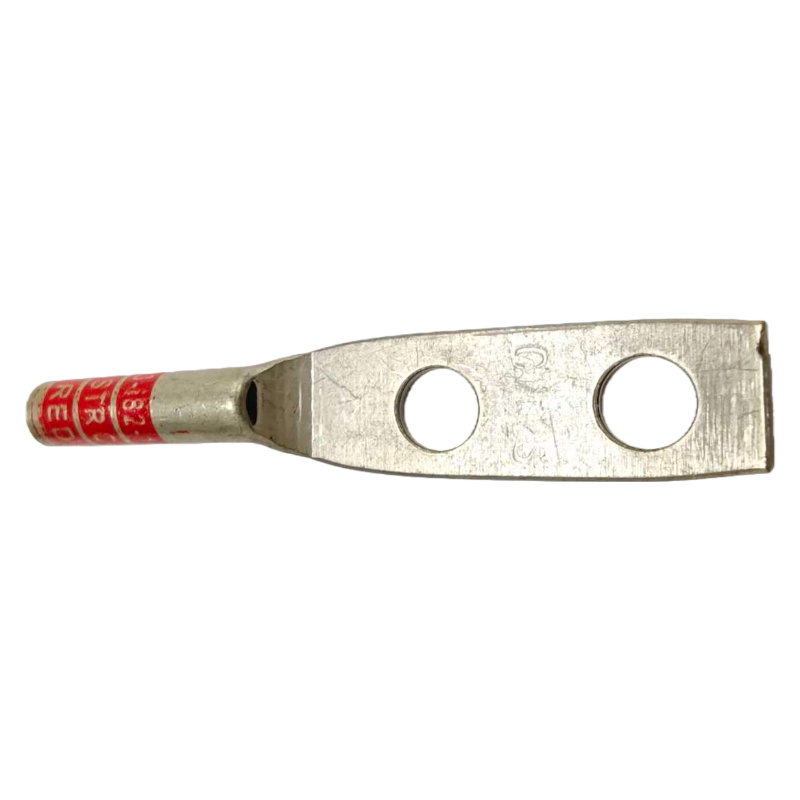

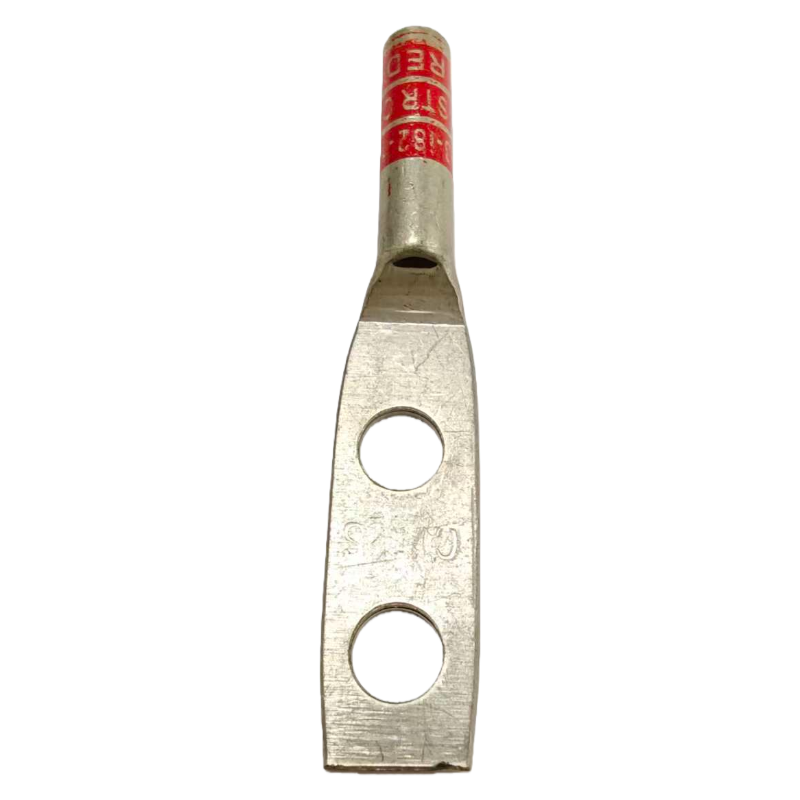

High-reliability 8 AWG copper compression lug featuring a long barrel for optimal crimp performance. Dual 1/4″ studs with 1-inch spacing. UL/CSA/NEBS Level 3 certified for mission-critical telecommunications and seismic applications.
Dimensions
Data Overview
| Specification | Metric Value | Imperial Value |
| Product Type | Compression Lug | Compression Lug |
| Base Material | Copper | Copper |
| Coating | Tin-Plated | Tin-Plated |
| Number of Stud Holes | 2 | 2 |
| Stud Hole Size | 6.4 mm | 1/4 in |
| Stud Hole Spacing | 25.4 mm | 1 in |
| Copper Conductor Size | 8 AWG | 8 AWG |
| Barrel Type | Long | Long |
| Overall Length | 64.3 mm | 2.53 in |
| Barrel Length | 17.8 mm | 0.7 in |
| Tongue Width | 12.2 mm | 0.48 in |
| Tongue Thickness | 1.8 mm | 0.07 in |
| Wire Strip Length | 19.1 mm | 3/4 in |
| Max Voltage Rating | 35 kV | 35 kV |
| Temperature Rating | 90 °C | 90 °C |
| Certifications | UL, CSA, ABS, NEBS Level 3 | UL, CSA, ABS, NEBS Level 3 |
| Installation Die (Panduit) | P21 | P21 |
| Installation Die (Burndy) | 49T | 49T |
| Installation Die (T&B) | 21 | 21 |
Product Features & Engineering Logic
| Key Area | Feature | Advantage | Benefit |
| Reliability & Strength | Long Barrel Design (0.7 in / 17.8 mm) with 3/4 in (19.1 mm) strip length. | Maximizes contact area and strain relief for the crimped connection. | Enhanced Durability: Provides superior pull-out strength and resistance to vibration and thermal cycling, crucial for high-stress environments. |
| Mission-Critical Safety | UL Listed, CSA Certified, and NEBS Level 3 Compliance. | Meets the highest standards for network equipment reliability and seismic/environmental robustness. | Reduced Downtime: Ideal for telecommunications, data centers, and critical infrastructure requiring guaranteed operational performance. |
| Installation Precision | Fixed 2-hole configuration with 1 inch (25.4 mm) standard spacing. | Ensures exact alignment with industry-standard bus bar and equipment terminals. | Simplified Mounting: Allows for quick, secure bolt-down connections without the need for on-site adjustment or modifications. |
| Durability & Material | Constructed from high-conductivity copper with a corrosion-resistant tin-plated finish. | Provides optimum current transfer efficiency while protecting against oxidation. | Optimal Electrical Flow: Ensures long-term, stable power transmission and minimizes resistive losses. |
FAQs
Q1: What is the significance of the “Long Barrel” design on this lug?
The long barrel (0.7 inches) provides a greater surface area for the crimp, which significantly enhances the connection’s mechanical strength, improves heat dissipation, and reduces resistance, resulting in a more robust and reliable connection, especially in high-vibration applications.
Q2: What does “NEBS Level 3” certification mean for this product?
NEBS (Network Equipment-Building System) Level 3 certification indicates that this lug has been rigorously tested for reliability in critical environments, including seismic tolerance, temperature extremes, and fire resistance. It is essential for telecommunications and data center installations.
Q3: How does the installation process differ from a standard barrel lug?
Due to the long barrel, the required wire strip length is longer: 3/4 inch (19.1 mm). This extended strip length ensures the conductor fills the entire barrel for maximum crimp integrity.
Q4: Is there an inspection window on this model?
No, this specific model features a fully enclosed long barrel design without an inspection window. Proper installation relies on using the specified 3/4 inch (19.1 mm) strip length and the correct crimping die (P21 / 49T / 21).
