Engineering Equivalence: A Technical Deep Dive into XLUIG vs. Panduit Lugs

Introduction: The Shift Toward Engineering Equivalence

Beyond Brand Premium: The Strategic Sourcing Reality

In the global industrial landscape, the reliance on legacy brands is evolving into a focus on Engineering Equivalence. For decades, Tier-1 brands like Panduit have dominated the market, often accompanied by significant brand premiums and rigid lead times. Today, strategic sourcing managers are shifting toward verified high-performance alternatives that offer the same technical integrity without the administrative overhead. XLUIG represents this new era, where manufacturing transparency and direct engineering support redefine value.

A comprehensive line of custom T2 lugs designed for Tier-1 electrical performance. XLUIG provides factory-direct flexibility and quick prototyping for global sourcing.

Defining “Tier-1 Parity” in Electrical Connectivity

True parity in electrical connectivity isn’t just about appearance; it’s a trifecta of material purity, dimensional precision, and strict regulatory compliance. To serve as a genuine Panduit equivalent T2 copper lug, a component must mirror the conductivity and mechanical resilience of the original. At XLUIG, we benchmark our production against these rigorous global standards to ensure seamless field performance.

Metallurgical Benchmarking: The T2 Seamless Copper Advantage

Conductivity Analysis: Meeting the 98% IACS Benchmark

Electrical efficiency is dictated by metallurgy. While standard market lugs may use recycled or lower-grade copper, XLUIG utilizes high-purity T2 seamless tubing. Our T2 Copper Lugs Technical Data confirms a conductivity rating of 98% IACS. This ensures lower thermal resistance and superior power transmission, directly matching the thermal stability of premium legacy products.

The Vacuum Annealing Process: Preventing Crimp Cracking

A secure connection requires a ductile barrel. XLUIG employs a specialized vacuum annealing process that restores the copper’s flexibility. This prevents micro-fracturing during high-pressure compression—a common failure point in inferior lugs. This metallurgical expertise also extends to our Bespoke CNC Machined Components, where material stress management is paramount.

Mechanical Interchangeability and Tooling Integration

Blueprint-to-Part Consistency: Achieving Zero-Revision Switching

The cost of switching suppliers is often hidden in engineering revisions. XLUIG eliminates this barrier through “Zero-Revision” compatibility. By verifying barrel lengths, wall thicknesses, and hole alignments against existing blueprints, we provide a Panduit to XLUIG Model Cross-Reference Guide that allows for immediate integration into existing power system designs.

Universal Compatibility with Standard Crimp Dies

XLUIG barrels are precision-engineered to fit standard industry tooling. Whether your team utilizes U-dies or 4-point nest dies from brands like Burndy or Greenlee, our lugs ensure a perfect crimp profile. This universal compatibility maintains the mechanical pull-out force required by international safety standards without necessitating new equipment investments.

Close-up of XLUIG LCD1-38D-E two-hole copper lugs with inspection window, showcasing seamless T2 copper construction.

Surface Engineering: Durability in Extreme Environments

Advanced Electro-Tin Plating and Salt Spray Resilience

Corrosion is the primary threat to long-term electrical reliability. Our advanced electro-tin plating protocol meets the 96-hour ASTM B117 salt spray benchmark. This level of protection ensures that XLUIG hardware excels in marine, offshore, and chemical processing environments. The same plating excellence is found in our Custom Industrial Bolts and Fasteners.

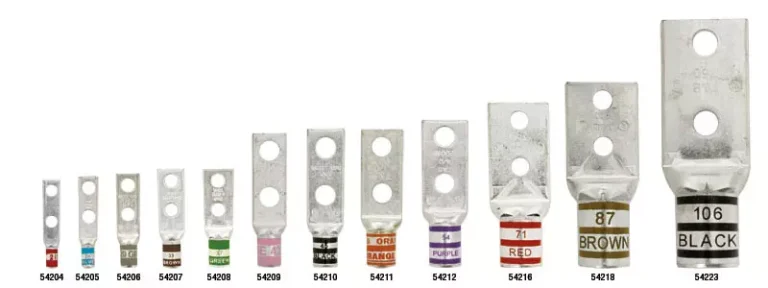

Poka-Yoke Identification: Solvent-Proof Color Coding

Safety in the field is enhanced through visual cues. XLUIG integrates a Poka-Yoke identification system using solvent-proof color coding. This mirrors the industry-standard die-selection logic, allowing installers to rapidly match wire sizes and dies. Explore our Color-Coded Compression Terminal Selection Tool to see the system in action.

The Logistics Edge: XLUIG’s 35-Day Supply Chain Protocol

Eliminating 90-Day Lead Times Through Vertical Integration

The legacy supply chain is often broken by 90-day wait periods. By leveraging the vertical integration of Kunshan Xinluan New Material, XLUIG bypasses these bottlenecks. Our 35-day accelerated protocol is made possible by in-house mold development and direct factory-to-client agility, solving the global shortage problem for critical infrastructure.

Low MOQ Flexibility for Bespoke Engineering Projects

We understand that innovation often happens in small batches. Unlike global conglomerates, XLUIG offers a 100 PCS MOQ for customized hardware. This flexibility is ideal for NPI (New Product Introduction) and specialized projects, including our Heavy-Duty Cable Pulling Net Sleeves.

Verification and Compliance: The Data Behind the Trust

Material Traceability and UL/IEC Standard Alignment

Transparency is our standard. Every batch of XLUIG terminals is accompanied by a Material Test Certificate (MTC) and load test protocols. We align with IEC 61238-1 and UL 486 requirements, providing the documented proof necessary for compliance audits and high-level engineering approval.

Conclusion: Optimizing Your Infrastructure without Compromise

Switching to XLUIG is more than a cost-saving measure; it is a data-driven strategic decision. By choosing Engineering Equivalence, you gain Tier-1 performance, superior lead times, and the technical support of a dedicated manufacturer.
