معايير المنتج

  • Model: SC50-8

  • Conductor Size: 1/0 A.W.G. (50 mm²)

  • Stud Hole Size: M8 (8.4 mm)

  • Material: High-Conductivity Seamless Copper

  • Finish: Electro-Tin Plated for anti-oxidation

  • Barrel Design: Standard Barrel with Beveled Entry for easy wire insertion

  • Maximum Voltage: Up to 35 kV (UL Standard performance)

  • Operating Temperature: Rated for up to 90°C

الوصف
الأسئلة الشائعة
اطلب عرض سعر

الوصف

Industrial-grade SC50-8 tinned copper lug for 1/0 AWG (50mm²) cables. Features an 8.4mm (M8) stud hole, perfect for high-current battery and inverter connections. Corrosion-resistant tin plating ensures long-term reliability in marine and solar systems.

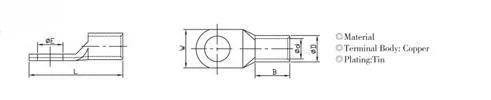

الأبعاد

نظرة عامة على البيانات

Item No.ΦE (mm) Stud Holeφd (mm) Internal Dia.ΦD (mm) External Dia.W (mm) Tongue WidthL (mm) Total LengthWire Range (mm²/AWG)
SC50-66.59.512.417.84550 mm² (1/0)
SC50-88.49.512.417.84550 mm² (1/0)
SC50-1010.59.512.417.84550 mm² (1/0)
SC50-12139.512.4204550 mm² (1/0)
SC50-14159.512.4224650 mm² (1/0)
SC50-16179.512.4244750 mm² (1/0)

cURL Too many subrequests.

cURL Too many subrequests.الميزةالميزة التنافسيةالفائدة
Connection PrecisionCustom-fit for 50mm² (1/0 AWG) wire with an 8.4mm (M8) bolt hole.Ensures a low-resistance interface and maximum surface contact for standard high-power battery terminals.Power Safety: Prevents overheating and energy loss in high-demand inverter and solar storage systems.
Marine-Grade ProtectionPremium Tin-Plated finish over a seamless copper body.Provides a robust barrier against humidity, salt spray, and acid corrosion compared to bare copper.Extreme Longevity: Maintains high conductivity in harsh environments like coastal marine applications or outdoor RV setups.
Installation EfficiencyBeveled barrel entry design with a 9.5 mm internal diameter.Guides stranded cables smoothly into the barrel without fraying or loose wire strands.Professional Termination: cURL Too many subrequests.
cURL Too many subrequests.cURL Too many subrequests. seamless high-conductivity copper tube.cURL Too many subrequests.cURL Too many subrequests. cURL Too many subrequests.

الأسئلة الشائعةs

cURL Too many subrequests.

cURL Too many subrequests.

cURL Too many subrequests.

cURL Too many subrequests. cURL Too many subrequests. cURL Too many subrequests.

cURL Too many subrequests.

cURL Too many subrequests.
